TUNNEL ASSEMBLY - X951660 (4932833283A006)

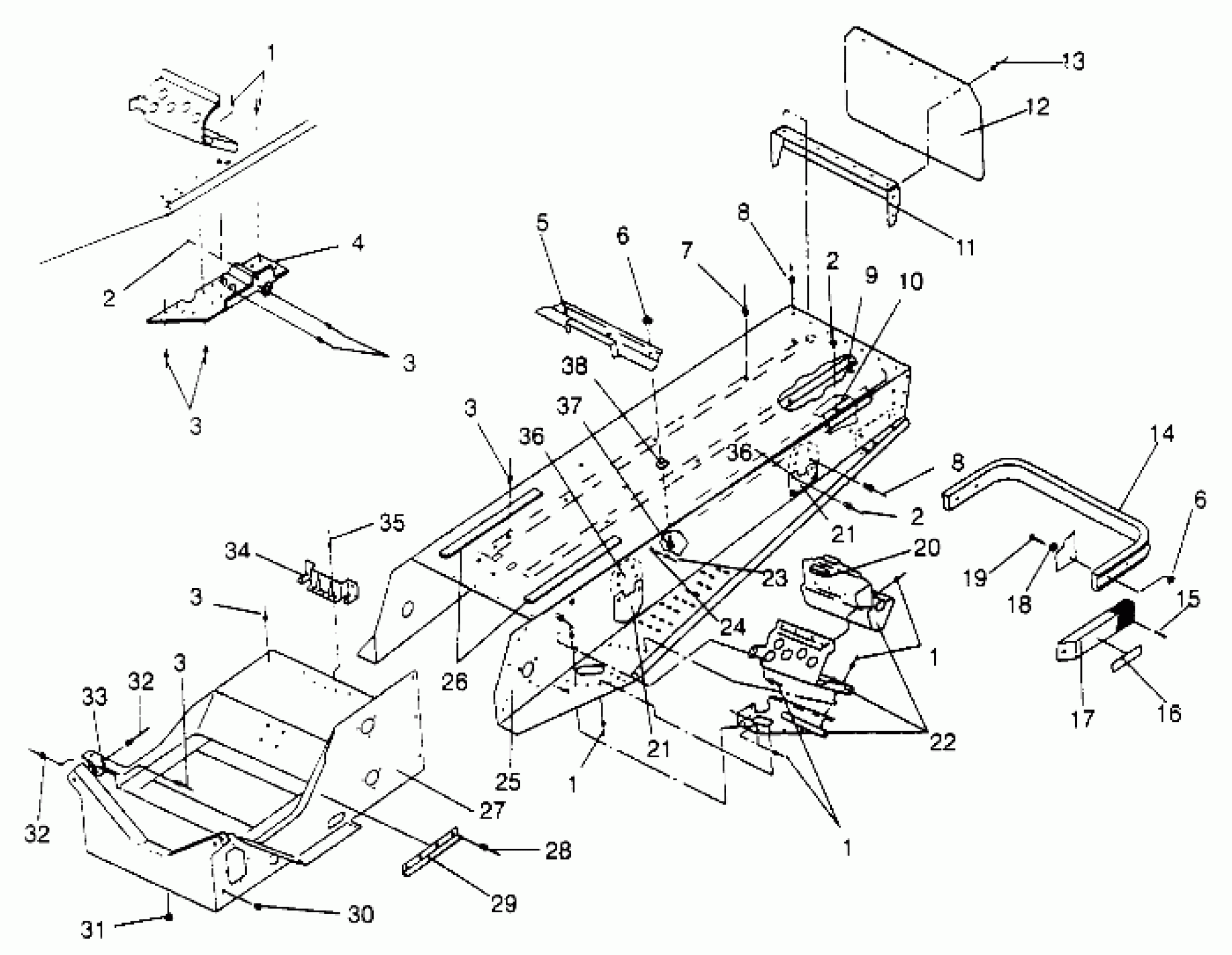

Polaris 440 XCR SP - X951660 TUNNEL ASSEMBLY - X951660 (4932833283A006) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,(50)
7661825
$1.49
2
RIVET,(50)
7661825
$1.49
2
RIVET,(50)
7661825
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
4
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
5
STRAP,GASTANK,BLK
1011732-067
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
6
NUT-LOCK(10)
7542122
$1.49
7
RIVET,3/16X.402(50)
7621432
$1.49
8
RIVET ,(50)
7661829
Unavailable
8
RIVET ,(50)
7661829
Unavailable
9
MOUNT,WEAR STRIP
5131009
Unavailable
10
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
11
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
12
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
13
POP RIVET(50)
7621418
$1.49
14
BUMPER,REAR,BLK.
5224334-067
Unavailable
15
SCREW(10)
7511863
$1.99
16
REFLECTOR RED
2670070
$9.91
17
CAP, BUMPER, BLK.
5430930-070
Unavailable
18
WASHER(10)
7558301
$1.49
19
BOLT(10)
7512240
$3.99
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
PLATE,OUT.SUSP,BLK.
5211603-067
Unavailable
21
PLATE,OUT.SUSP,BLK.
5211603-067
Unavailable
22
FOOTREST,LH,BLK.
1012263
Unavailable
22
FOOTREST,RH,BLK.
1012264
Unavailable
23
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
24
SNAP-MALE(10)
7080227
Unavailable
25
TUNNEL,(94-XCR SP) (Incl. 11,21,36)
1012292
$405.94
26
PAD-GAS TANK
5810063
$4.95
27
BULKHEAD
1012285-067
$396.83
28
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
29
GUARD,ADAPTER,DRIVE
5240441
Unavailable
30
PLUG, HOLE(10)
7080416
$5.65
31
PLUG-HOLE
7080398
$4.84
32
RIVET(50)
7621452
$1.49
32
RIVET(50)
7621452
$1.49
33
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
34
BRKT,GASTANK,WELD.
1011733-067
$19.73
35
RIVET(50)
7621301
$3.99
36
PLATE,INN.SUSP,BLK.
5211604-067
Unavailable
36
PLATE,INN.SUSP,BLK.
5211604-067
Unavailable
37
BOLT(10)
7512193
$2.39
38
SPEED NUT(10)
7670021
$6.99
