SUSPENSION ASSEMBLY 440 XCR SP X951660 (4932833283B011)

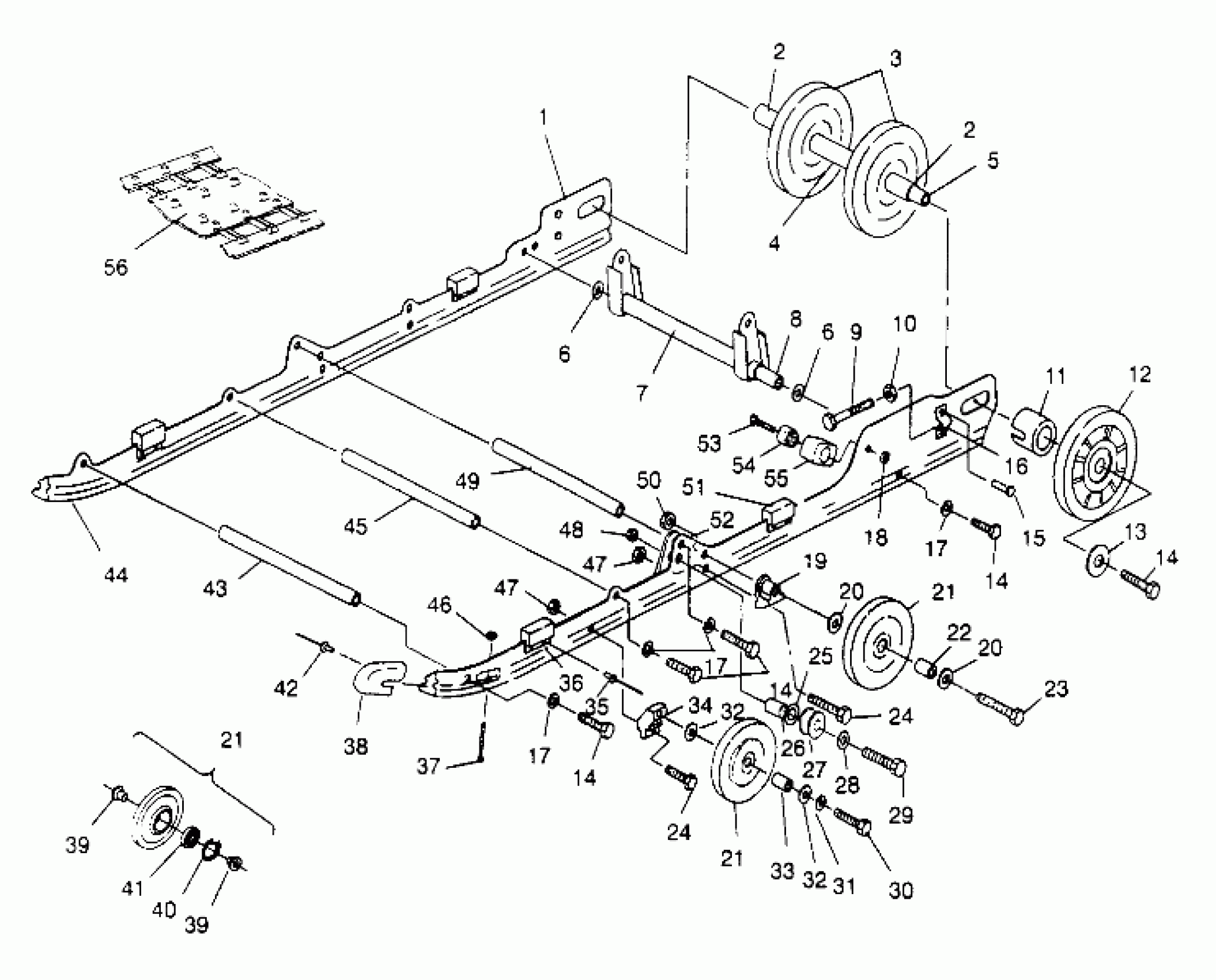

Polaris 440 XCR SP - X951660 SUSPENSION ASSEMBLY 440 XCR SP X951660 (4932833283B011) Diagram
#
1
RAIL ASM,LH
1540933
$199.99
1
RAIL ASM,RH
1540934
$226.99
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER CTR IDLER
5010168
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
WASHER(10)
7555893
$1.49
6
WASHER(10)
7555893
$1.49
7
ARM,REAR PIVOT
1540931-067
Unavailable
8
SHAFT,R.TORQUE ARM
5020786
$17.14
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
SPACER-IDLER-OUTER
5332641
Unavailable
12
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
13
WASHER(10) Substituted by 7556130
7571629
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
RIVET,(50)
7621501
$2.39
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT LOCK(10)
7542403
$3.99
19
SPACER
5630399
$11.99
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
21
WHEEL, IDLER
1543018
$56.65
21
WHEEL, IDLER
1543018
$56.65
21
WHEEL, IDLER
1543018
$56.65
22
SPACER, WHEEL
5333116
$7.99
23
BOLT(10)
7512538
$6.39
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
WASHER,RUBBER
5410436
$1.59
26
Spacer
5332787
Unavailable
27
ROLLER-SPRING
5430540
Unavailable
28
WASHER(10)
7555743
Unavailable
29
BOLT Substituted by 7515491
7515433
$1.59
30
BOLT(10)
7512659
$7.99
31
LOCK WASHER(10)
7553201
$3.99
32
WASHER(10)
7555804
$3.99
32
WASHER(10)
7555804
$3.99
33
SPACER
5332786
$7.99
34
BRACKET,BOGIE WHEEL
5130570
$48.56
35
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
36
REINF., BUMPER
5222629
$13.75
37
SCREW(10)
7515153
$3.99
38
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
39
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
39
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
40
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
41
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
42
RIVET(50)
7621435
$1.49
43
SHAFT,PIVOT ARM
5020723
$29.99
44
SLIDER,BLACK(2)
5521320
Unavailable
45
SHAFT,PIVOT ARM
5020724
$29.99
46
NUT-LOCK(10)
7542122
$1.49
47
NUT-LOCK(10)
7542439
$1.49
47
NUT-LOCK(10)
7542439
$1.49
48
NUT LOCK(10)
7542411
$3.19
49
SHAFT
5020810
$15.99
50
NUT, NYLOCK(10)
7542525
$4.79
51
BUMPER, RAIL
5810554
$7.27
52
BRACE,RH,F.TORQUE ARM
5240964-067
$15.67
52
BRACE,LH,F.TORQUE ARM
5241030-067
$19.03
53
BOLT(10)
7515537
$10.99
54
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
55
BUMPER,F.PIVOT ARM
5410925
$12.94
56
TRACK,121",CAMO.
5410935
Unavailable
