STEERING ASSEMBLY 440 XCR SP X951660 (4932833283B005)

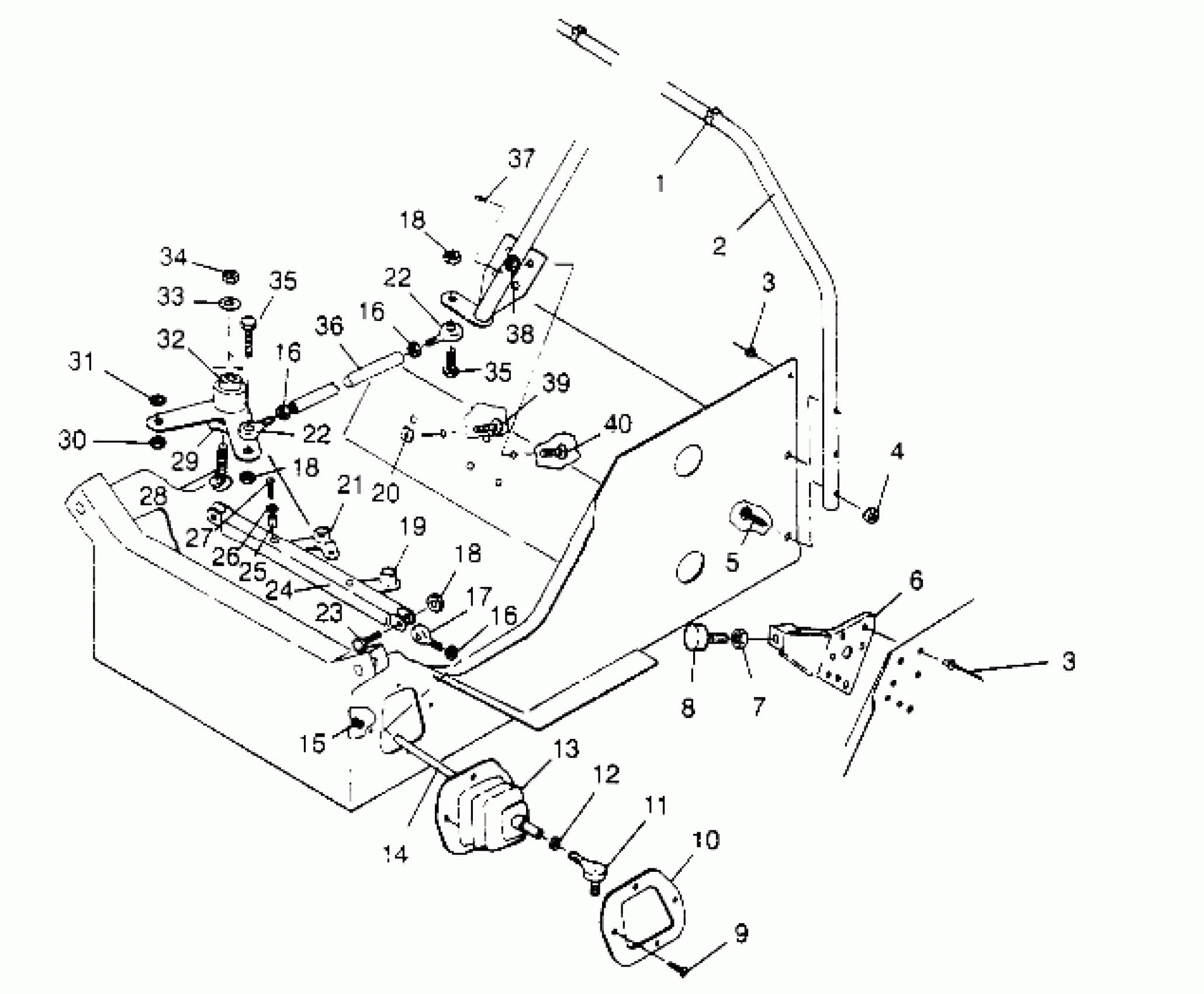

Polaris 440 XCR SP - X951660 STEERING ASSEMBLY 440 XCR SP X951660 (4932833283B005) Diagram
#
1
CLIP(10)
7080278
$2.63
2
HOOP,STEERING Substituted by 1012515-067
1012372-067
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
NUT-LOCK(10)
7542122
$1.49
5
BOLT-CARRIAGE(10)
7512275
$3.99
6
LIMITER,TORQUE,BLK.
1012295-067
$32.22
7
NUT, JAM(10)
7542432
$3.99
8
MT,RUBBER,TORQUE STOP
3110041
Unavailable
9
SCREW,W/LOCKWASHER(10)
7512081
Unavailable
10
PLATE,BOOT
5211574-067
Unavailable
11
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
12
NUT HEX(10)
7542401
$2.39
13
BOOT,TIE ROD
5410954
Unavailable
14
TIEROD,BLK.
5020794-067
Unavailable
15
INSERT, BRASS(10)
7541932
$3.67
16
NUT
7542424
$1.49
16
NUT
7542424
$1.49
16
NUT
7542424
$1.49
17
ROD END,LH Substituted by 7060164
7060124
$48.56
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
IDLER ARM ASM.
1822242
$26.38
20
SPEED NUT(10)
7670021
$6.99
21
ARM,PITMAN ASM.
1822241
Unavailable
22
ROD END,LH Substituted by 7060164
7060124
$48.56
22
ROD END RH Substituted by 7060165
7060125
$48.56
22
ROD END,LH Substituted by 7060164
7060124
$48.56
22
ROD END RH Substituted by 7060165
7060125
$48.56
23
BOLT(10)
7515528
$8.79
24
RACK ASM,STRG.
1822245
$74.39
25
SPACER
5010342
$15.43
26
WSHR-.813X.406X.105-Y
7555832
$2.39
27
BOLT(10)
7515415
$1.49
28
BOLT(10)
7512551
Unavailable
29
WASHER,WAVE(10)
7555735
$3.99
30
NUT, NYLOCK(10)
7542525
$4.79
31
O-RING
5410955
Unavailable
32
SPACER
5010341
Unavailable
33
WASHER(10)
7555883
$3.99
34
NUT, LOCK,(10)
7542503
$10.39
35
BOLT(10)
7512404
$3.99
35
BOLT(10)
7512404
$3.99
36
ROD,DRAG LINK
5333321
Unavailable
37
FITTING,LUB/VEN(10)
7080561
$4.79
38
NUT-5/16-18 NYLOK-Y
7542324
$1.49
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
BOLT(10) Substituted by 7512377
7512394
Unavailable
