SEAT and GAS TANK ASSEMBLY - X951660 (4932833283A007)

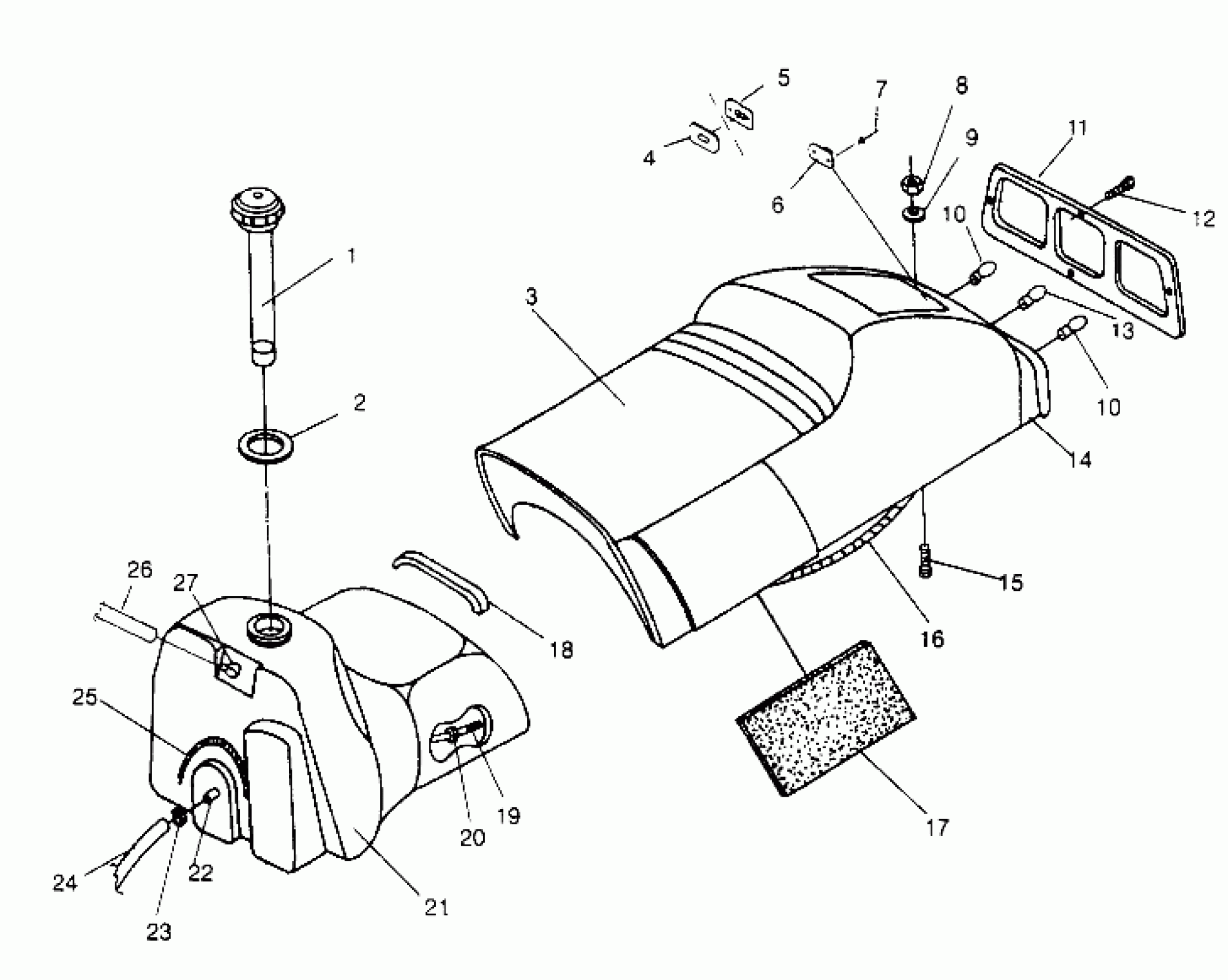

Polaris 440 XCR SP - X951660 SEAT and GAS TANK ASSEMBLY - X951660 (4932833283A007) Diagram
#
Description
Price
1
CAP,GAS,W/GAUGE
2511247
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM. (Incl. 13 -16)
2681806
Unavailable
3
COVER,SEAT,(440XCR)
2681807
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621337
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER,TOOTHED,DISH(10)
7571630
Unavailable
10
BULB,TAILLIGHT(10)
4030024
$4.84
10
BULB,TAILLIGHT(10)
4030024
$4.84
11
LENS,TAILLIGHT
5430423
Unavailable
12
SCREW(10)
7511840
Unavailable
13
Bulb, Brakelight
4030045
Unavailable
14
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
15
BOLT(10)
7512193
$2.39
16
Harness, Taillight
2460399
Unavailable
17
FOAM,SEAT PAD
5431981
Unavailable
18
CUSHION,TANK H.D.
5420126
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
RING, COMPRESSION(10)
7080402
$1.60
21
FUELTANK ASM. Substituted by 2200765
2511236
Unavailable
22
FITTING - OUTLET(10)
7052023
$24.99
23
HOSE CLAMP, RED (Red)
7080003
$1.49
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
SPRING,TANK,(10)
7042020
$13.75
26
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
27
FITTING,90 DEG,1/8,(10)
7052095
$4.79
