REAR TORQUE ARM ASSEMBLY 440 XCR SP X951660 (4932833283B014)

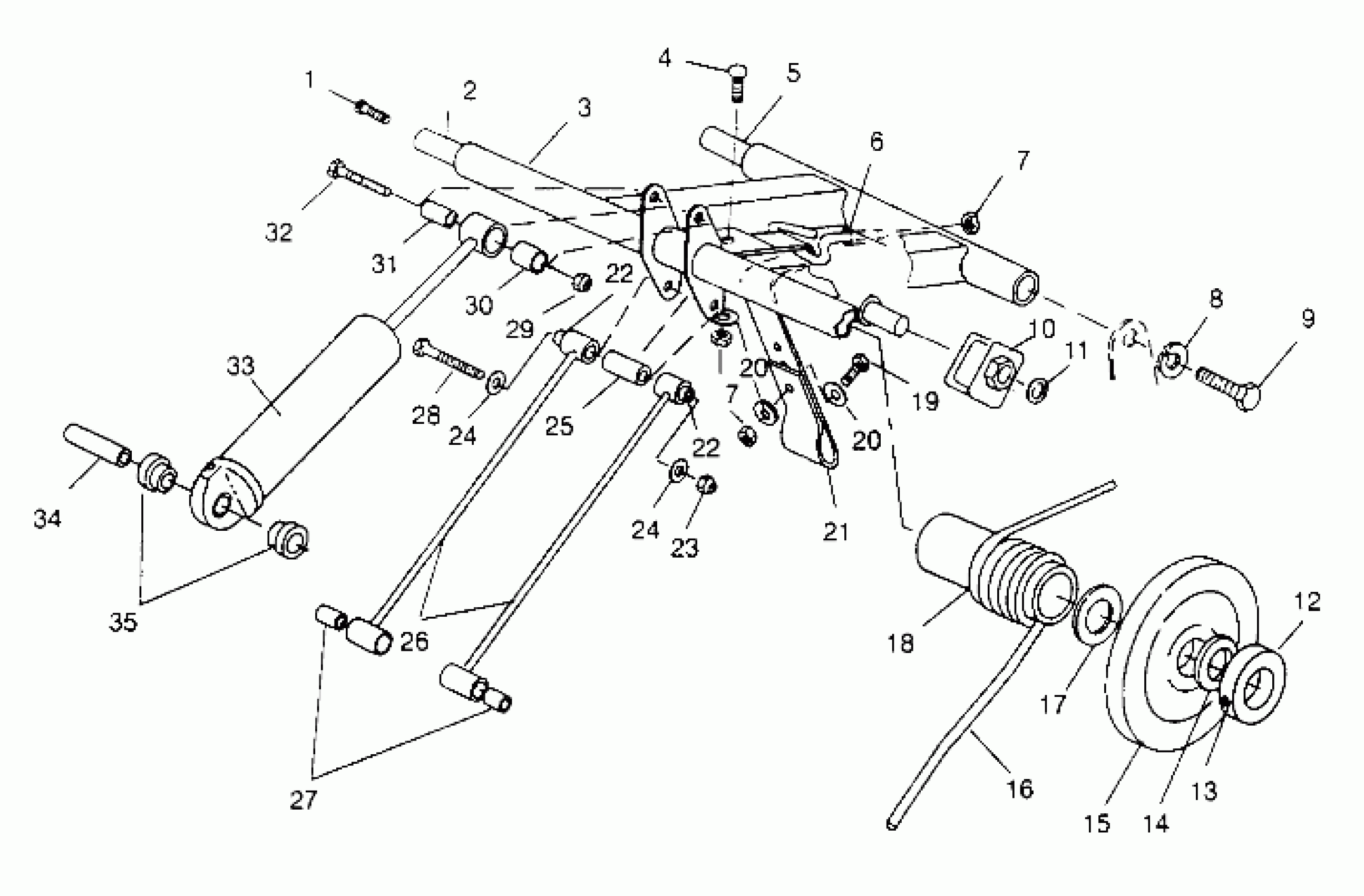

Polaris 440 XCR SP - X951660 REAR TORQUE ARM ASSEMBLY 440 XCR SP X951660 (4932833283B014) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT, MTG, REAR
5020570
Unavailable
3
ARM,R.TORQUE,BLK.
1540930-067
Unavailable
4
BOLT(10)
7512377
$4.79
5
SHAFT,R.TORQUE ARM
5020727
Unavailable
6
BOLT,EYE
7010050
Unavailable
7
NUT LOCK(10)
7542321
$1.49
7
NUT LOCK(10)
7542321
$1.49
8
WASHER(10)
7552603
$1.49
9
BOLT(10)
7515526
$1.19
10
ROLLER, SPRING ADJ.
5431168
Unavailable
11
CLIP-PUSH ON
7080394
$2.39
12
COLLAR-BRG. LOCK
5010155
Unavailable
13
SCREW-SET(10)
7512257
$3.99
14
WASHER-WAVE(10)
7571605
$6.39
15
Wheel, Carrier
1543023
Unavailable
16
SPRING,LH,TOR.(.406/77DEG.) (Soft)
7041415-067
Unavailable
16
SPRING,RH,TOR.(.406/77DEG.) (Soft)
7041416-067
Unavailable
16
SPRING,LH,TOR.(.421/77DEG) (.421) Std.
7041417-067
$72.44
16
SPRING,RH,TOR.(.421/77DEG) (.421) Std.
7041418-067
$61.10
16
SPRING,LH,TOR.(.437/77DEG) (Firm)
7041419-067
Unavailable
16
SPRING,RH,TOR.(.437/77DEG) (Firm)
7041420-067
$61.10
17
WASHER SPECIAL(10)
7556509
$1.59
18
Tube, Spring
5521234
Unavailable
19
BOLT(10)
7515307
$3.99
20
WASHER(10)
7555716
$1.59
20
WASHER(10)
7555716
$1.59
21
STRAP,R.LIMITER
5410985
$15.67
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
NUT FLEX LOC,(10)
7542402
$6.39
24
WASHER(10) Substituted by 7555806
7555720
$0.79
24
WASHER(10) Substituted by 7555806
7555720
$0.79
25
SPACER,R.PIVOT ARM
5333026
$3.03
26
ROD,SHOCK,BLK.
1540967-067
$9.91
27
Spacer
5333028
$1.59
28
SCREW(10)
7512463
$5.43
29
NUT FLEX-LOC(10)
7542303
$6.39
30
BUSHING
5430537
$3.99
31
BUSHING,R.SHOCK
5333030
Unavailable
32
BOLT(10)
7512329
$3.99
33
SHOCK,R.TRACK,FOX
7041403
Unavailable
34
BUSHING, 1.40
5020657
$15.99
35
BUSHING,SHOCK,.340 NOTE: For Fox Shock replacement parts see pages C6-C8.
5431542
Unavailable
