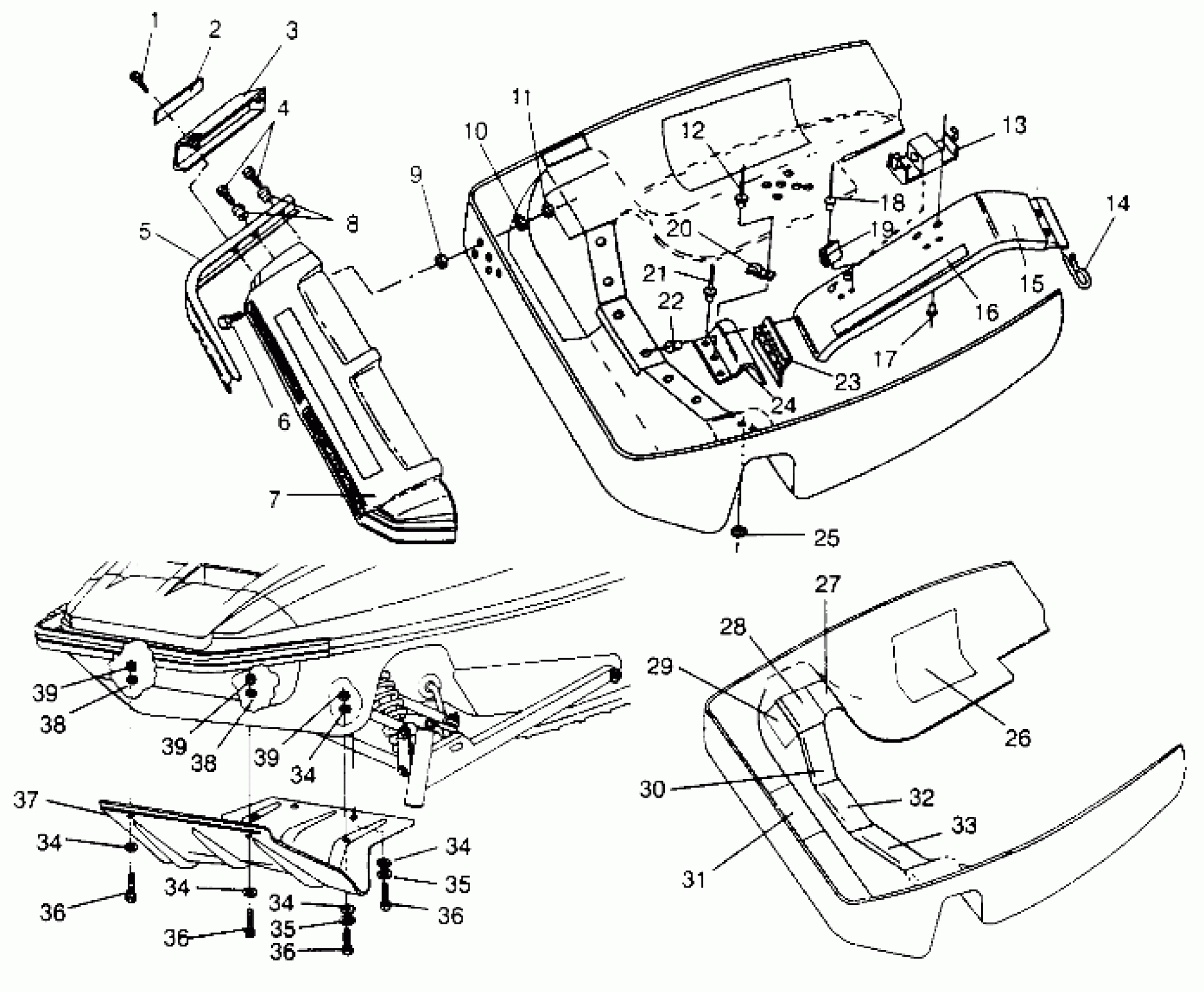

Polaris 440 XCR SP - X951660 NOSEPAN - X951660 (4932833283A009) Diagram
#
1
SCREW(10)
7511863
$1.99
2
EMBLEM,POLARIS,RED
5431876-136
Unavailable
3
CAP,BUMPER,WHITE
5430930-133
Unavailable
4
SCREW(10)
7512102
$3.19
5
BUMPER.FR,BRT.WHITE Substituted by 5224517-133
5224333-133
$154.99
6
SCREW(10)
7512279
$1.49
7
NOSECONE,(S'SPORT)
5430931-1038
Unavailable
8
INSERT,(10)
7542143
$5.59
9
CAP, TOWER
5020517
$16.49
10
WASHER(10)
7558301
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
RIVET(50)
7621435
$1.49
13
CADDY,SPARKPLUG
5431761
$11.59
14
PIN,RETAINING,(10)
7080216
$9.70
15
GUARD, CLUTCH
5240567
Unavailable
16
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
17
RIVET(50)
7621337
$1.49
18
RIVET(50)
7621429
$1.49
19
CLIP,BELT RETAINER
5222769
$8.79
20
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
21
POP RIVET(50)
7621402
$1.49
22
RIVET, POP(50)
7621330
$1.49
23
HINGE
5210728
Unavailable
24
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
26
TAPE, FOIL(11X12)
5810465
$12.30
27
FOIL,TAPE,REAR,SHOCKTOWER
5810995
Unavailable
28
FOIL,TAPE,TOP,SHOCKTOWER
5810994
Unavailable
29
FOIL,TAPE,RH SHOCKTOWER
5810964
Unavailable
30
TAPE,FOIL,PAN#3
5810493
Unavailable
31
TAPE, FOIL,(5X12)
5810466
Unavailable
32
TAPE,FOIL,PAN#5
5810495
$5.65
33
TAPE,FOIL,PAN#4
5810494
Unavailable
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
35
WASHER(10)
7552605
$5.27
35
WASHER(10)
7552605
$5.27
36
BOLT(10)
7512103
$3.19
36
BOLT(10)
7512103
$3.19
36
BOLT(10)
7512103
$3.19
36
BOLT(10)
7512103
$3.19
37
SKID PAN, BLK. Substituted by 2871426-070 ((Black)
2871148
Unavailable
38
WASHER(10)
7558221
$2.39
38
WASHER(10)
7558221
$2.39
39
NUT(10)
7542124
Unavailable
39
NUT(10)
7542124
Unavailable
39
NUT(10)
7542124
Unavailable
