HOOD ASSEMBLY - X951660 (4932833283A010)

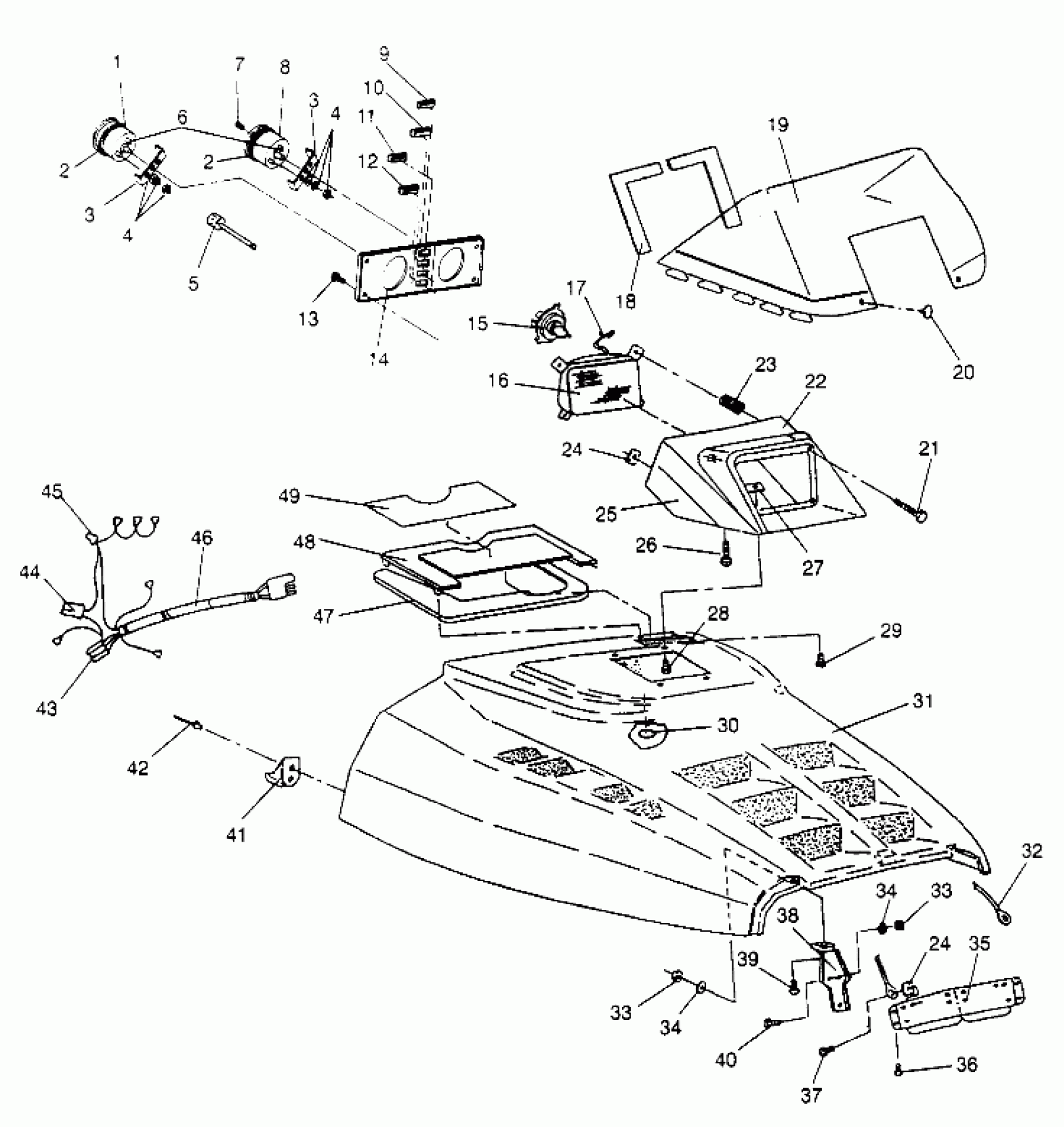

Polaris 440 XCR SP - X951660 HOOD ASSEMBLY - X951660 (4932833283A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACHOMETER,BACKLIT(2P) (Incl. 3,4)
3280149
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
3
BRKT,SPEEDO/TACH
3280153
Unavailable
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
5
CABLE,SPEEDO.
3280094
$60.70
6
BULB,TAILLIGHT(10)
4030024
$4.84
7
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
8
BULB TAILLIGHT(10)
4030015
$4.03
8
SPEEDOMETER,BACKLIT (Incl. 3,4)
3280148
Unavailable
9
INDICATOR'TEMP'WARN.
4040011
$32.37
10
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
11
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
12
INDICATOR,'ACC'WARN.
4040014
Unavailable
13
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
14
BEZEL, INST.
5430924
Unavailable
15
BULB,QUARTZ.H/L,INDY
2870448
$24.99
16
HEADLIGHT ASM.
4032040
Unavailable
17
RETAINER,H/L BULB
4032063
Unavailable
18
PAD, W/S, LH
5810414
Unavailable
18
PAD, W/S
5810415
Unavailable
19
WINDSHIELD,MID.HT,RACE [No Longer Available]
2871055
Unavailable
20
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
21
SCREW, ADJ.(10)
4032003
Unavailable
22
HSG,INST.TOP,WHITE
5430923-133
Unavailable
23
SPRING-ADJ
4032002
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
26
SCREW(10)
7512009
Unavailable
27
NUT, SPEED(10)
7670057
$1.49
28
SCREW, SEMS(10)
7512283
$3.99
29
SCREW(10)
7511840
Unavailable
30
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
31
HOOD,ASM(XCR 440)
2631731-133
$599.99
32
CABLE,HD.RETAINER
7080360
$24.27
33
NUT-LOCK(10)
7542122
$1.49
33
NUT-LOCK(10)
7542122
$1.49
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
PLATE,RE-INF.,(HD.)
5222105
$49.51
36
SCREW(10)
7511861
Unavailable
37
SCREW(10)
7511989
Unavailable
38
HINGE ASM,HD,BLK
2635005-067
$16.67
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
BOLT(10)
7512193
$2.39
41
CUP, HOOD LATCH,(10)
5430733
$4.84
42
RIVET(50)
7621334
$1.49
43
HOUSING
4020052
Unavailable
44
Housing
4020115
$1.59
45
HOUSING
4020114
Unavailable
46
HARNESS,HEADLIGHT
2460382
Unavailable
47
SEAL, INTAKE
5810597
Unavailable
48
PANEL ASM,INTAKE,BR,WHITE Substituted by 2620091-133 (Incl. 49)
2620078-133
Unavailable
49
DECAL,DASH WARNING Substituted by 7075457
7074883
Unavailable
