FRONT TORQUE ARM ASSEMBLY 440 XCR SP X951660 (4932833283B013)

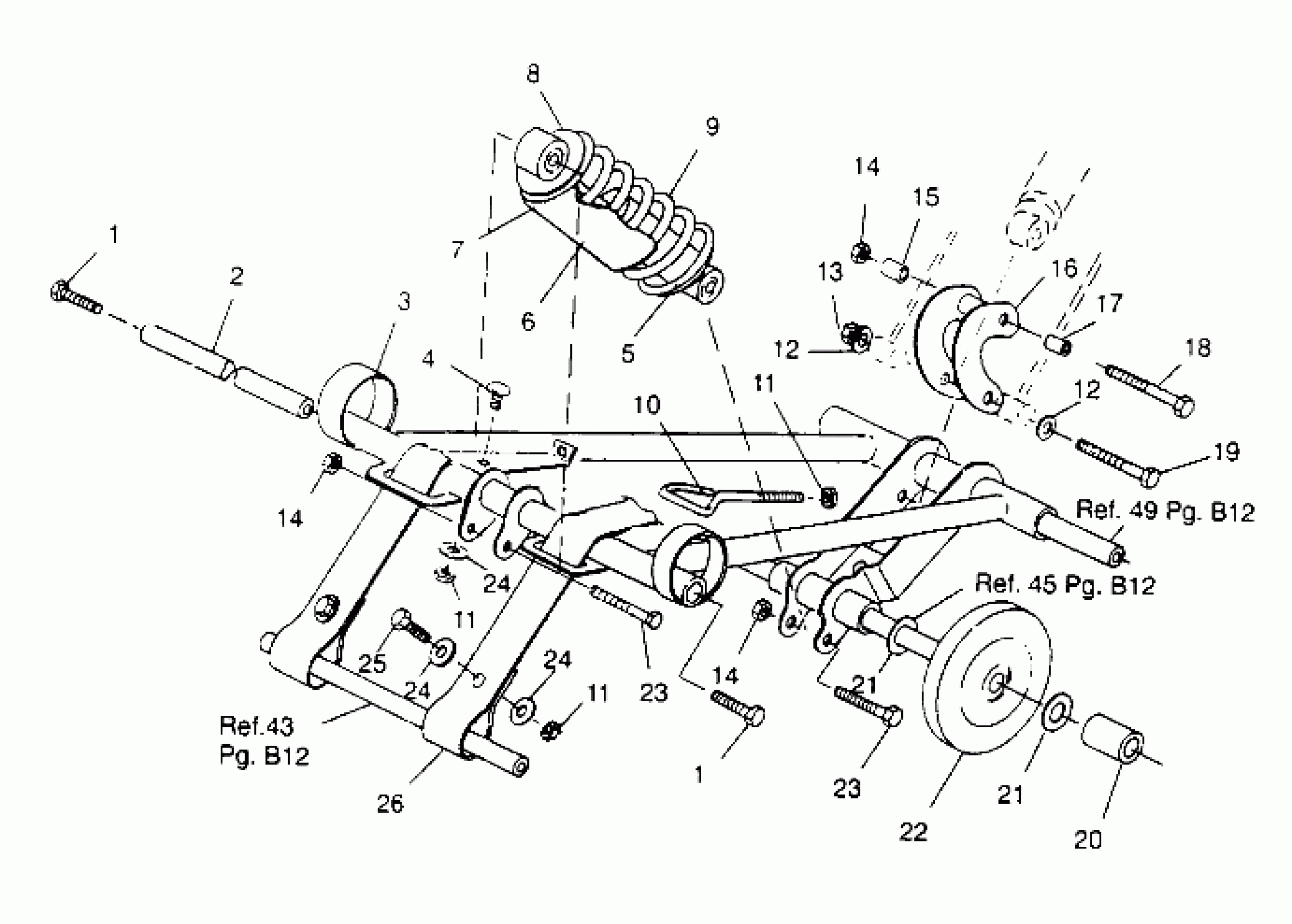

Polaris 440 XCR SP - X951660 FRONT TORQUE ARM ASSEMBLY 440 XCR SP X951660 (4932833283B013) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,MOUNTING
5010149
Unavailable
3
ARM,FR.TORQUE,BLK.
1540932-067
Unavailable
4
BOLT(10)
7512377
$4.79
5
RETAINER, SPRING BODY
5020617
Unavailable
6
SHIELD-SPRING
5430671
$24.27
7
SHOCK,FR.TRACK,FOX
7041402
Unavailable
8
RETAINER,SPRING,SLOTTED
5020618
$24.99
9
SPRING,BLACK,COMP.
7041253-067
$95.22
10
BOLT,EYE
7010050
Unavailable
11
NUT LOCK(10)
7542321
$1.49
11
NUT LOCK(10)
7542321
$1.49
11
NUT LOCK(10)
7542321
$1.49
12
WASHER(10) Substituted by 7555806
7555720
$0.79
12
WASHER(10) Substituted by 7555806
7555720
$0.79
13
NUT FLEX LOC,(10)
7542402
$6.39
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
15
BUSHING,PIVOT TUBE
5020561
$1.59
16
ARM,SHOCK
1540942-067
Unavailable
17
Spacer
5333028
$1.59
18
BOLT(10)
7515438
$4.79
19
BOLT(10)
7515525
Unavailable
20
SPACER, OUTER
5332784
Unavailable
21
MACHINERY BUSHING(10)
7556301
$3.19
21
MACHINERY BUSHING(10)
7556301
$3.19
22
Asm., Bogie Wheel (See Pg. A23, Ref. 21)
-------
Unavailable
23
BOLT(10)
7515415
$1.49
23
BOLT(10)
7515415
$1.49
24
WASHER(10)
7555716
$1.59
24
WASHER(10)
7555716
$1.59
24
WASHER(10)
7555716
$1.59
25
BOLT(10)
7515307
$3.99
26
STRAP,FR.LIMITER
5410986
Unavailable
