FRONT SUSPENSION and SKI 440 XCR SP X951660 (4932833283B002)

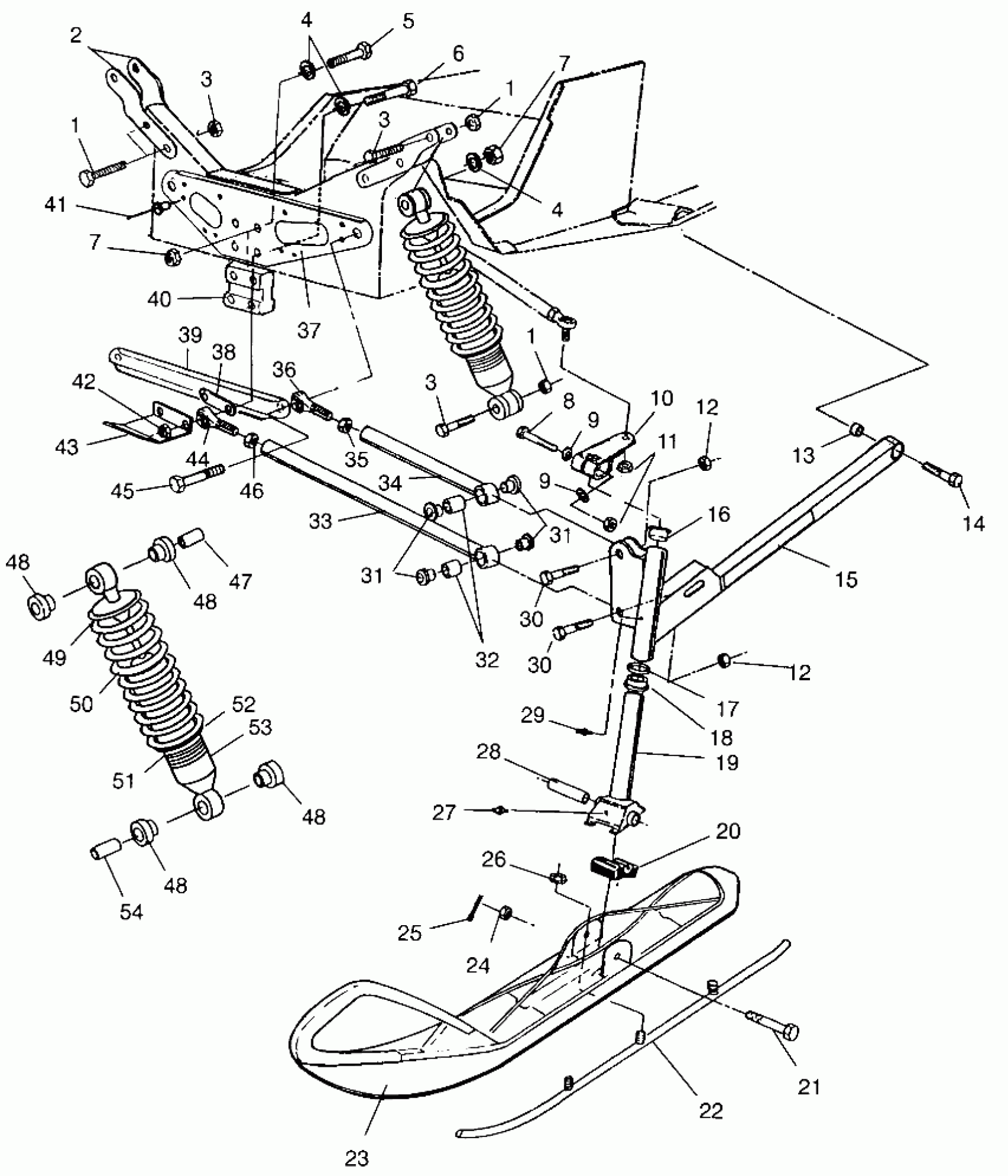

Polaris 440 XCR SP - X951660 FRONT SUSPENSION and SKI 440 XCR SP X951660 (4932833283B002) Diagram
#
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
2
MT,RH,SHOCK EXT.BLK.
1012053-067
Unavailable
2
MT,LH,SHOCK EXT.BLK.
1012052-067
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10) Substituted by 7512515
7512545
Unavailable
6
BOLT(10)
7512678
$19.99
7
NUT, LOCK,(10)
7542503
$10.39
7
NUT, LOCK,(10)
7542503
$10.39
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
9
WASHER(10) Substituted by 7555832
7555851
Unavailable
9
WASHER(10) Substituted by 7555832
7555851
Unavailable
10
ARM,STEERING
5241137-067
$23.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
12
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
13
SPACER
5010347
Unavailable
14
BOLT(10)
7512515
$3.19
15
ARM,TRLG,LH.
1822227
$185.99
15
ARM,TRLG,RH.
1822228
$195.99
16
BUSHING-FLANGE
3573909
$2.39
17
WASHER SPECIAL(10)
7556509
$1.59
18
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
19
SPINDLE,BLK,HARDENED
6230075-067
Unavailable
20
STOP, RUBBER
5521276
Unavailable
21
BOLT(10)
7515462
$8.79
22
SKAG,CARBIDE,(CURVED SKI)
1820412
Unavailable
23
SKI ASM. Substituted by 1820427
1820404
Unavailable
24
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
25
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
28
BUSHING,PIVOT,(10)
5010158
$19.99
29
ZERK,FITTING,THREADED(10)
7080433
$1.49
30
BOLT(10) Substituted by 7515540
7515492
$4.62
30
BOLT(10) Substituted by 7515540
7515492
$4.62
31
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
31
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
32
BUSHING-RADIUS ROD,(10)
5010127
$7.99
33
ROD,LOW RADIUS
1822238-067
Unavailable
34
ROD,RADIUS,UPPER
1822236-067
$35.08
35
NUT JAM(10)
7542520
$2.39
36
ROD END, RH Substituted by 7061010
7060155
Unavailable
37
BRACE,LOW.RAD.ROD
5240936-067
$74.59
38
STRAP,SPACER BOTTOM
5211345
$12.99
39
BRACE,UP.RAD.ROD Substituted by 5241705-067
5240912-067
Unavailable
40
BLOCK,RADIUS ROD
5131141
$25.86
41
RIVET-3/16-.090-.290
7661637
$1.49
42
NUT FLEX,(10)
7542703
Unavailable
43
BRACE,LOW.PAN,BLK.
5241031-067
Unavailable
44
ROD END,RH Substituted by 7061011
7060156
Unavailable
45
BOLT(10)
7512551
Unavailable
46
NUT-JAM(10)
7542711
$2.39
47
BUSHING,SHOCK,.220 Substituted by 1500137 (.220)
5431540
$24.99
48
BUSHING,SHOCK (.295)
5431727
Unavailable
48
BUSHING,SHOCK (.295)
5431727
Unavailable
48
BUSHING,SHOCK (.295)
5431727
Unavailable
48
BUSHING,SHOCK (.295)
5431727
Unavailable
49
RETAINER,SPRING,SLOTTED
5020618
$24.99
50
SPRING,COMP,.BLK.
7041396-067
Unavailable
51
RING, RETAINING(10)
7710424
$0.63
52
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
53
SHOCK,IFS,FOX
7041401
Unavailable
54
BUSHING, (1.34 IN.) NOTE: For Foxt Shock replacement parts see pages C6-C8.
5020612
Unavailable
