COOLING SYSTEM 440 XCR SP X951660 (4932833283B006)

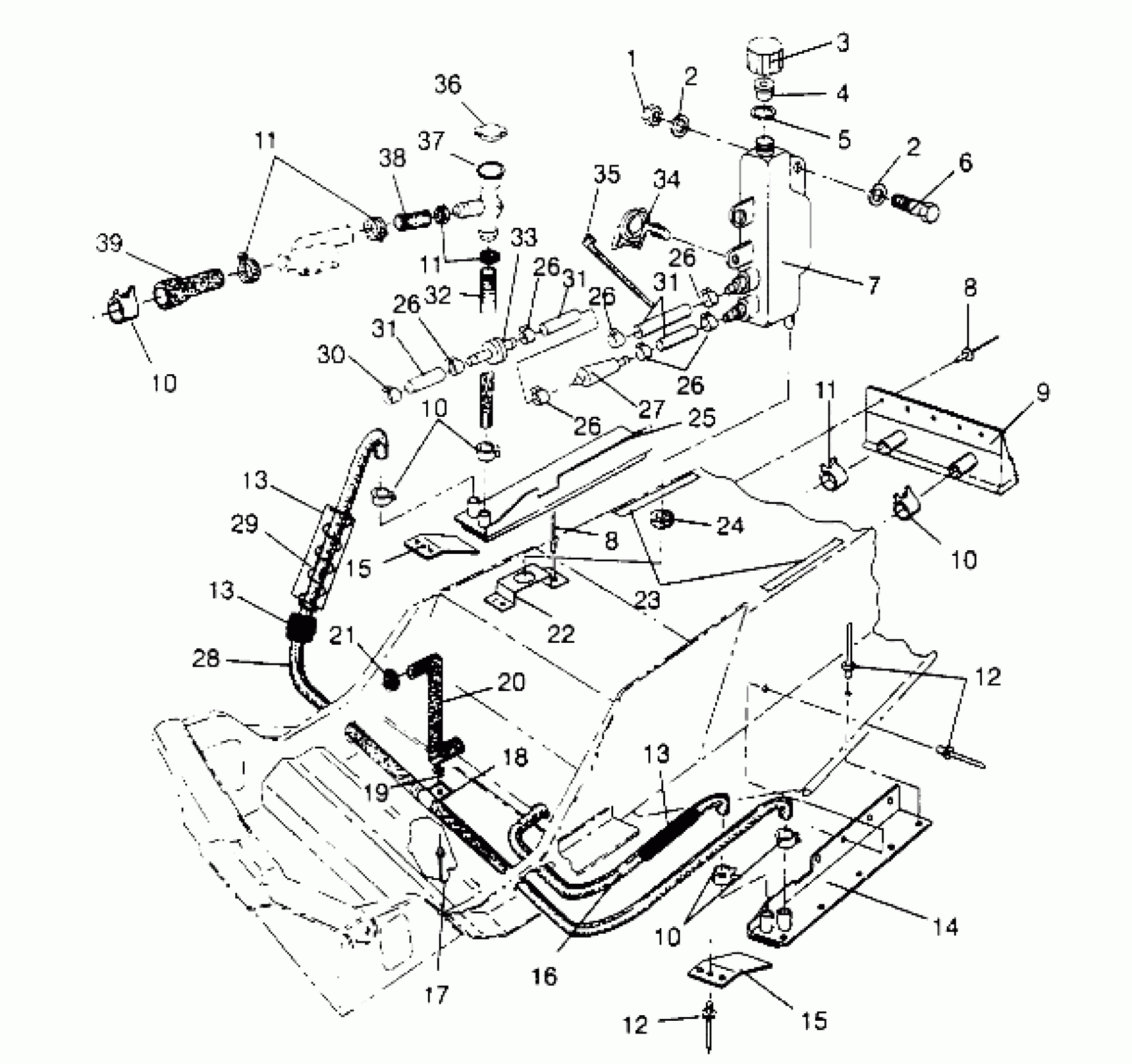

Polaris 440 XCR SP - X951660 COOLING SYSTEM 440 XCR SP X951660 (4932833283B006) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
13
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
14
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
15
GUARD, COOL.EXT.
5222863
$32.99
15
GUARD, COOL.EXT.
5222863
$32.99
16
HOSE-CROSSOVER (Short)
5410350
Unavailable
17
RIVET(50)
7621456
Unavailable
18
CLAMP, 1"HOSE(10)
7080585
$3.99
19
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
20
HOSE,PUMP/CLOSE-OFF EXT.
5410979
Unavailable
21
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
22
BRACKET
5223985
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
GROMMET RUBBER
5410021
Unavailable
25
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
28
HOSE-CROSSOVER
5410324
Unavailable
29
SPRING,HOSE RETAINER
7041079
$4.95
30
CLAMP-HOSE(10)
7080134
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
32
HOSE,3/4 TO 1,FILLNECK/COOLER
5410959
Unavailable
33
VALVE, CHECK
7052038
$10.51
34
CLIP, PLASTIC(10)
4020139
$4.79
35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
36
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
37
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
38
HOSE, 1"I.D.
5410958
Unavailable
39
HOSE,BRAKE COOLING
5410884
Unavailable
