CHAINCASE ASSEMBLY 440 XCR SP X951660 (4932833283B009)

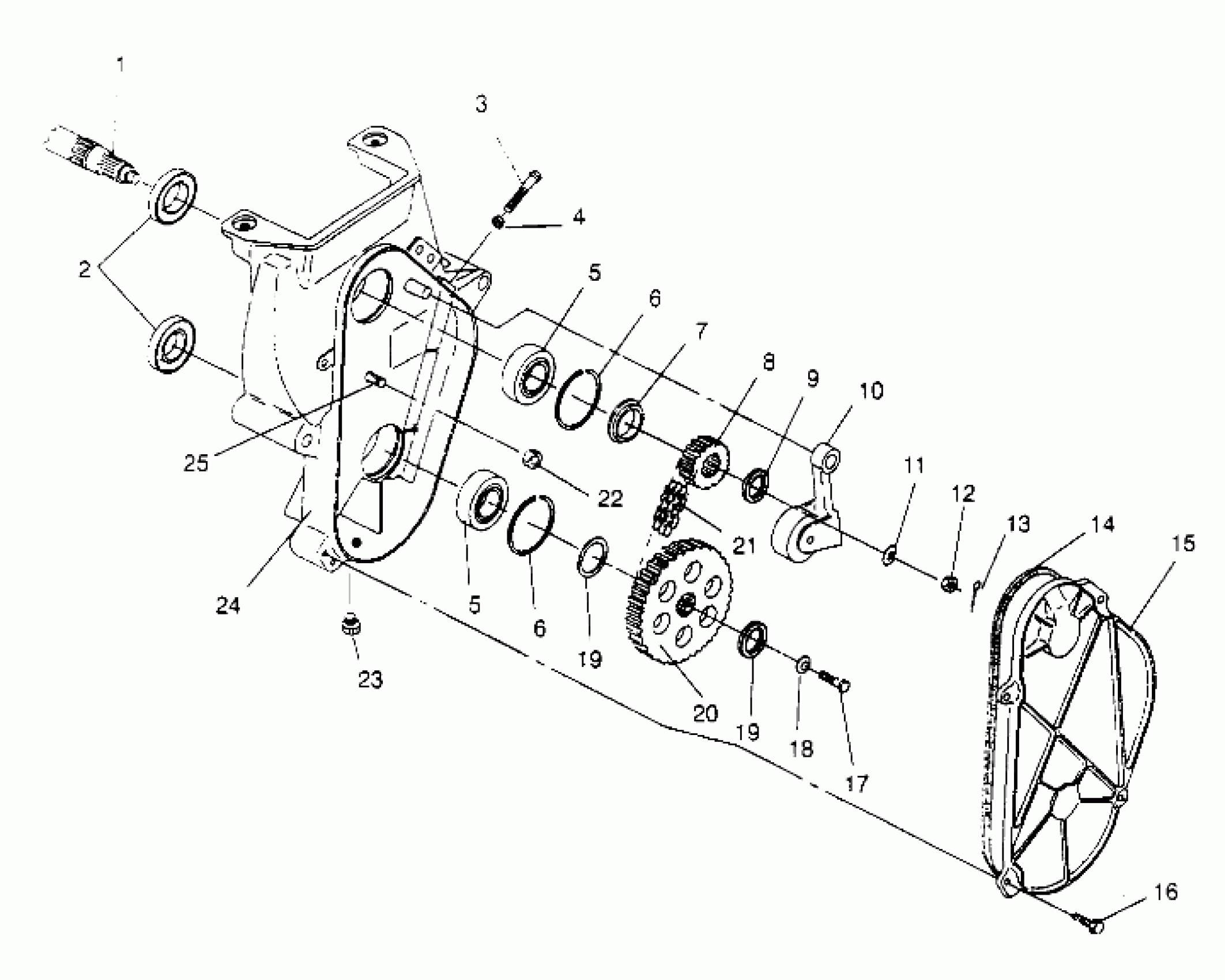

Polaris 440 XCR SP - X951660 CHAINCASE ASSEMBLY 440 XCR SP X951660 (4932833283B009) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. 17, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 21 T
3221035
Unavailable
9
BUSHING(10)
7555863
$2.39
10
PIN,CHAIN TIGHTENER
7662210
Unavailable
10
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
10
BEARING
3553002
$11.99
10
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
10
WHEEL,C/C IDLER
5630123
Unavailable
10
WASHER THRUST(10)
7558702
$1.59
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
BUSHING(10)
7555864
$2.39
19
BUSHING(10)
7555864
$2.39
20
SPROCKET 39 T
3222034
Unavailable
21
CHAIN 66 PITCH
3224024
Unavailable
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
23
PLUG(10)
7052115
$5.65
24
CHAINCASE,TOP MT,VENTED MACH Substituted by 5131121
5131055
Unavailable
25
BOLT(10)
7515477
$34.99
