TUNNEL ASSEMBLY 440 XCR SP 0941660 (4927082708001A)

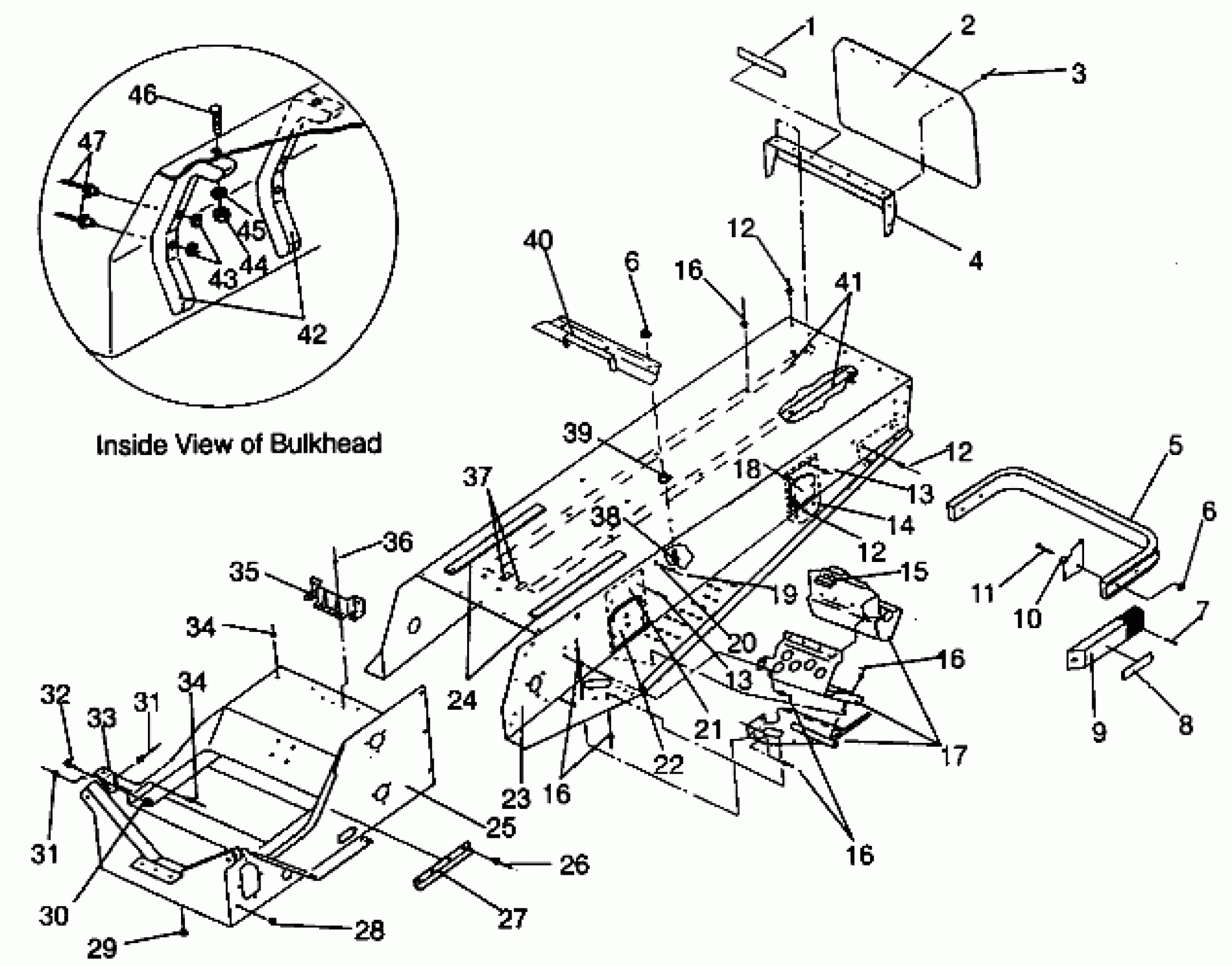

Polaris 440 XCR SP - 0941660 TUNNEL ASSEMBLY 440 XCR SP 0941660 (4927082708001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
5
BUMPER,REAR,BLK.
5224334-067
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
6
NUT-LOCK(10)
7542122
$1.49
7
SCREW(10)
7511863
$1.99
8
REFLECTOR RED
2670070
$9.91
9
CAP, BUMPER, BLK.
5430930-070
Unavailable
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
13
RIVET,(50)
7661825
$1.49
13
RIVET,(50)
7661825
$1.49
14
BRKT,RH,R.SUSP.
1011858-067
Unavailable
14
BRKT,LH,R.SUSP
1011857-067
Unavailable
15
EXTRUSION,CLUTCHGUARD
5521238
$6.46
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
FOOTREST ASM, LH
1011861
Unavailable
17
FOOTREST ASM,RH,BLK.
1011892
Unavailable
18
BRKT,R.OUT.SUSP,BLK.
5211440-067
$10.71
19
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
20
SNAP-MALE(10)
7080227
Unavailable
21
BRKT,FR.SUSP,BLK.
5240396-067
Unavailable
22
BRKT,FR.SUSP,BLK.
5211439-067
Unavailable
23
TUNNEL,'94 XCR-SP (Incl. 4,14,21)
1012040
$366.65
24
PAD-GAS TANK
5810063
$4.95
25
DESC NOT_AVAILABLE
1012038-067
Unavailable
26
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
27
GUARD,ADAPTER,DRIVE
5240441
Unavailable
28
PLUG, HOLE(10)
7080416
$5.65
29
PLUG-HOLE
7080398
$4.84
30
NUT LOCK(10)
7542321
$1.49
31
RIVET(50)
7621452
$1.49
31
RIVET(50)
7621452
$1.49
32
SCREW(10)
7512307
$3.99
33
Weld., Muffler Support (See Pg. A28, Ref. 18)
-------
Unavailable
34
RIVET-3/16-.090-.290
7661637
$1.49
34
RIVET-3/16-.090-.290
7661637
$1.49
35
BRACKET, GASTANK
5221932-067
Unavailable
36
RIVET(50)
7621301
$3.99
37
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
38
BOLT(10)
7512193
$2.39
39
SPEED NUT(10)
7670021
$6.99
40
STRAP,GASTANK,WELD. Substituted by 1011732-067
1011732
Unavailable
41
MOUNT,WEAR STRIP
5131009
Unavailable
42
GUARD,CLOSE-OFF [No Longer Available]
5431693
Unavailable
43
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
44
NUT FLEX-LOC(10)
7542303
$6.39
45
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
46
SCREW(10)
7512310
$2.39
47
RIVET, MONOBOLT (50)
7661632
$4.79
