SUSPENSION ASSEMBLY 440 XCR SP 0941660 (4927082708020A)

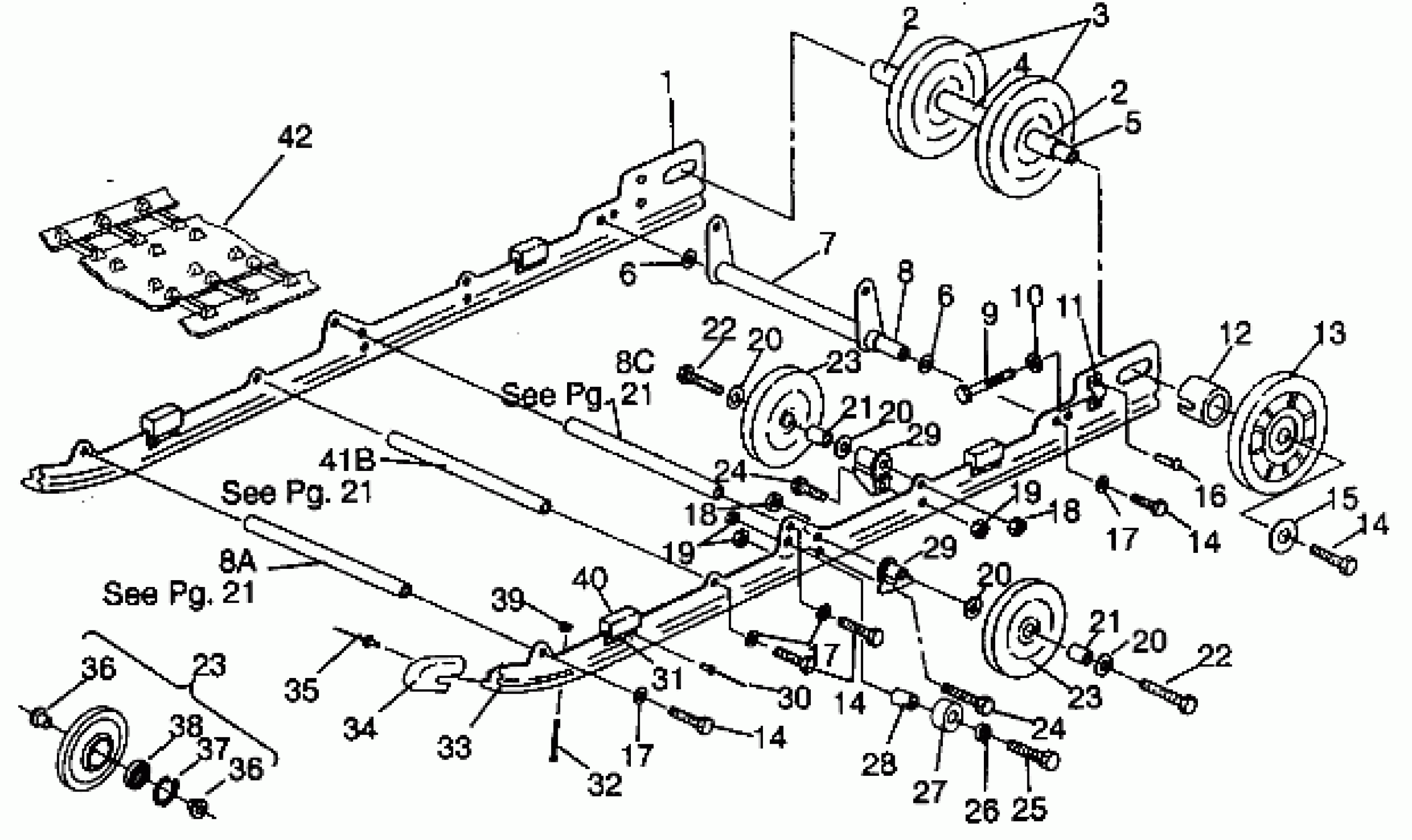

Polaris 440 XCR SP - 0941660 SUSPENSION ASSEMBLY 440 XCR SP 0941660 (4927082708020A) Diagram
#
1
RAIL ASM, RH. (Incl. 11,31,34,40)
1540796
$263.99
1
RAIL ASM, LH. (Incl. 11,31,34,40)
1540795
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER CTR IDLER
5010168
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
Weld., Rear Torque Arm (See Pg. A24, Ref. 1)
-------
Unavailable
8
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. A23)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
WASHER(10) Substituted by 7556130
7571629
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT, NYLOCK(10)
7542525
$4.79
18
NUT, NYLOCK(10)
7542525
$4.79
19
NUT-LOCK(10)
7542439
$1.49
19
NUT-LOCK(10)
7542439
$1.49
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
21
SPACER, WHEEL
5333116
$7.99
21
SPACER, WHEEL
5333116
$7.99
22
BOLT(10)
7512538
$6.39
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
23
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
23
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
BOLT Substituted by 7515491
7515433
$1.59
26
WASHER(10)
7555743
Unavailable
27
ROLLER-SPRING
5430540
Unavailable
28
Spacer
5332787
Unavailable
29
SPACER
5630399
$11.99
29
SPACER
5630399
$11.99
30
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
31
REINF., BUMPER
5222629
$13.75
32
SCREW(10)
7512227
$3.19
33
SLIDER,WIDE,BLK.(2)
5521275
Unavailable
34
COVER-RAIL TIP
5430627
$32.37
35
RIVET(50)
7621435
$1.49
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
37
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
38
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
39
NUT-LOCK(10)
7542122
$1.49
40
BUMPER, RAIL
5810554
$7.27
42
TRACK,121'',MOLDED [Item NotAvailable]
5410847
$527.79
