PISTON and CRANKSHAFT 440 XCR SP 0941660 (4927082708036A)

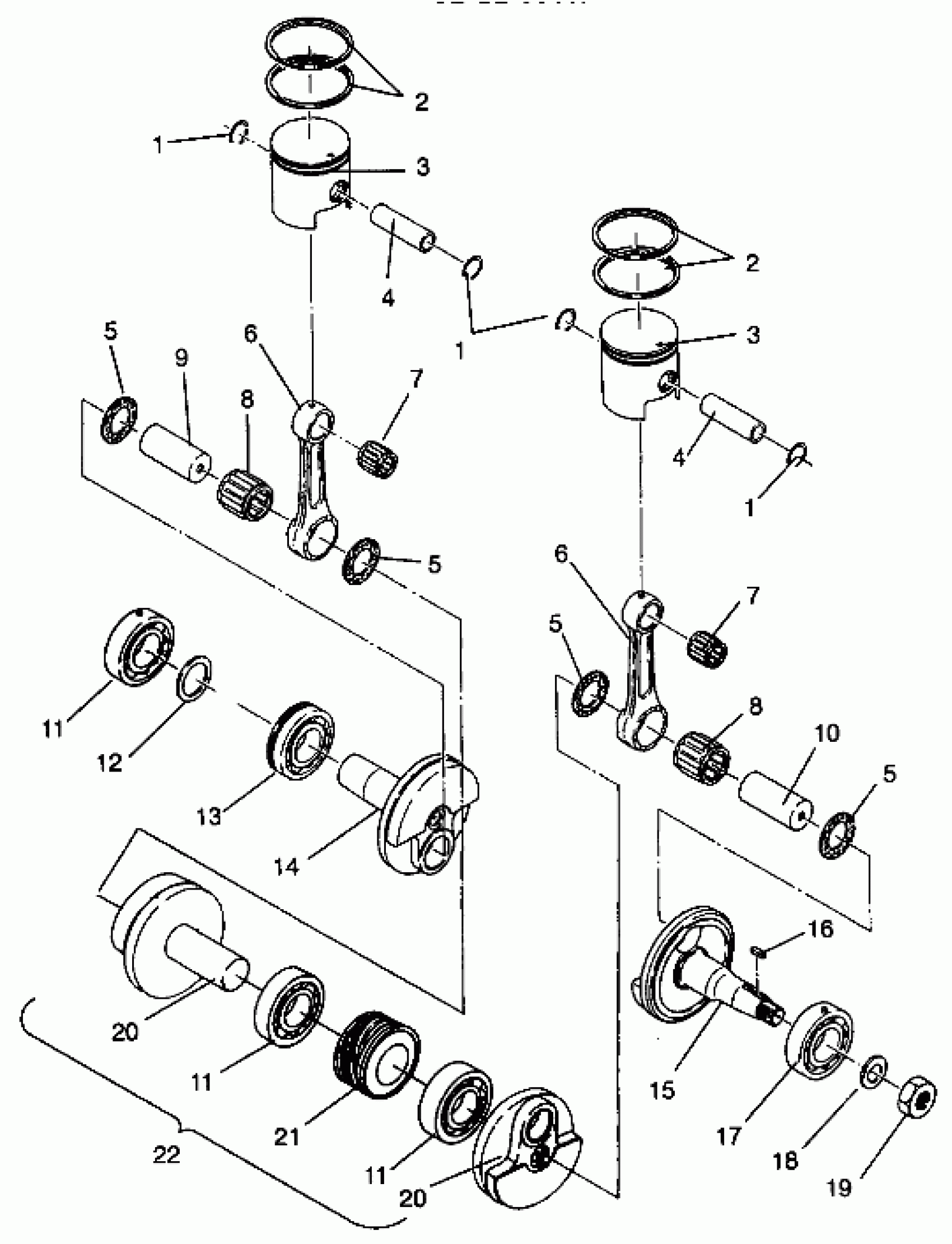

Polaris 440 XCR SP - 0941660 PISTON and CRANKSHAFT 440 XCR SP 0941660 (4927082708036A) Diagram
#
Description
Price
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON,STD. (Standard)
3084703
$21.89
2
RING,PISTON,STD. (Standard)
3084703
$21.89
3
PISTON, STD.
3084713
Unavailable
3
PISTON, STD.
3084713
Unavailable
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
Pin, Crank, 2
3083456
Unavailable
10
PIN,CRANK
3083233
$36.41
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
11
BEARING, BALL
3084586
$44.99
12
SPACER,CRANKSHAFT
3080447
$1.99
13
BALL BEARING, C-4
3083714
Unavailable
14
CRANKSHAFT Substituted by 3085179 (PTO Side)
3084357
Unavailable
15
CRANKSHAFT #1 (Mag Side)
3084702
Unavailable
16
KEY WOODRUFF
3081543
$12.94
17
BEARING, BALL
3084598
Unavailable
18
WASHER Substituted by 3084457
3084704
Unavailable
19
NUT
3083093
$19.99
20
CRANKSHAFT 2 (Center) (Incl. 9,10)
3083713
$583.49
20
CRANKSHAFT 2 (Center) (Incl. 9,10)
3083713
$583.49
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
22
CRANKSHAFT ASM. (Incl. 5,6,8-15,20)
3084701
$740.94
