HOOD ASSEMBLY 440 XCR SP 0941660 (4927082708005A)

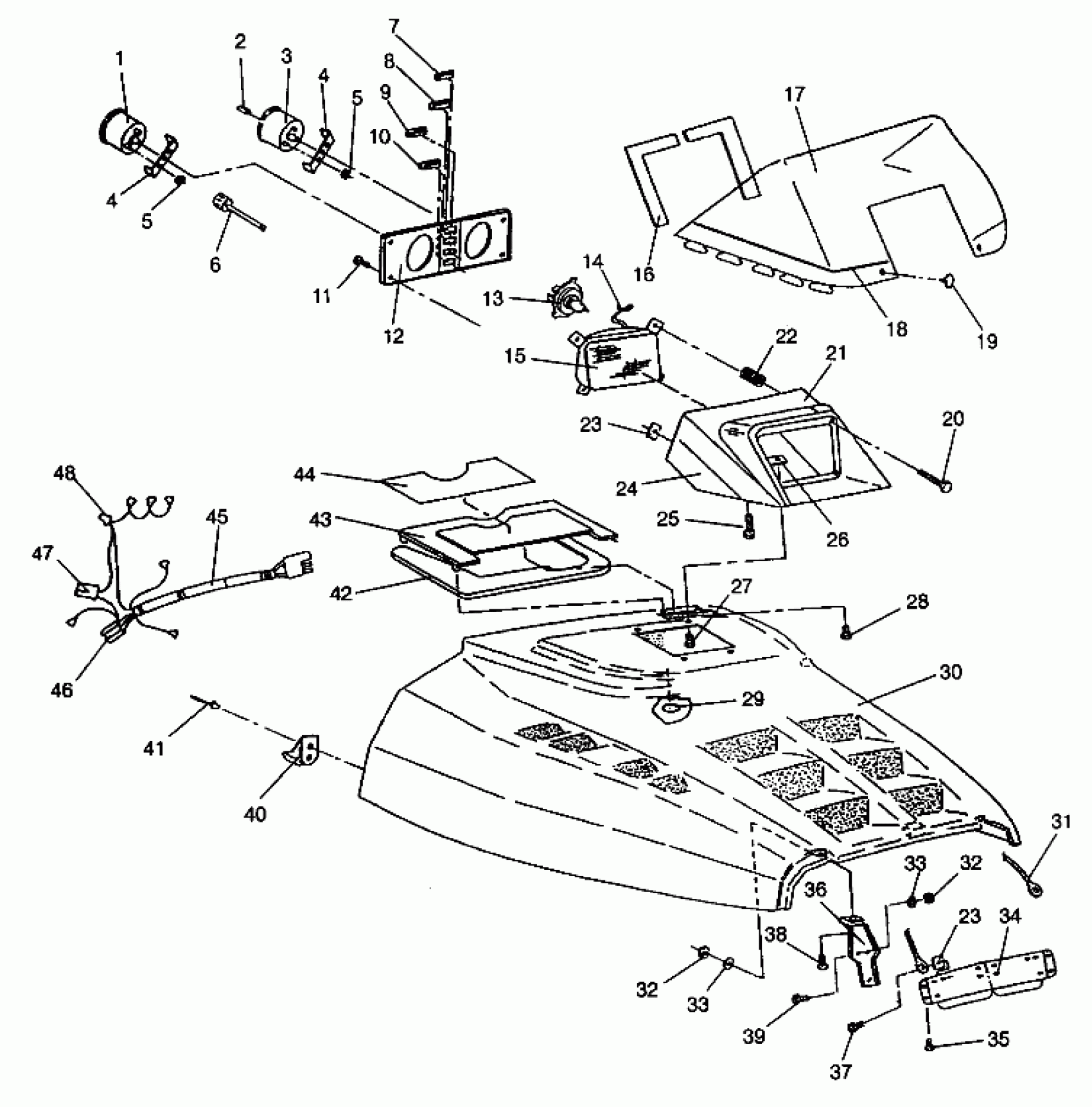

Polaris 440 XCR SP - 0941660 HOOD ASSEMBLY 440 XCR SP 0941660 (4927082708005A) Diagram
#
1
TACHOMETER (Incl. 4,5)
3280093
Unavailable
1
BULB TAILLIGHT(10) Substituted by 4030015
4030027
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDOMETER (Incl. 4,5)
3280092
$111.99
3
SPEEDOMETER (Incl. 4,5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,LOW,WHITE
5431712
Unavailable
18
PINSTRIPE,RED,W/S (Red)
8330133
Unavailable
19
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
20
SCREW, ADJ.(10)
4032003
Unavailable
21
HSG,INST.TOP,WHITE
5430923-133
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT,WHITE
5430922-133
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
31
CABLE,HD.RETAINER
7080360
$24.27
32
NUT-LOCK(10)
7542122
$1.49
32
NUT-LOCK(10)
7542122
$1.49
33
WASHER,WROUGHT(10)
7558302
$1.59
33
WASHER,WROUGHT(10)
7558302
$1.59
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
HINGE ASM,HD,WHITE
2635005-133
$15.70
37
SCREW(10)
7511989
Unavailable
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
BOLT(10)
7512193
$2.39
40
CUP, HOOD LATCH,(10)
5430733
$4.84
41
RIVET(50)
7621334
$1.49
42
SEAL, INTAKE
5810597
Unavailable
43
PANEL ASM,INTAKE,BR,WHITE Substituted by 2620091-133 (Incl. 44)
2620078-133
Unavailable
44
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
45
HARNESS,HEADLIGHT
2460382
Unavailable
46
HOUSING
4020052
Unavailable
47
Housing
4020115
$1.59
48
HOUSING
4020114
Unavailable
