CYLINDER ASSEMBLY 440 XCR SP 0941660 (4927082708034A)

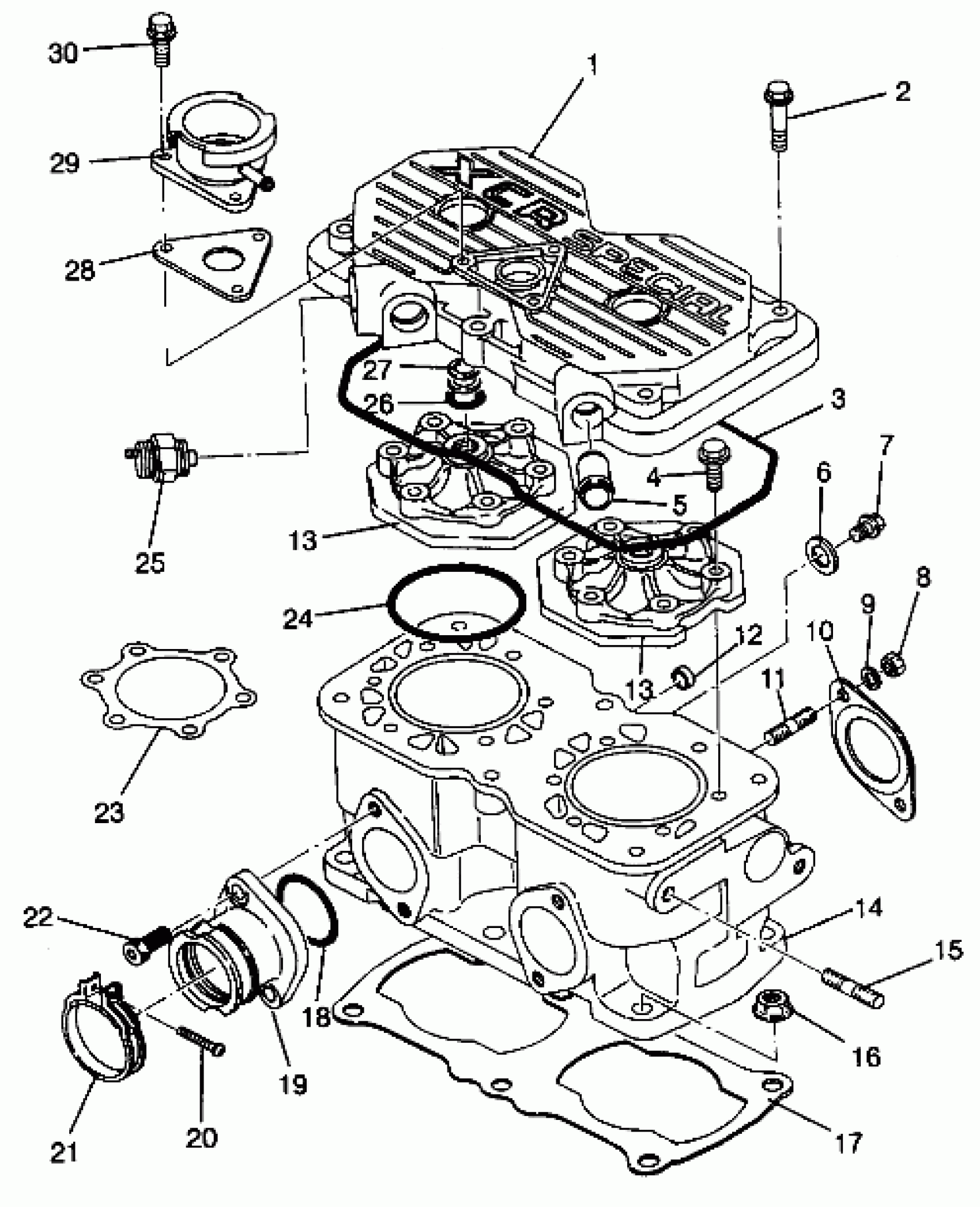

Polaris 440 XCR SP - 0941660 CYLINDER ASSEMBLY 440 XCR SP 0941660 (4927082708034A) Diagram
#
Description
Price
1
COVER, HEAD (Incl. 5)
3084710
$15.56
2
Bolt, Flange
3084134
Unavailable
3
O RING,HD.COVER
3084711
Unavailable
4
BOLT, FLANGE ,(10)
3084435
Unavailable
5
Pipe, Water
3083452
Unavailable
6
Gasket, Aluminum
3084492
$4.03
7
Plug
3084491
Unavailable
8
NUT(10)
3080285
Unavailable
9
WASHER LOCK ,(10)
3080530
$3.19
10
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
11
STUD Substituted by 3085326
3084270
Unavailable
12
PLUG Substituted by 3240071
3084712
Unavailable
13
HEAD,CYLINDER
3084708
$73.81
13
HEAD,CYLINDER
3084708
$73.81
14
CYLINDER (Incl. 11,12,15)
3084707
$979.99
15
STUD
3084524
Unavailable
16
NUT-FLANGE(10)
3082911
$1.99
17
Gasket, Base
3084768
$64.99
18
O-RING Substituted by 3085619
3084272
Unavailable
19
ADAPTER (Incl. 18)
3084325
Unavailable
20
SCREW Substituted by 3081497
3083086
Unavailable
21
BAND ASM. (Incl. 20)
3083166
$19.84
22
Bolt, Allen
3081330
$3.99
23
SHIM,HD.GASKET (Opt.)
3084686
$32.13
24
O RING(CYLINDER) (Std.)
3084709
Unavailable
25
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
26
O-RING, HEAD Substituted by 3085192
3084433
Unavailable
27
SPACER [No Longer Available]
3084687
$4.76
28
GASKET, FILLER NECK
3083340
Unavailable
29
NECK, FILLER Substituted by 3083398
3083339
Unavailable
30
BOLT&WASHER ASM.
3083361
Unavailable
