TUNNEL ASSEMBLY - 0951660 (4929112911A006)

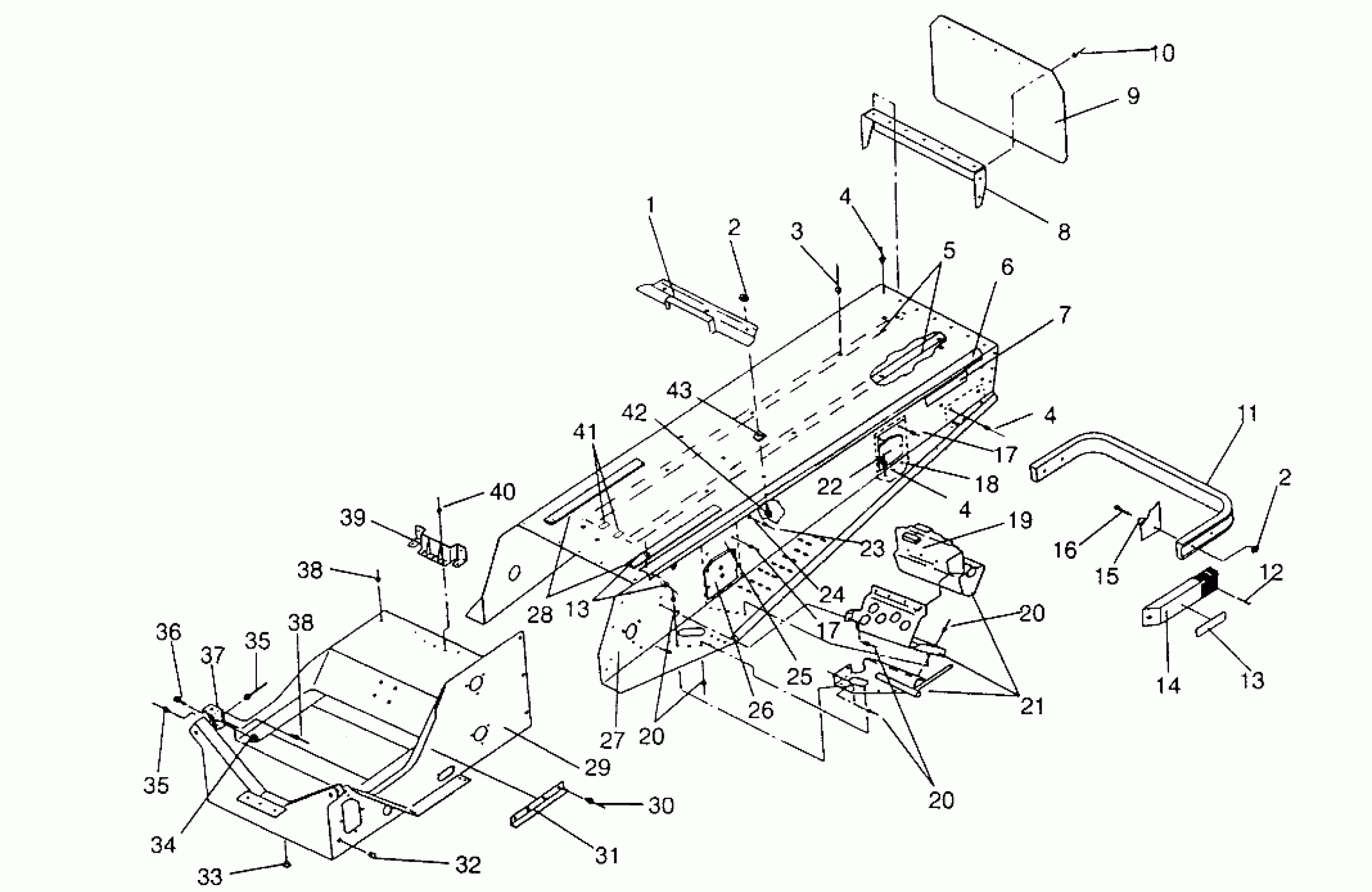

Polaris 440 XCR - 0951660 TUNNEL ASSEMBLY - 0951660 (4929112911A006) Diagram
#
1
STRAP,GASTANK,BLK
1011732-067
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
3
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
5
STRIP-WEAR
5510130
Unavailable
6
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
7
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
8
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
9
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
10
POP RIVET(50)
7621418
$1.49
11
BUMPER,REAR,BLK.
5224334-067
Unavailable
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
WASHER(10)
7558301
$1.49
16
BOLT(10)
7512240
$3.99
17
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
17
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
18
BRKT,RH,R.SUSP.
1011858-067
Unavailable
18
BRKT,LH,R.SUSP
1011857-067
Unavailable
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
FOOTREST ASM, LH
1011861
Unavailable
21
FOOTREST ASM,RH,BLK.
1011892
Unavailable
22
BRKT,R.OUT.SUSP,BLK.
5211440-067
$10.71
23
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
24
SNAP-MALE(10)
7080227
Unavailable
25
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
26
BRKT,FR.SUSP,BLK.
5211439-067
Unavailable
27
TUNNEL,LIQ,BLK. (Incl. 8,18,25)
1012268
$405.94
28
PAD-GAS TANK
5810063
$4.95
29
BULKHEAD
1012271-067
$396.83
30
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
31
GUARD,ADAPTER,DRIVE
5240441
Unavailable
32
PLUG, HOLE(10)
7080416
$5.65
33
PLUG-HOLE
7080398
$4.84
34
NUT LOCK(10)
7542321
$1.49
35
RIVET(50)
7621452
$1.49
35
RIVET(50)
7621452
$1.49
36
SCREW(10)
7512307
$3.99
37
SUPPORT,MUFFLER,BLK.
1012233-067
Unavailable
38
RIVET-3/16-.090-.290
7661637
$1.49
38
RIVET-3/16-.090-.290
7661637
$1.49
39
BRACKET, GASTANK
5221932-067
Unavailable
40
RIVET(50)
7621301
$3.99
41
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
42
BOLT(10)
7512193
$2.39
43
SPEED NUT(10)
7670021
$6.99
