SEAT and GAS TANK ASSEMBLY - 0951660 (4929112911A007)

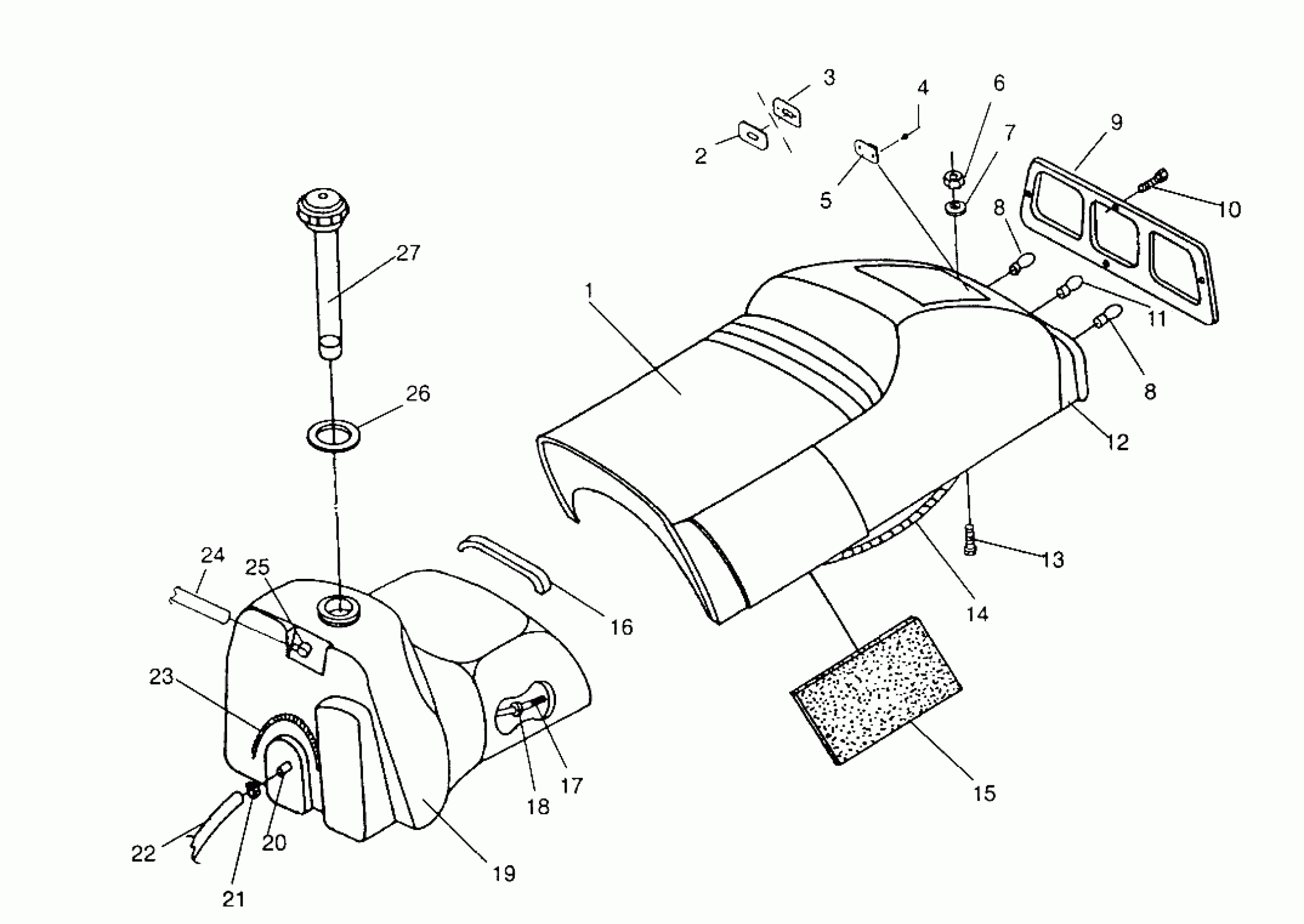

Polaris 440 XCR - 0951660 SEAT and GAS TANK ASSEMBLY - 0951660 (4929112911A007) Diagram
#
Description
Price
1
SEAT ASM. (Incl. 11 -14)
2681806
Unavailable
1
COVER,SEAT,(440XCR)
2681807
Unavailable
2
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
3
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
4
RIVET(50)
7621337
$1.49
5
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
7
WASHER,TOOTHED,DISH(10)
7571630
Unavailable
8
BULB,TAILLIGHT(10)
4030024
$4.84
8
BULB,TAILLIGHT(10)
4030024
$4.84
9
LENS,TAILLIGHT
5430423
Unavailable
10
SCREW(10)
7511840
Unavailable
11
Bulb, Brakelight
4030045
Unavailable
12
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
13
BOLT(10)
7512193
$2.39
14
Harness, Taillight
2460399
Unavailable
15
FOAM,SEAT PAD
5431981
Unavailable
16
CUSHION,TANK H.D.
5420126
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
RING, COMPRESSION(10)
7080402
$1.60
19
FUELTANK ASM. Substituted by 2200765
2511236
Unavailable
20
FITTING - OUTLET(10)
7052023
$24.99
21
HOSE CLAMP, RED (Red)
7080003
$1.49
22
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
23
SPRING,TANK,(10)
7042020
$13.75
24
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
25
FITTING,90 DEG,1/8,(10)
7052095
$4.79
26
GASKET, GAS CAP
5810513
$8.89
27
CAP,GAS,W/GAUGE
2511247
Unavailable
