FRONT SUSPENSION and SKI 440 XCR 0951660 (4929112911B002)

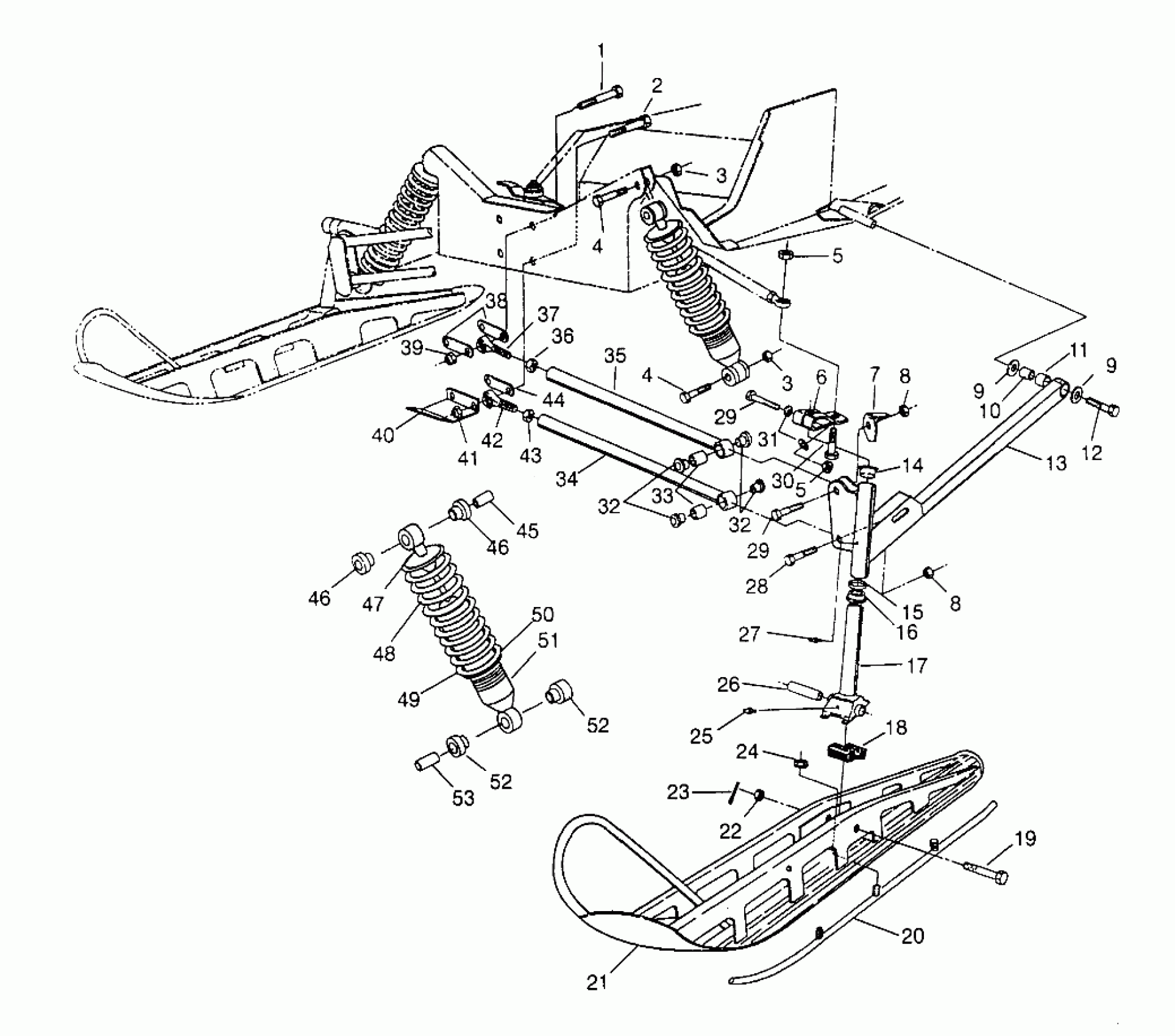

Polaris 440 XCR - 0951660 FRONT SUSPENSION and SKI 440 XCR 0951660 (4929112911B002) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
Arm, Steering
5220326-067
Unavailable
7
STOP,RH,STRG,BLK.
5240398-067
Unavailable
7
STOP,LH,STRG,BLK.
5240397-067
Unavailable
8
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
8
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
9
WASHER(10)
7555721
$1.49
9
WASHER(10)
7555721
$1.49
10
TUBE,TRAILING ARM
5010187
Unavailable
11
PIVOT-TRAILING ARM
5410382
Unavailable
12
BOLT(10) Substituted by 7512557
7512584
$7.60
13
ARM,TRLG,RH
1822206
Unavailable
13
ARM,TRLG,LH
1822205
Unavailable
14
BUSHING-FLANGE
3573909
$2.39
15
WASHER SPECIAL(10)
7556509
$1.59
16
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
17
SPINDLE,BLK,HARDENED
6230075-067
Unavailable
18
STOP, RUBBER
5521276
Unavailable
19
BOLT(10)
7515462
$8.79
20
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
21
SKI WELD, BLK
1820332-067
Unavailable
22
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
23
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
ZERK,FITTING,THREADED(10)
7080433
$1.49
28
BOLT(10) Substituted by 7515540
7515492
$4.62
29
BOLT(10) Substituted by 7517583
7515491
Unavailable
29
BOLT(10) Substituted by 7517583
7515491
Unavailable
30
BOLT(10) Substituted by 7515528
7515529
Unavailable
31
WASHER(10) Substituted by 7555832
7555851
Unavailable
32
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
32
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RAD,LOW,WIDE,BLK,SP Substituted by 2202105
1822139-067
Unavailable
35
ROD,RAD,UP.BLK. Substituted by 2202104
1822138-067
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END, RH Substituted by 7061010 (HD)
7060155
Unavailable
38
STRAP,SPACER TOP
5211344
$7.27
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE, PAN
5223997-067
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END,RH Substituted by 7061011 (HD)
7060156
Unavailable
43
NUT-JAM(10)
7542711
$2.39
44
STRAP,SPACER BOTTOM
5211345
$12.99
45
BUSHING, (1.16 IN.)
5020613
Unavailable
46
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
46
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
47
RETAINER,SPRING,SLOTTED
5020618
$24.99
48
SPRING,(BLK.),IFS COMP.
7041252-067
Unavailable
49
RING, RETAINING(10)
7710424
$0.63
50
RETAINER, SPRING BODY
5020617
Unavailable
51
SHOCK,GAS,IFS,IFP,CAM
7041346
Unavailable
52
BUSHING,SHOCK
5431727
Unavailable
52
BUSHING,SHOCK
5431727
Unavailable
53
BUSHING, (1.34 IN.) NOTE: For Fox Shock replacement parts see pages C6-C8.
5020612
Unavailable
