ENGINE MOUNTING 440 XCR 0951660 (4929112911C003)

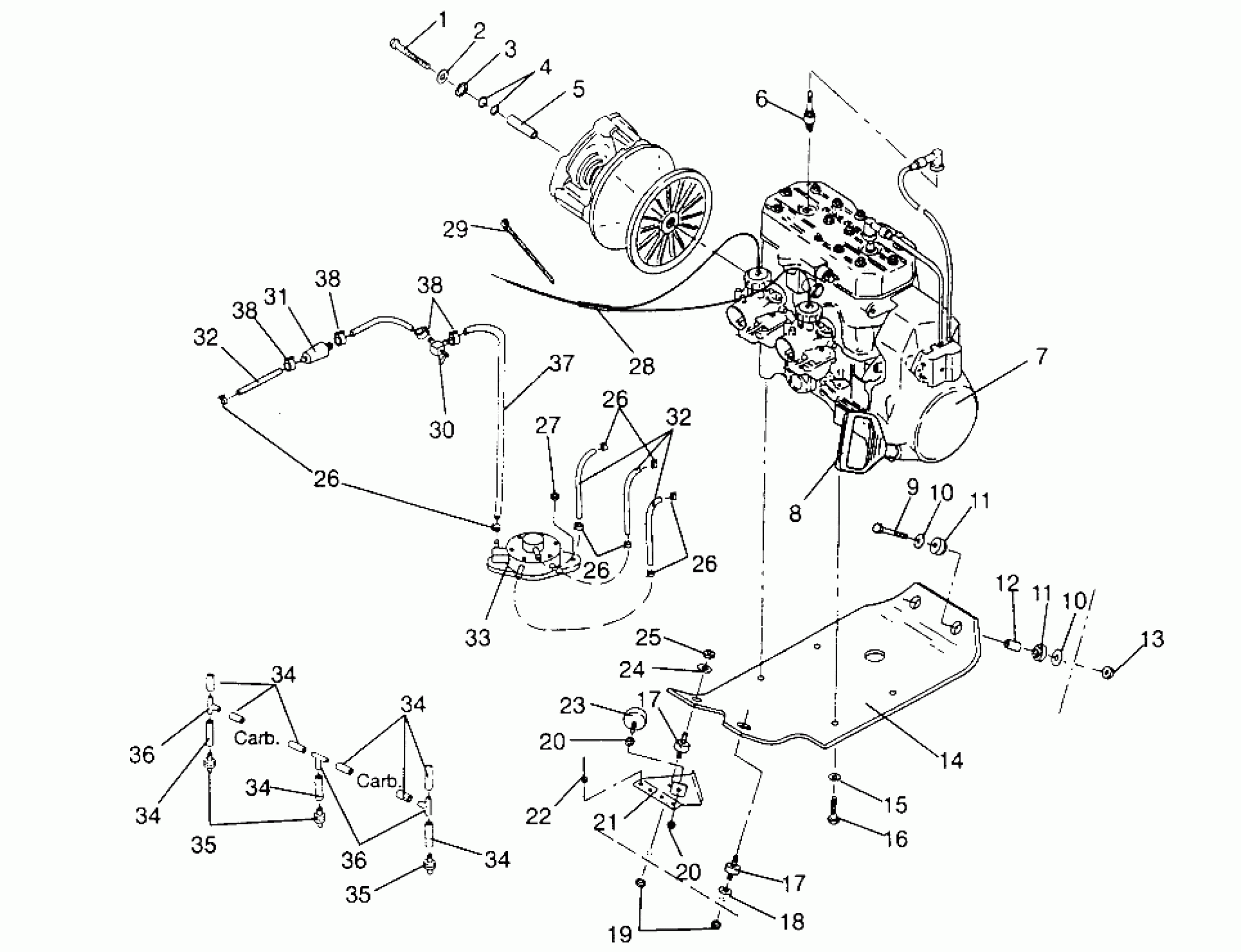

Polaris 440 XCR - 0951660 ENGINE MOUNTING 440 XCR 0951660 (4929112911C003) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG(8)
3070165
$3.99
7
ENG.(S.B.)EC45PL05 [No Longer Available]
3085096
Unavailable
8
HANDLE-RECOIL
5430520
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,MOTOR MT.
5240810
$49.59
15
WASHER LOCK(10)
7553101
$3.99
16
BOLT(10)
7512539
$3.99
17
MOUNT
3110022
Unavailable
17
MOUNT
3110022
Unavailable
18
WASHER,FLAT(10)
7555915
$3.19
19
NUT LOCK(10)
7542411
$3.19
20
NUT, JAM(10)
7542432
$3.99
20
NUT, JAM(10)
7542432
$3.99
21
LIMITER,TORQUE,BLK.
1012048-067
$38.71
22
RIVET-3/16-.090-.290
7661637
$1.49
23
MT,RUBBER,TORQUE STOP
3110041
Unavailable
24
WASHER(10) Substituted by 7555806
7555720
$0.79
25
NUT-LOCK(10)
7542439
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
26
HOSE CLAMP, RED
7080003
$1.49
27
NUT-LOCK(10)
7542122
$1.49
28
CABLE,THROTTLE,W/OIL
7080552
Unavailable
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
VALVE,FUEL SHUT-OFF
7052039
Unavailable
31
FILTER FUEL,(10)
2530008
$4.84
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
33
Fuel Pump (See Pg. C14, Ref. 1)
-------
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
35
VENT,CHECKVALVE
7051011
Unavailable
35
VENT,CHECKVALVE
7051011
Unavailable
36
FITTING, TEE,(10)
7052048
$3.99
36
FITTING, TEE,(10)
7052048
$3.99
37
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
38
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
38
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
38
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
