Description

Price

1

COVER, HEAD (Incl. 5)

3085043

$167.60

2

Bolt, Flange

3084134

Unavailable

3

O RING,HD.COVER

3084711

Unavailable

4

BOLT, FLANGE ,(10)

3084435

Unavailable

5

Pipe, Water

3083452

Unavailable

6

Gasket, Aluminum

3084492

$4.03

7

Plug

3084491

Unavailable

8

NUT(10)

3080285

Unavailable

9

WASHER LOCK ,(10)

3080530

$3.19

10

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

11

STUD Substituted by 3085326

3084270

Unavailable

12

PLUG Substituted by 3240071

3084712

Unavailable

13

HEAD,CYLINDER

3085042

$77.78

13

HEAD,CYLINDER

3085042

$77.78

14

CYLINDER (Incl. 11, 12)

3085041

$869.99

15

NUT-FLANGE(10)

3082911

$1.99

16

Gasket, Base

3084768

$64.99

17

O-RING Substituted by 3085619

3084272

Unavailable

18

ADAPTER,CARB. (Incl. 17)

3085044

Unavailable

19

SCREW,(10)

3081497

$2.39

20

BAND ASM. (Incl. 19)

3083166

$19.84

21

Bolt, Allen

3081330

$3.99

22

SHIM,HD.GASKET (Opt.)

3084686

$32.13

23

O RING(CYLINDER) (Std.)

3084709

Unavailable

24

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

25

O-RING, HEAD Substituted by 3085192

3084433

Unavailable

26

SPACER [No Longer Available]

3084687

$4.76

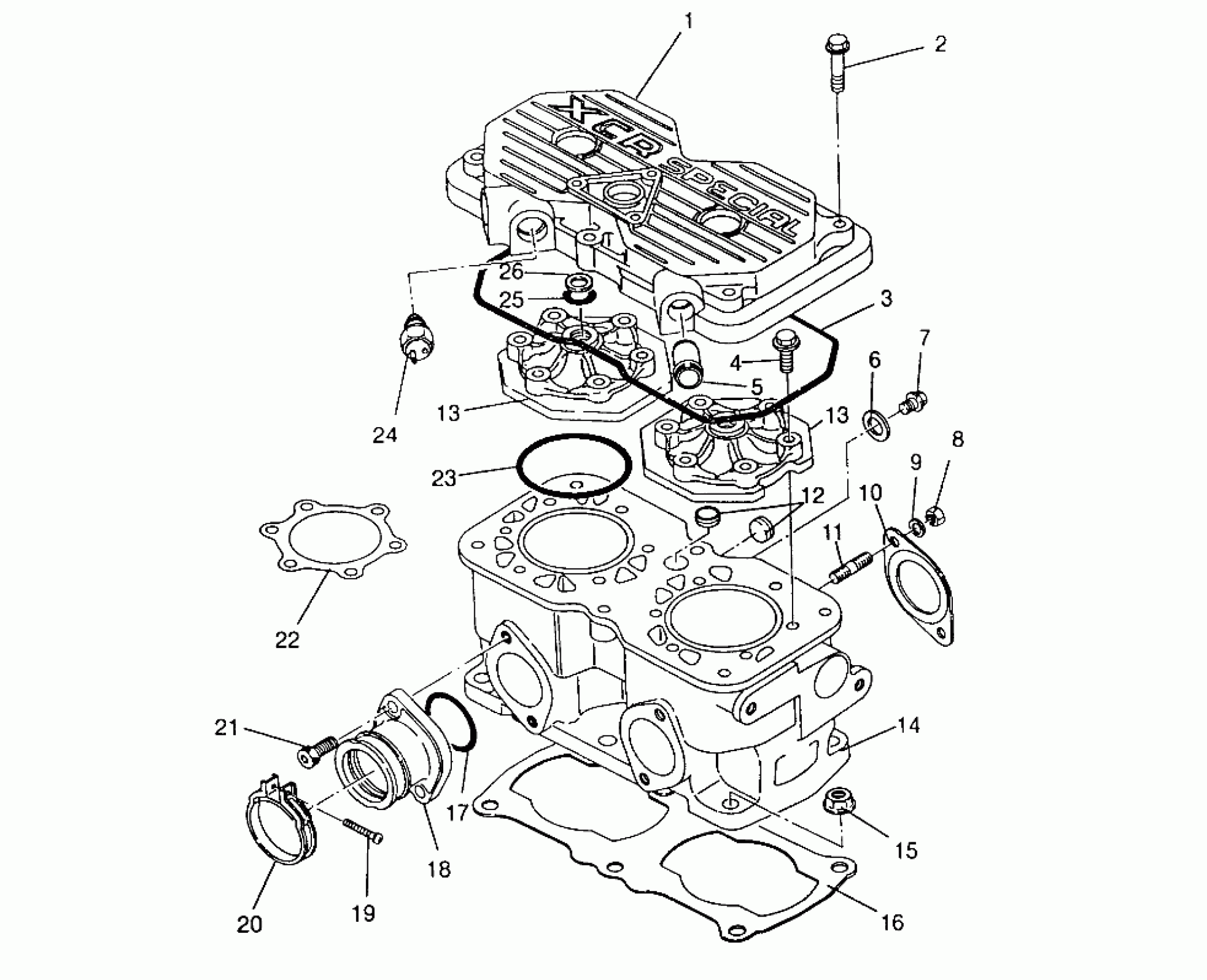

Polaris 440 XCR - 0951660 CYLINDER ASSEMBLY 440 XCR 0951660 (4929112911C010) Diagram

COVER, HEAD (Incl. 5)

Bolt, Flange

O RING,HD.COVER

BOLT, FLANGE ,(10)

Pipe, Water

Gasket, Aluminum

Plug

NUT(10)

WASHER LOCK ,(10)

GASKET,EXHAUST,NA(10) Substituted by 3086757

STUD Substituted by 3085326

PLUG Substituted by 3240071

HEAD,CYLINDER

HEAD,CYLINDER

CYLINDER (Incl. 11, 12)

NUT-FLANGE(10)

Gasket, Base

O-RING Substituted by 3085619

ADAPTER,CARB. (Incl. 17)

SCREW,(10)

BAND ASM. (Incl. 19)

Bolt, Allen

SHIM,HD.GASKET (Opt.)

O RING(CYLINDER) (Std.)

SWITCH,THERMAL(93 DEG.C.)

O-RING, HEAD Substituted by 3085192

SPACER [No Longer Available]
