COOLING SYSTEM 440 XCR 0951660 (4929112911B006)

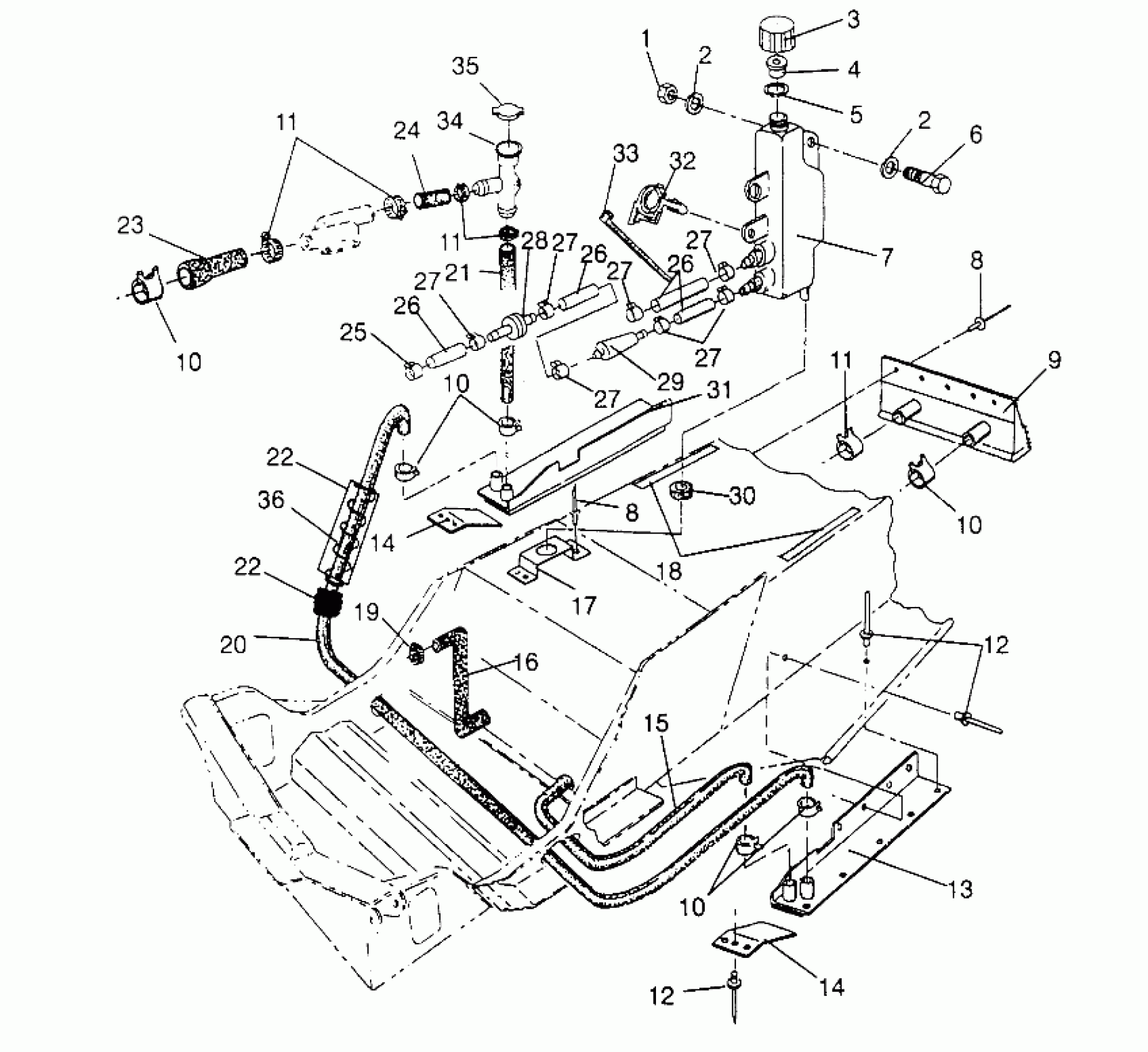

Polaris 440 XCR - 0951660 COOLING SYSTEM 440 XCR 0951660 (4929112911B006) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
EXT.,LH COOLING Substituted by 2511257
2511228
Unavailable
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE,PUMP,CTR.EXT.
5410848
Unavailable
17
BRACKET
5223985
Unavailable
18
PAD-GAS TANK
5810063
$4.95
19
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
20
HOSE-CROSSOVER
5410324
Unavailable
21
HOSE,3/4 TO 1,FILLNECK/COOLER
5410959
Unavailable
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
HOSE,BRAKE COOLING
5410884
Unavailable
24
HOSE, 1"I.D.
5410958
Unavailable
25
CLAMP-HOSE(10)
7080134
Unavailable
26
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
VALVE, CHECK
7052038
$10.51
29
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
30
GROMMET RUBBER
5410021
Unavailable
31
EXT.,RH.COOLING. Substituted by 2511258
2511229
Unavailable
32
CLIP, PLASTIC(10)
4020139
$4.79
33
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
34
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
35
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
36
SPRING,HOSE RETAINER
7041079
$4.95
