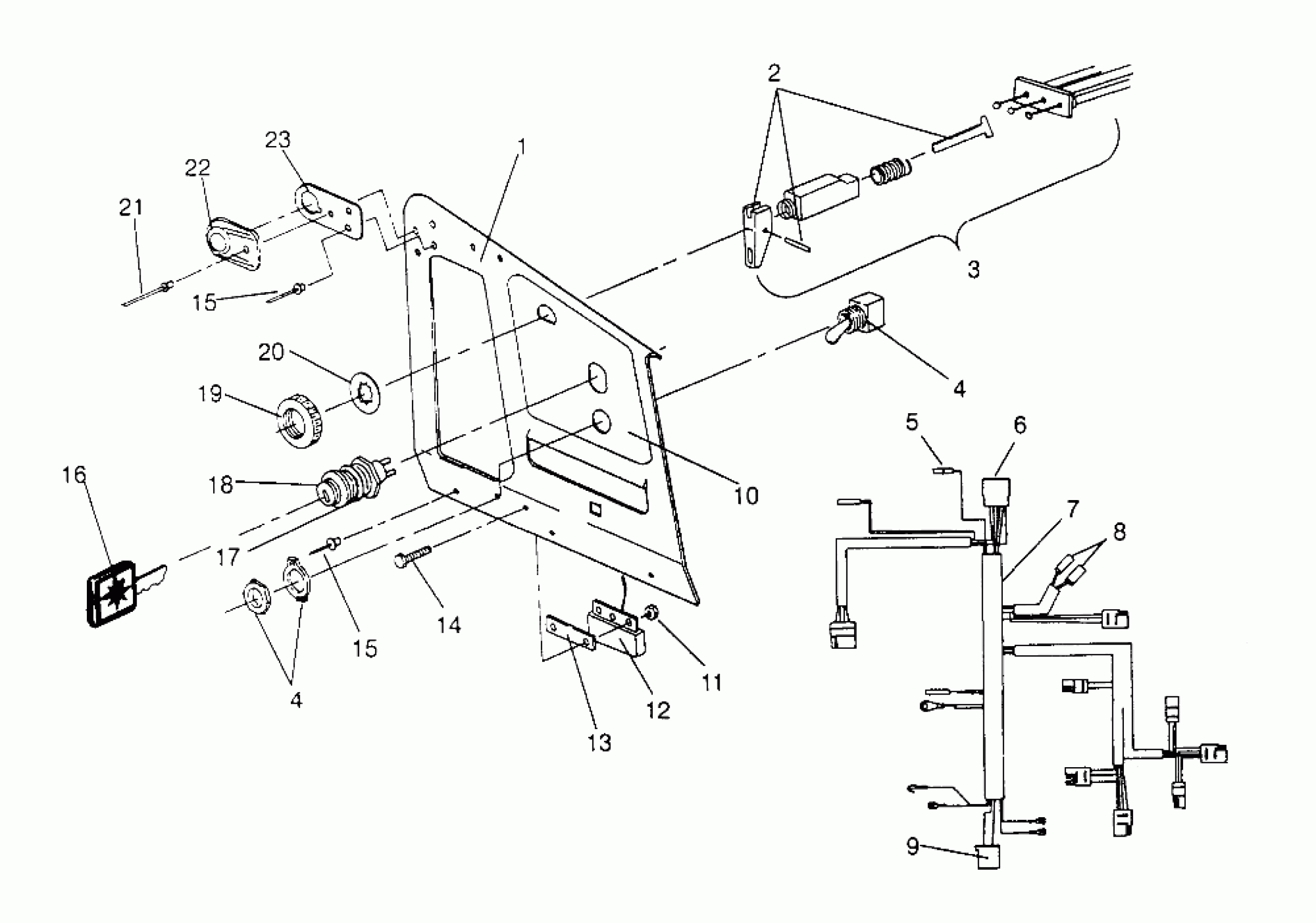

Polaris 440 XCR - 0951660 CONSOLE - 0951660 (4929112911A014) Diagram
#
Description
Price
1
CONSOLE
5222756-067
Unavailable
2
KIT,CHOKE CONTROL
2200189
$20.22
3
Cable, Choke Control
7080290
$105.22
4
SW,GRIP,HEATER-HI/LO
4110113
$70.39
4
SW,GRIP,HEATER-HI/LO
4110113
$70.39
5
HOUSING
4020133
Unavailable
6
Housing w/Receptacle
4020057
$3.51
7
HARNESS,MAIN WIRE,(XCR SP)
2460484
Unavailable
8
Housing
4020153
$1.49
9
HOUSING
4020063
$3.19
10
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
11
NUT(10)
7541925
$1.49
12
REGULATOR,14 VAC.LR-9
4060122
Unavailable
13
SPACER,REGULATOR
5211573
Unavailable
14
BOLT(10)
7512031
$2.23
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid
5410611
Unavailable
17
NUT, IGN.SWITCH(10)
7543101
Unavailable
18
KIT,IGN. SWITCH (Incl. 16,17)
2200357
Unavailable
19
Nut
7080229
$19.99
20
WASHER-LOCK(10)
7571610
$3.99
21
RIVET,(50)
7621477
$1.19
22
GUIDE, RECOIL
5431385
$10.51
23
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
