CARBURETOR ASSEMBLY 440 XCR 0951660 (4929112911C013)

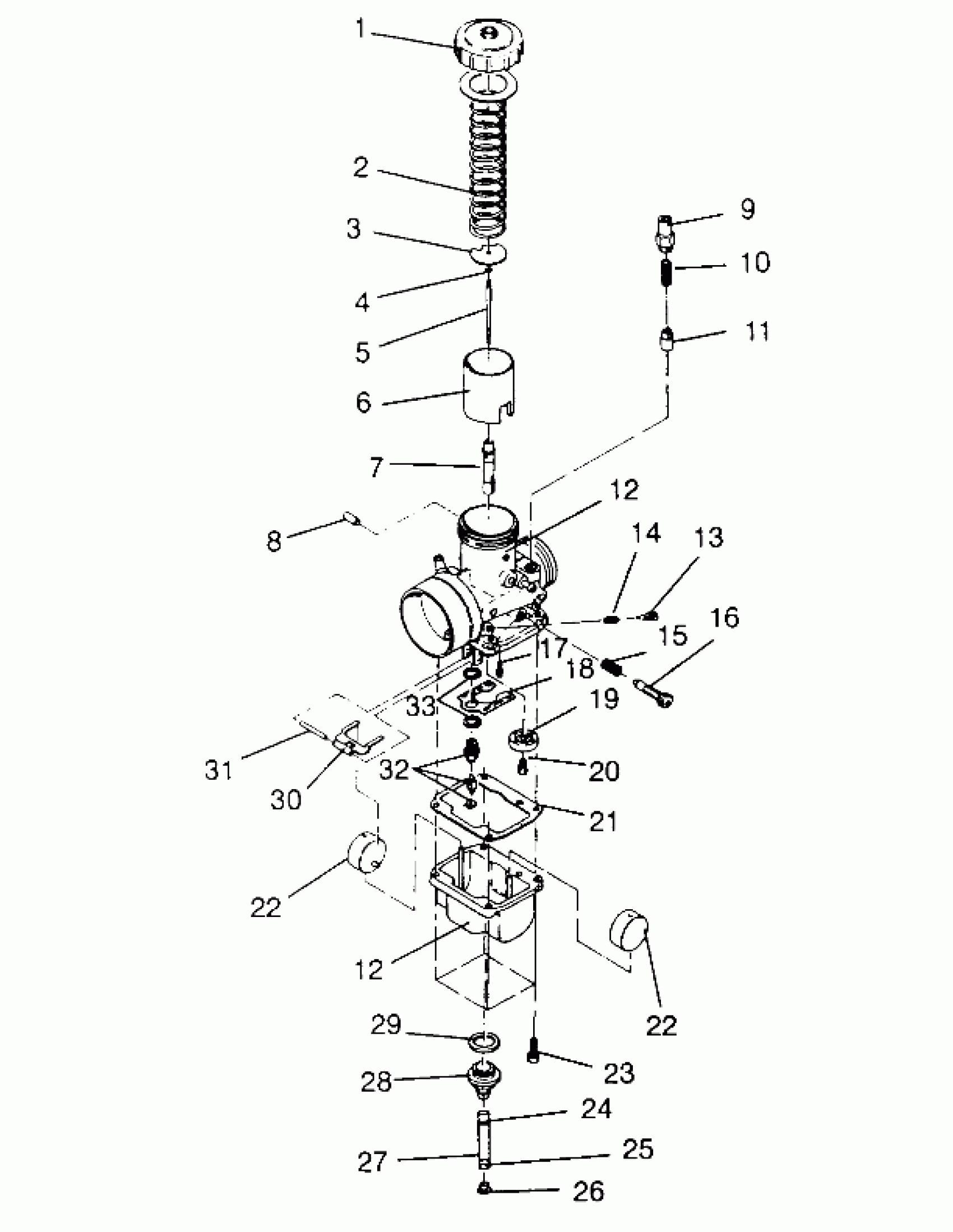

Polaris 440 XCR - 0951660 CARBURETOR ASSEMBLY 440 XCR 0951660 (4929112911C013) Diagram
#
Description
Price
1
TOP (Incl. Gasket)
3130061
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE Substituted by 3130329 (6DH7-3)
3130158
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
7
NEEDLE JET,(P-0) (286)
3130579
$21.43
8
CAP
3130595
Unavailable
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
CARBURETOR (Incl. 1-16, 17-23, 29-33)
3130584
Unavailable
12
CARBURETOR (Incl. 1-16, 17-23, 29-33)
3130584
Unavailable
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST (Air Adjuster)
3130012
$8.89
15
SPRING,THROTTLE ADJ.
3130010
$8.89
16
SCREW,THROTTLE STOP
3130009
$19.99
17
JET,PILOT,#40(10) (#40)
3130067
$10.99
18
PLATE
3130580
Unavailable
19
Ring
3130576
Unavailable
20
JET,MAIN HX.HD#290(10) (#290)
3130132
$7.27
21
GASKET,FLOATCHAMBER
3130578
$20.22
22
FLOAT ASM.
3130581
$19.68
22
FLOAT ASM.
3130581
$19.68
23
SCREW
3130056
$3.19
24
CLAMP,SPRING,(10)
7080534
$1.59
25
CLAMP,HOSE(10)
7080544
Unavailable
26
PLUG,TRAP
5431893
$12.94
27
DESC NOT_AVAILABLE
8450045-600
Unavailable
28
ROLLER
5020573
$17.30
29
O RING
3130239
Unavailable
30
ARM, FLOAT
3130577
$12.39
31
PIN, FLOAT
3130361
$8.89
32
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
33
WASHER(10)
3130047
$4.84
