TUNNEL ASSEMBLY 440 XCR 0941760 (4925182518001A)

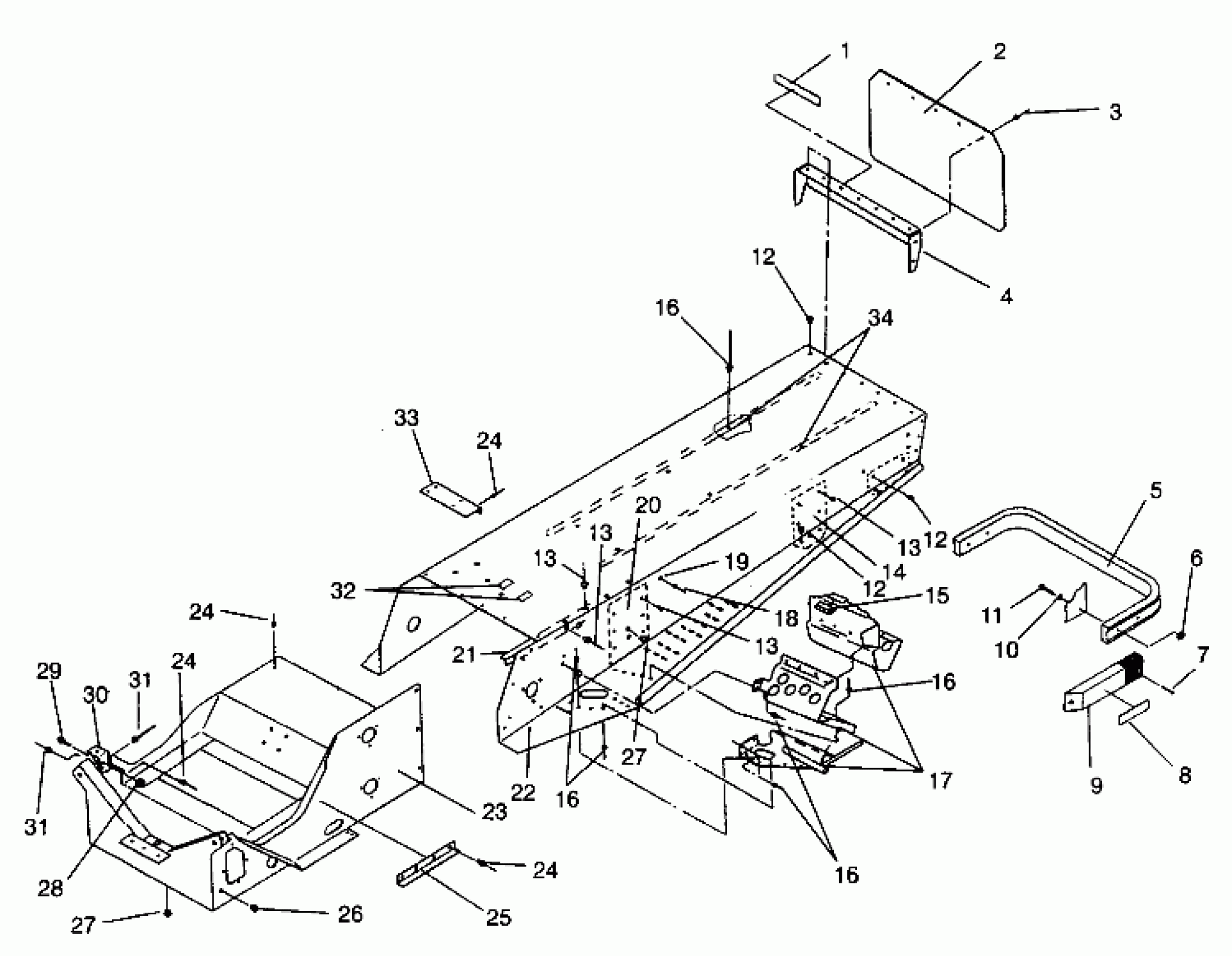

Polaris 440 XCR - 0941760 TUNNEL ASSEMBLY 440 XCR 0941760 (4925182518001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL-BACK
5220478-067
Unavailable
5
BUMPER,REAR,BLK.
5224334-067
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
7
SCREW(10)
7511863
$1.99
8
REFLECTOR RED
2670070
$9.91
9
CAP, BUMPER, BLK.
5430930-070
Unavailable
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
12
RIVET ,(50)
7661829
Unavailable
13
RIVET,(50)
7661825
$1.49
13
RIVET,(50)
7661825
$1.49
13
RIVET,(50)
7661825
$1.49
13
RIVET,(50)
7661825
$1.49
14
BRKT,RH,R.SUSP.
1011858-067
Unavailable
14
BRKT,LH,R.SUSP
1011857-067
Unavailable
15
EXTRUSION,CLUTCHGUARD
5521238
$6.46
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
FOOTREST ASM, LH
1011861
Unavailable
17
FOOTREST ASM,RH,BLK.
1011892
Unavailable
18
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
19
SNAP-MALE(10)
7080227
Unavailable
20
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
21
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
22
TUNNEL ASM,BLK,(XCR) (Incl. 4,14,20)
1011974
Unavailable
23
BULKHEAD,(94 XCR)
1011973-067
$396.83
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
25
GUARD
5223789
Unavailable
26
PLUG, HOLE(10)
7080416
$5.65
27
PLUG-HOLE
7080398
$4.84
27
PLUG-HOLE
7080398
$4.84
28
NUT LOCK(10)
7542321
$1.49
29
SCREW(10)
7512307
$3.99
30
Weld., Muffler Support (See Pg. A28, Ref. 16)
-------
Unavailable
31
RIVET(50)
7621452
$1.49
31
RIVET(50)
7621452
$1.49
32
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
33
BRKT, TOOL BOX
5220973
Unavailable
34
STRIP-WEAR
5510130
Unavailable
