Description

Price

1

BUSHING,TORS.BAR,SPT.MACH.

5130915

Unavailable

2

SCREW, SET(10)

7512162

Unavailable

3

RIVET,(50)

7621484

Unavailable

4

HOUSING,TUBE,BLK.

5130888-067

$34.71

5

BUSHING,T'BAR HSG.

5431462

Unavailable

6

TORSIONBAR Substituted by 1822534

6230072

Unavailable

7

SCREW(10)

7515519

Unavailable

8

TORSIONBAR ARM,MACH.

5130887

$47.39

9

ROD END, RH Substituted by 1822179

7060149

Unavailable

10

BOLT(10)

7512457

$3.99

11

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

12

BOLT(10) Substituted by 7517583

7515491

Unavailable

12

BOLT(10) Substituted by 7517583

7515491

Unavailable

13

NUT HEX(10)

7542401

$2.39

14

ROD END RH Substituted by 7060165

7060125

$48.56

15

NUT, NYLOC(10)

7542453

Unavailable

16

BRKT,RH TORSIONBAR,BLK.

1822108-067

$45.59

16

BRKT,LH TORSIONBAR,BLK.

1822107-067

$47.99

16

BRKT,RH TORSIONBAR,BLK.

1822108-067

$45.59

16

BRKT,LH TORSIONBAR,BLK.

1822107-067

$47.99

17

BOLT(10) Substituted by 7515197

7512286

Unavailable

18

SPACER, SLIDE

5333125

Unavailable

19

SLIDE,(FR.SUSP.)

5410385

Unavailable

20

WASHER FLAT(10)

7555732

Unavailable

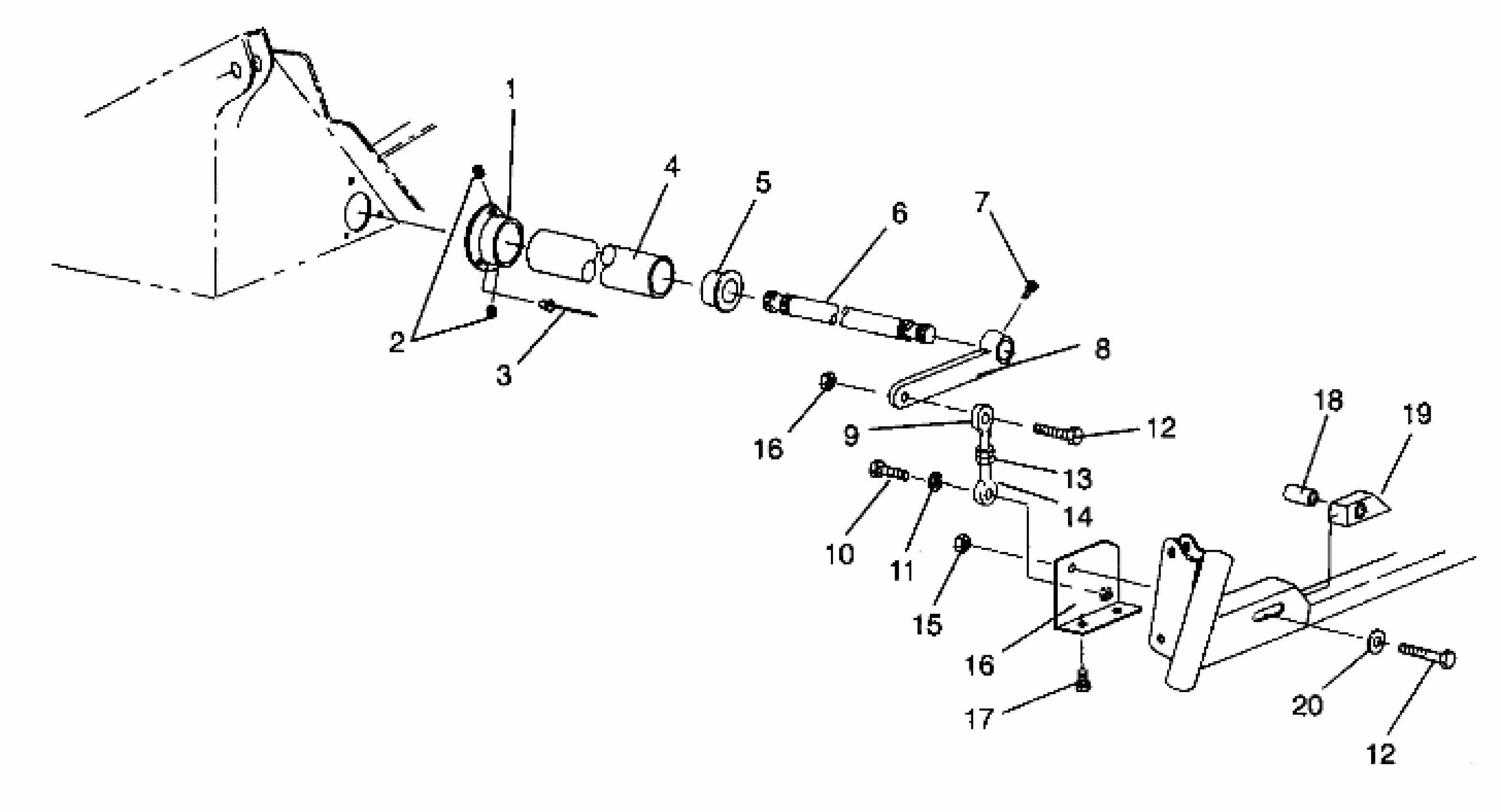

Polaris 440 XCR - 0941760 TORSION BAR ASSEMBLY 440 XCR 0941760 (4925182518013A) Diagram

BUSHING,TORS.BAR,SPT.MACH.

SCREW, SET(10)

RIVET,(50)

HOUSING,TUBE,BLK.

BUSHING,T'BAR HSG.

TORSIONBAR Substituted by 1822534

SCREW(10)

TORSIONBAR ARM,MACH.

ROD END, RH Substituted by 1822179

BOLT(10)

WASHER SPRINGLOCK(10) Substituted by 7552603

BOLT(10) Substituted by 7517583

BOLT(10) Substituted by 7517583

NUT HEX(10)

ROD END RH Substituted by 7060165

NUT, NYLOC(10)

BRKT,RH TORSIONBAR,BLK.

BRKT,LH TORSIONBAR,BLK.

BRKT,RH TORSIONBAR,BLK.

BRKT,LH TORSIONBAR,BLK.

BOLT(10) Substituted by 7515197

SPACER, SLIDE

SLIDE,(FR.SUSP.)

WASHER FLAT(10)
