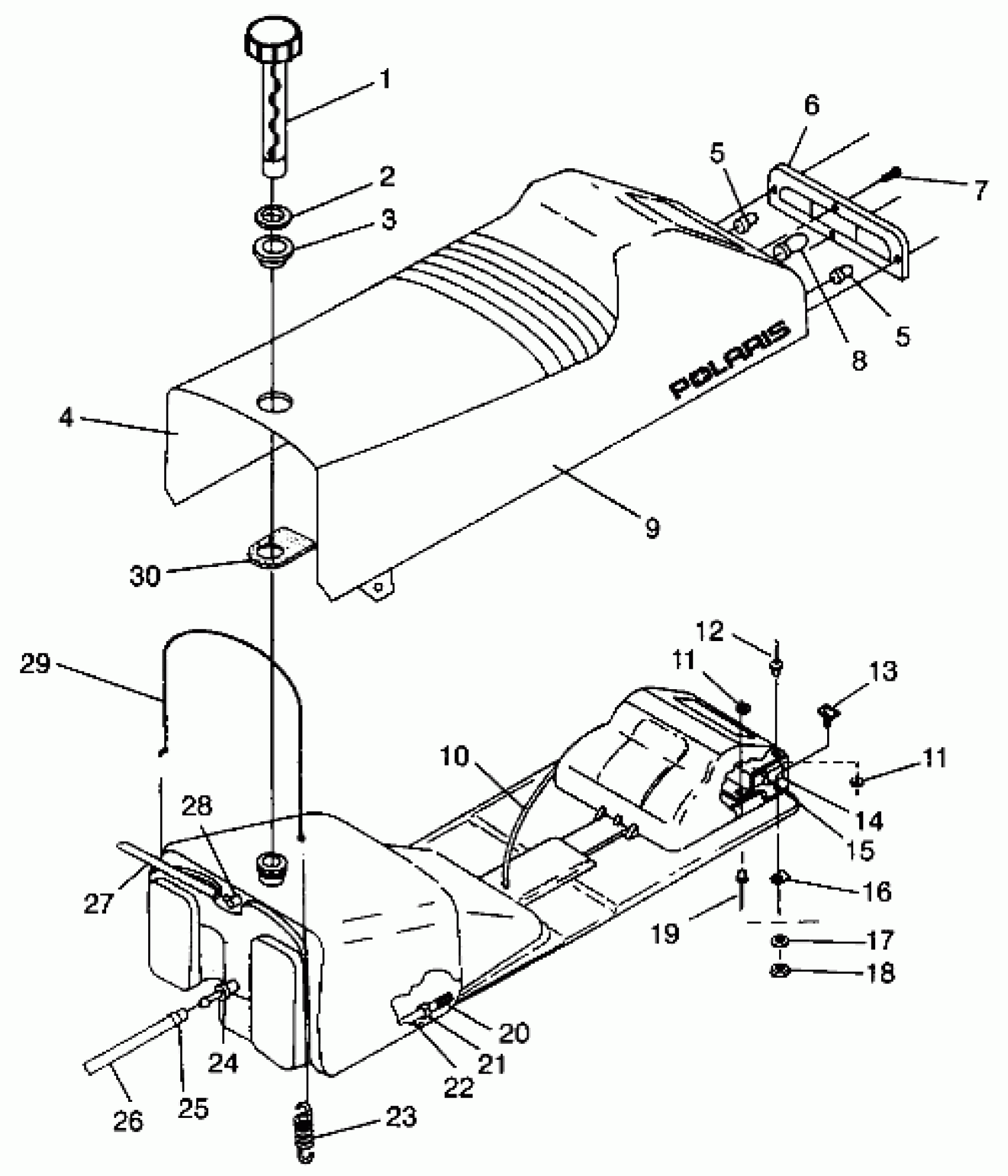

Polaris 440 XCR - 0941760 SEAT and GAS TANK ASSEMBLY 440 XCR 0941760 (4925182518002A) Diagram

#

Description
Price

1

CAP,FUEL W/GAUGE Substituted by 2511248

2511227

$44.51

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410842

Unavailable

4

SEAT CUSHION,(XCR'94) (Incl. 5-10, 13, 14, 20-22, 24, 28, 29)

2681685

Unavailable

5

BULB,TAILLIGHT(10)

4030024

$4.84

5

BULB,TAILLIGHT(10)

4030024

$4.84

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

Bulb, Brakelight

4030045

Unavailable

9

COVER,SEAT,(94XCR)

2681686

Unavailable

10

HARNESS,TAILLIGHT

2460398

Unavailable

11

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

11

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

12

RIVET, BLIND(50)

7621467

$1.49

13

MOUNT, REAR SEAT

1011855

Unavailable

14

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

15

COVER,T/L PROTECTOR

5431436

$21.43

16

SPEED NUT(10)

7670021

$6.99

17

WASHER(10)

7558301

$1.49

18

NUT-LOCK(10)

7542122

$1.49

19

RIVET(50)

7621460

$1.49

20

FUELPICKUP,W/STRAINER

7052037

$12.94

21

RING, COMPRESSION(10)

7080402

$1.60

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

SPRING-EXHAUST(10)

7042029

$4.84

24

FITTING - OUTLET(10)

7052023

$24.99

25

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

26

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

FITTING,90 DEG,1/8,(10)

7052095

$4.79

29

CABLE,TANK RETENTION

7080473

Unavailable

30

FOAM, FILLER

5810201

Unavailable
