OIL TANK/AIR BOX ASSEMBLY 440 XCR 0941760 (4925182518027A)

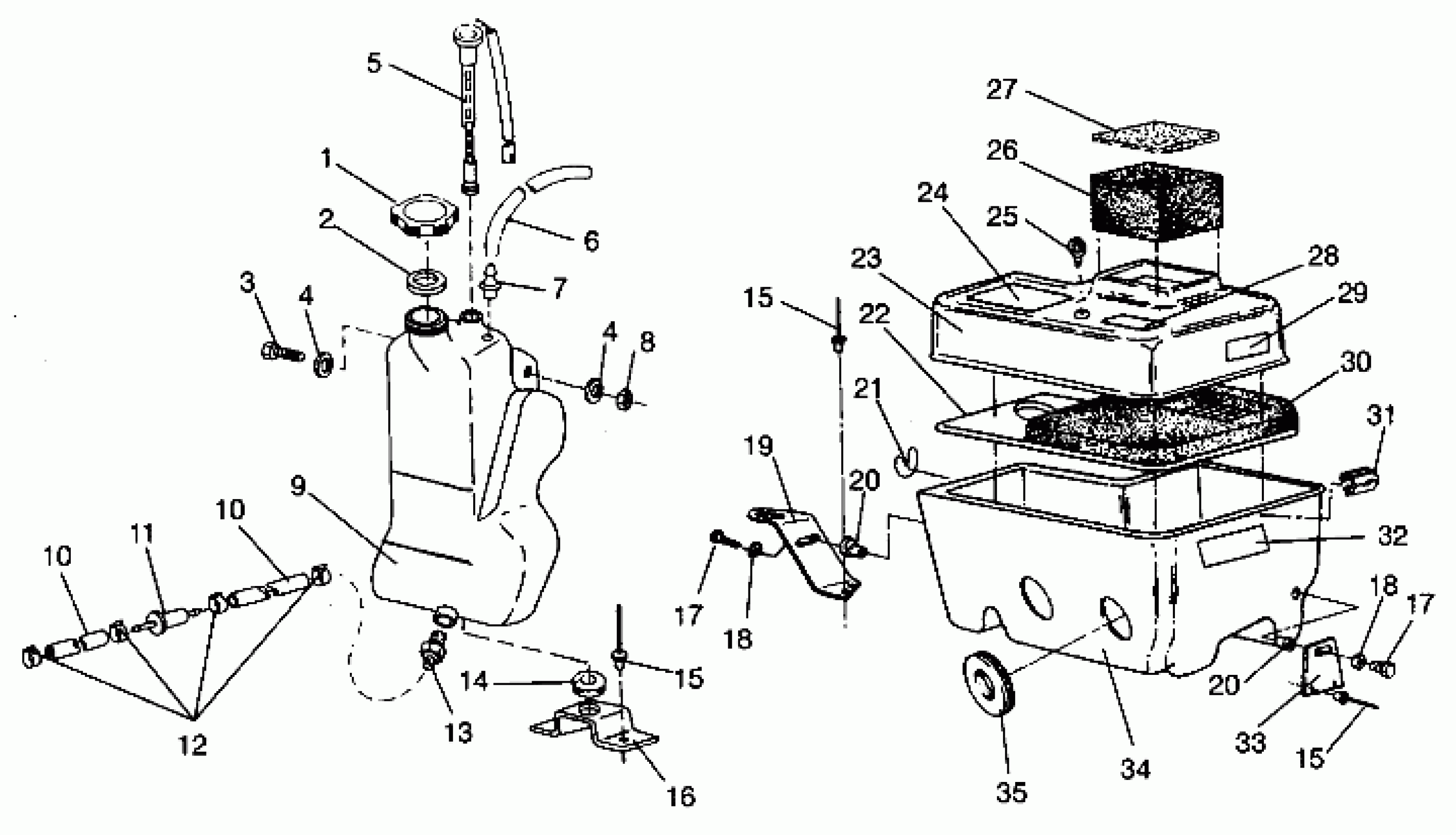

Polaris 440 XCR - 0941760 OIL TANK/AIR BOX ASSEMBLY 440 XCR 0941760 (4925182518027A) Diagram
#
1
CAP,OIL TANK
5430779
$14.56
2
GASKET-OIL CAP
5810141
$2.39
3
BOLT(10)
7512103
$3.19
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
6
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
FITTING,(10)
7052077
$6.39
8
NUT-LOCK(10)
7542122
$1.49
9
Tank, Oil
5431437
Unavailable
10
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
10
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
BRACKET
5223985
Unavailable
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
COVER, SILENCER
5430920
$61.99
24
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
FOAM, INTAKE
5810468
Unavailable
27
FOAM,INTAKE,TOP
5810457
Unavailable
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
30
BAFFLE ASM.
1253102
$64.75
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
DECAL, GREASING [No Longer Available]
7073426
$7.27
33
BRACKET, SILENCER
5211274
$9.70
34
SILENCER, DRILLED
5430955
Unavailable
35
Boot
5410271
Unavailable
