FRONT TORQUE ARM ASSEMBLY 440 XCR 0941760 (4925182518021A)

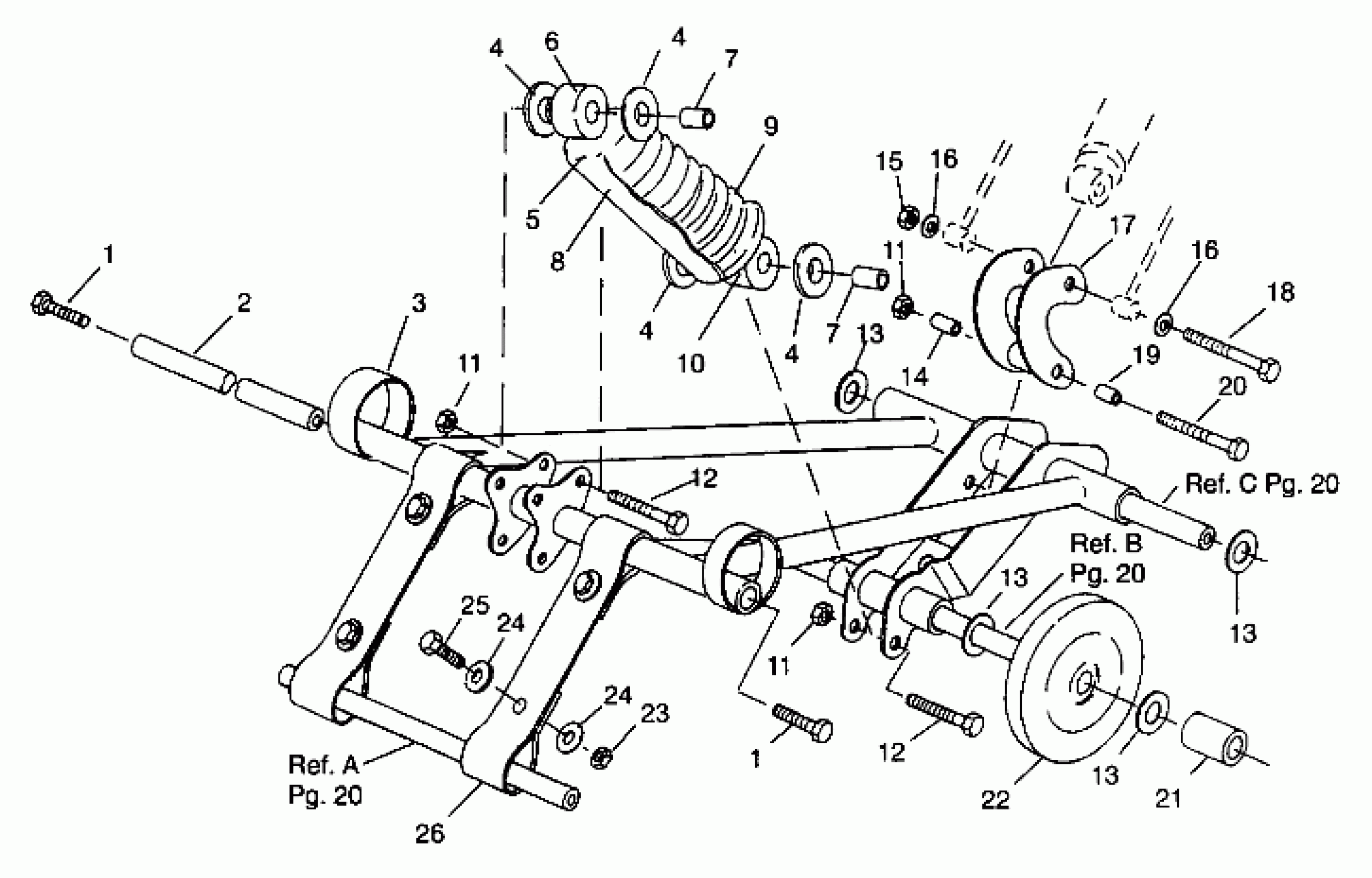

Polaris 440 XCR - 0941760 FRONT TORQUE ARM ASSEMBLY 440 XCR 0941760 (4925182518021A) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,MOUNTING
5010149
Unavailable
3
ARM,FR.TORQUE,BLK.
1540794-067
Unavailable
4
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
4
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
4
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
4
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
5
RETAINER,SPRING,SLOTTED
5020618
$24.99
6
SHOCK,GAS,MIDDLE
7041294
Unavailable
7
BUSHING, (1.24)
5020640
Unavailable
7
BUSHING, (1.24)
5020640
Unavailable
8
SHIELD-SPRING
5430671
$24.27
9
SPRING,BLACK,COMP.
7041253-067
$95.22
10
RETAINER, SPRING BODY
5020617
Unavailable
11
NUT-LOCK(10)
7542439
$1.49
11
NUT-LOCK(10)
7542439
$1.49
11
NUT-LOCK(10)
7542439
$1.49
12
BOLT(10)
7515415
$1.49
12
BOLT(10)
7515415
$1.49
13
MACHINERY BUSHING(10)
7556301
$3.19
13
MACHINERY BUSHING(10)
7556301
$3.19
13
MACHINERY BUSHING(10)
7556301
$3.19
13
MACHINERY BUSHING(10)
7556301
$3.19
14
BUSHING,PIVOT TUBE
5020561
$1.59
15
NUT FLEX LOC,(10)
7542402
$6.39
16
WASHER(10) Substituted by 7555806
7555720
$0.79
16
WASHER(10) Substituted by 7555806
7555720
$0.79
17
SHOCK ARM WELD,BLK.
1540791-067
$55.56
18
BOLT(10)
7515525
Unavailable
19
Spacer
5333028
$1.59
20
BOLT(10)
7515438
$4.79
21
SPACER, OUTER
5332784
Unavailable
22
Asm., Bogie Wheel (See Pg.A22, Ref.22)
-------
Unavailable
23
NUT-5/16-18 NYLOK-Y
7542324
$1.49
24
WASHER(10)
7555716
$1.59
24
WASHER(10)
7555716
$1.59
25
BOLT(10)
7515307
$3.99
26
STRAP, LIMITER
5410397
Unavailable
