COOLING SYSTEM 440 XCR 0941760 (4925182518014A)

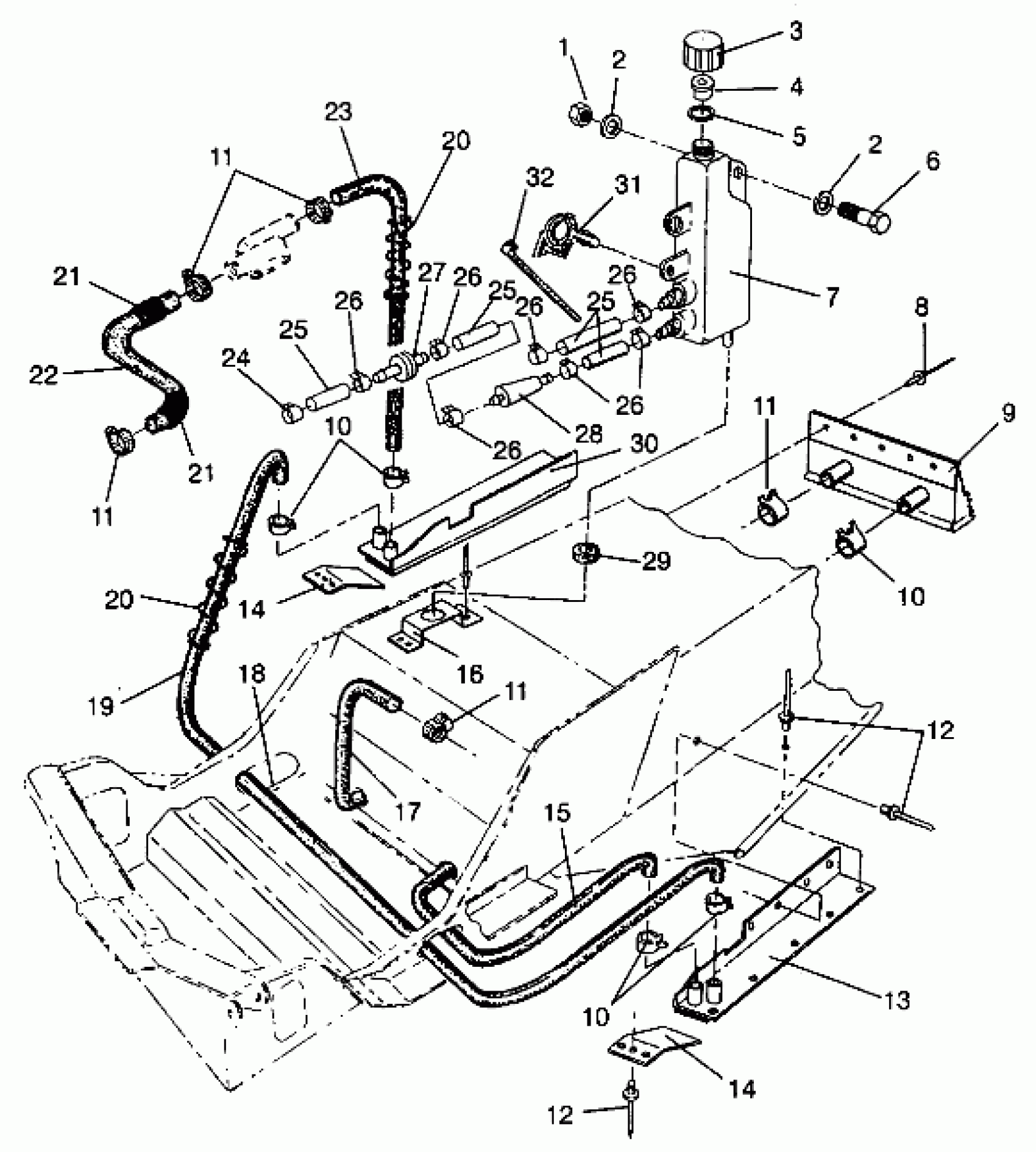

Polaris 440 XCR - 0941760 COOLING SYSTEM 440 XCR 0941760 (4925182518014A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH
2511223
$113.32
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
BRACKET
5223985
Unavailable
17
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
18
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
19
HOSE-CROSSOVER
5410324
Unavailable
20
SPRING,HOSE RETAINER
7041079
$4.95
20
SPRING,HOSE RETAINER
7041079
$4.95
21
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
21
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
22
HOSE,ENG/COOLER
5410721
Unavailable
23
HOSE,BRK.COOL.SIDE
5410705
$27.19
24
CLAMP-HOSE(10)
7080134
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
VALVE, CHECK
7052038
$10.51
28
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
29
GROMMET RUBBER
5410021
Unavailable
30
COOLING WELD,RH
2511224
Unavailable
31
CLIP, PLASTIC(10)
4020139
$4.79
32
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
