CARBURETOR ASSEMBLY 440 XCR 0941760 (4925182518036A)

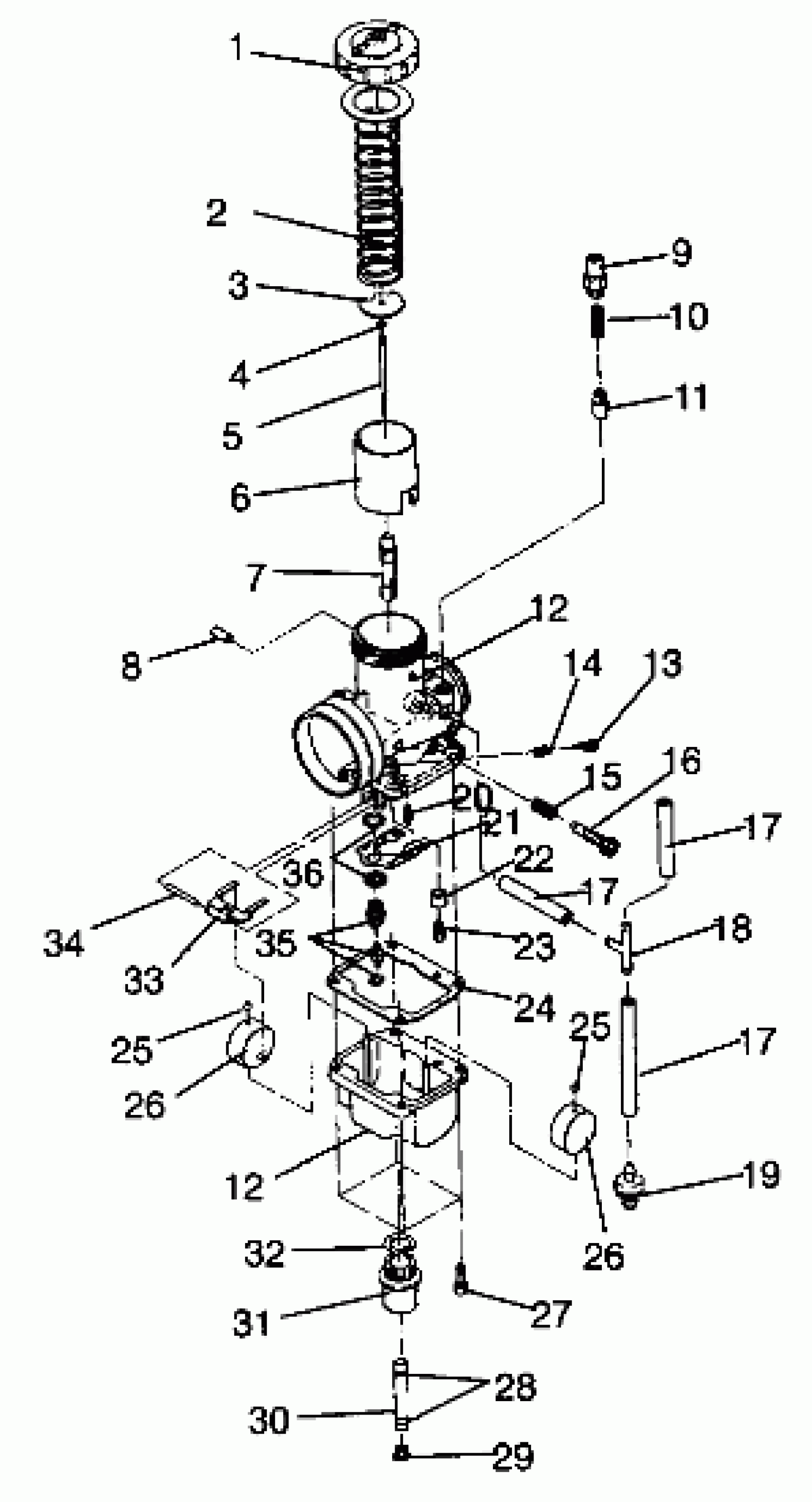

Polaris 440 XCR - 0941760 CARBURETOR ASSEMBLY 440 XCR 0941760 (4925182518036A) Diagram
#
Description
Price
1
TOP (Incl. Gasket)
3130061
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
PLATE, THROTTLE
3130054
$6.46
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE,(6DH3-3) (6DH3-3)
3130470
Unavailable
6
VALVE,THROTTLE,2.0 (2.0)
3130471
Unavailable
7
JET,NEEDLE,P-8
3130382
Unavailable
8
CAP,VACUUM FIT
3130379
$6.63
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
CARBURETOR (Incl. 1-16,20-27,31-36)
3130458
Unavailable
12
CARBURETOR (Incl. 1-16,20-27,31-36)
3130458
Unavailable
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST
3130012
$8.89
15
SPRING,THROTTLE ADJ.
3130010
$8.89
16
SCREW,THROTTLE STOP
3130009
$19.99
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
$40.46
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
$40.46
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
$40.46
18
FITTING, TEE,(10)
7052048
$3.99
19
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
20
JET,PILOT,#40(10) (#40)
3130067
$10.99
21
PLATE
3130243
Unavailable
22
RING,CARB
3130232
Unavailable
23
JET,MAIN,HX.HD#270(10) (#290)
3130130
$7.27
24
GASKET,FLOAT CHAMBER
3130236
$12.13
25
CAP,(10)
3130237
$4.03
25
CAP,(10)
3130237
$4.03
26
FLOAT ASM
3130021
$40.46
26
FLOAT ASM
3130021
$40.46
27
SCREW
3130056
$3.19
28
CLAMP-HOSE,(10)
7080236
$1.59
29
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
31
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
32
O RING
3130239
Unavailable
33
ARM,FLOAT
3130048
Unavailable
34
PIN, FLOAT Substituted by 3130361
3130235
$8.89
35
VALVE ASM,NEEDLE Substituted by 3130643 (1.5)
3130046
$56.65
36
WASHER(10)
3130047
$4.84
