TUNNEL ASSEMBLY 440 XCR / 0931760 (4923022302001A)

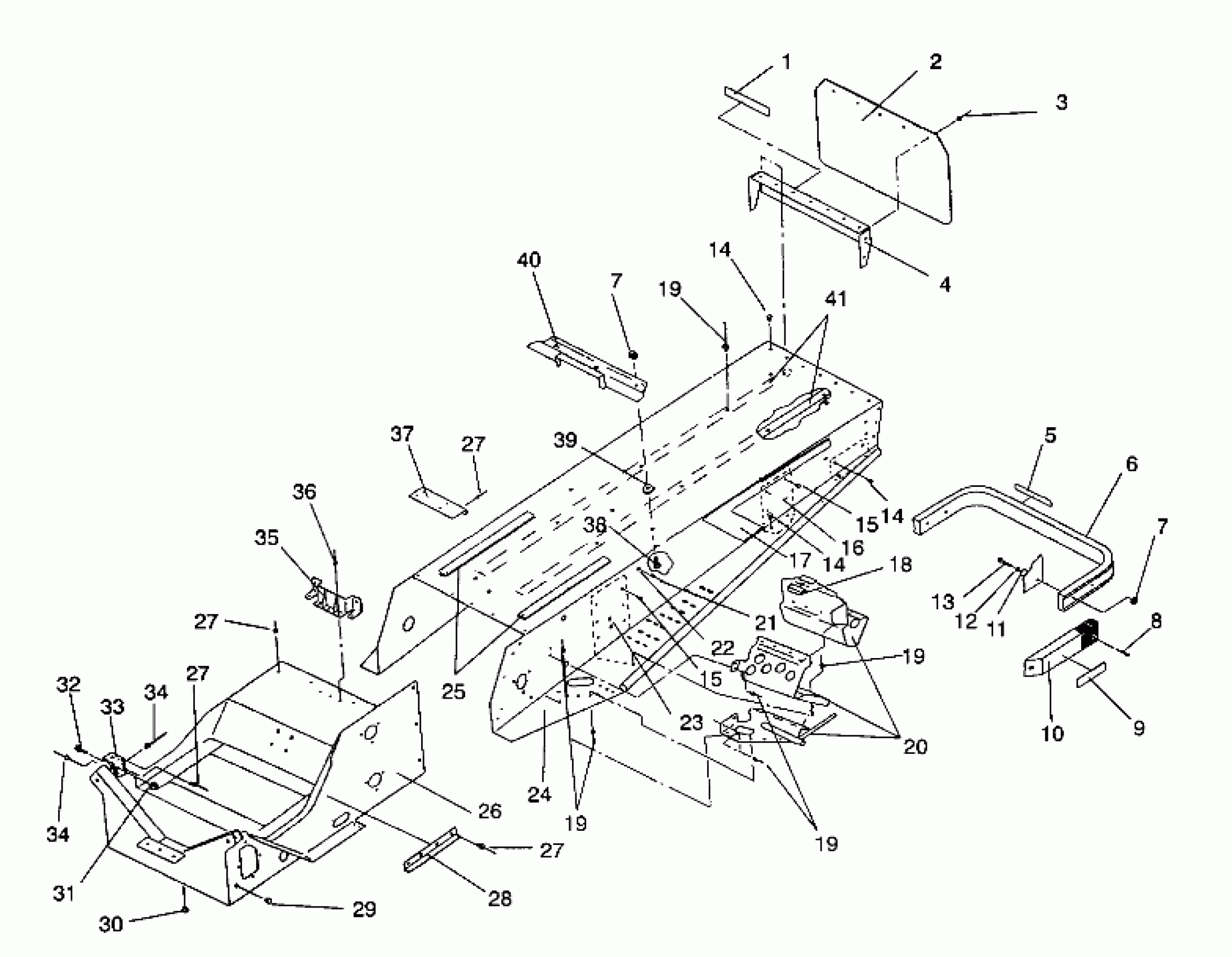

Polaris 440 XCR - 0931760 TUNNEL ASSEMBLY 440 XCR / 0931760 (4923022302001A) Diagram
#
1
DECAL,TRACK/SEAT,SILVER [No Longer Available] (Silver)
7073123
Unavailable
2
FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
5
DECAL,R.BUMPER(XCR) [No Longer Available]
7073710
Unavailable
6
BUMPER,REAR,BLK.
5224334-067
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
7
NUT-LOCK(10)
7542122
$1.49
8
SCREW(10)
7511863
$1.99
9
REFLECTOR RED
2670070
$9.91
10
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
11
WASHER(10)
7558301
$1.49
12
Desc not available [No Longer Available]
7542801
Unavailable
13
BOLT(10)
7512240
$3.99
14
RIVET ,(50)
7661829
Unavailable
14
RIVET ,(50)
7661829
Unavailable
14
RIVET ,(50)
7661829
Unavailable
15
RIVET,(50)
7661825
$1.49
15
RIVET,(50)
7661825
$1.49
16
BRKT,RH,R.SUSP.
1011858-067
Unavailable
16
BRKT,LH,R.SUSP
1011857-067
Unavailable
17
DECAL,LH TUNNEL(XCR) [No Longer Available]
7073708
Unavailable
17
DECAL,RH.TUNNEL(XCR) [No Longer Available]
7073709
Unavailable
18
EXTRUSION,CLUTCHGUARD
5521238
$6.46
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET Substituted by 7661638
7661625
$1.19
20
FOOTREST ASM, LH
1011861
Unavailable
20
FOOTREST ASM,RH,BLK.
1011892
Unavailable
21
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
22
SNAP-MALE(10)
7080227
Unavailable
23
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
24
TUNNEL, (93 XCR) (Incl. 4, 16 & 23)
1011977
Unavailable
25
PAD-GAS TANK
5810063
$4.95
26
BULKHEAD
1011876
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
GUARD
5223789
Unavailable
29
PLUG, HOLE(10)
7080416
$5.65
30
PLUG-HOLE
7080398
$4.84
31
NUT LOCK(10)
7542321
$1.49
32
SCREW(10)
7512307
$3.99
33
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
34
RIVET(50)
7621452
$1.49
34
RIVET(50)
7621452
$1.49
35
BRACKET, GASTANK
5221932-067
Unavailable
36
RIVET(50)
7621301
$3.99
37
BRKT, TOOL BOX
5220973
Unavailable
38
BOLT(10)
7512193
$2.39
39
SPEED NUT(10)
7670021
$6.99
40
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
41
STRIP-WEAR
5510130
Unavailable
