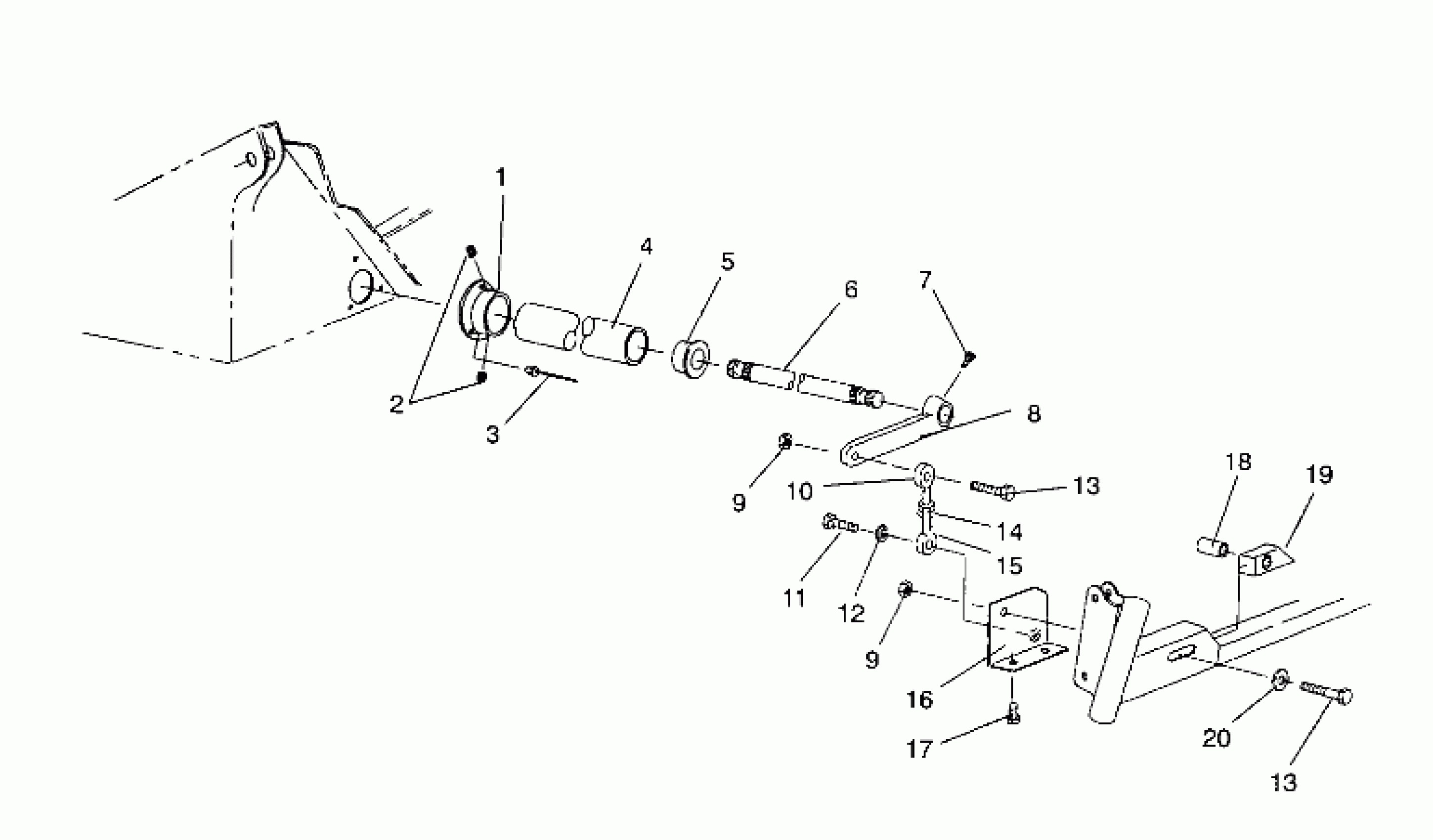

Polaris 440 XCR - 0931760 TORSION BAR ASSEMBLY 440 XCR / 0931760 (4923022302013A) Diagram

BUSHING,TORS.BAR,SPT.MACH.

5130915

Unavailable

SCREW, SET(10)

7512162

Unavailable

RIVET,(50)

7621484

Unavailable

HOUSING,TUBE,BLK.

5130888-067

$34.71

BUSHING,T'BAR HSG.

5431462

Unavailable

TORSIONBAR Substituted by 1822534

6230072

Unavailable

SCREW(10)

7515519

Unavailable

TORSIONBAR ARM,MACH.

5130887

$47.39

NUT, NYLOC(10)

7542453

Unavailable

NUT, NYLOC(10)

7542453

Unavailable

ROD END, RH Substituted by 1822179

7060149

Unavailable

BOLT(10)

7512457

$3.99

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

BOLT(10) Substituted by 7517583

7515491

Unavailable

BOLT(10) Substituted by 7517583

7515491

Unavailable

NUT HEX(10)

7542401

$2.39

ROD END RH Substituted by 7060165

7060125

$48.56

BRKT,RH TORSIONBAR,BLK.

1822108-067

$45.59

BOLT(10) Substituted by 7515197

7512286

Unavailable

SPACER, SLIDE

5333125

Unavailable

SLIDE,(FR.SUSP.)

5410385

Unavailable

WASHER FLAT(10)

7555732

Unavailable
