SUSPENSION ASSEMBLY 440 XCR / 0931760 (4923022302020A)

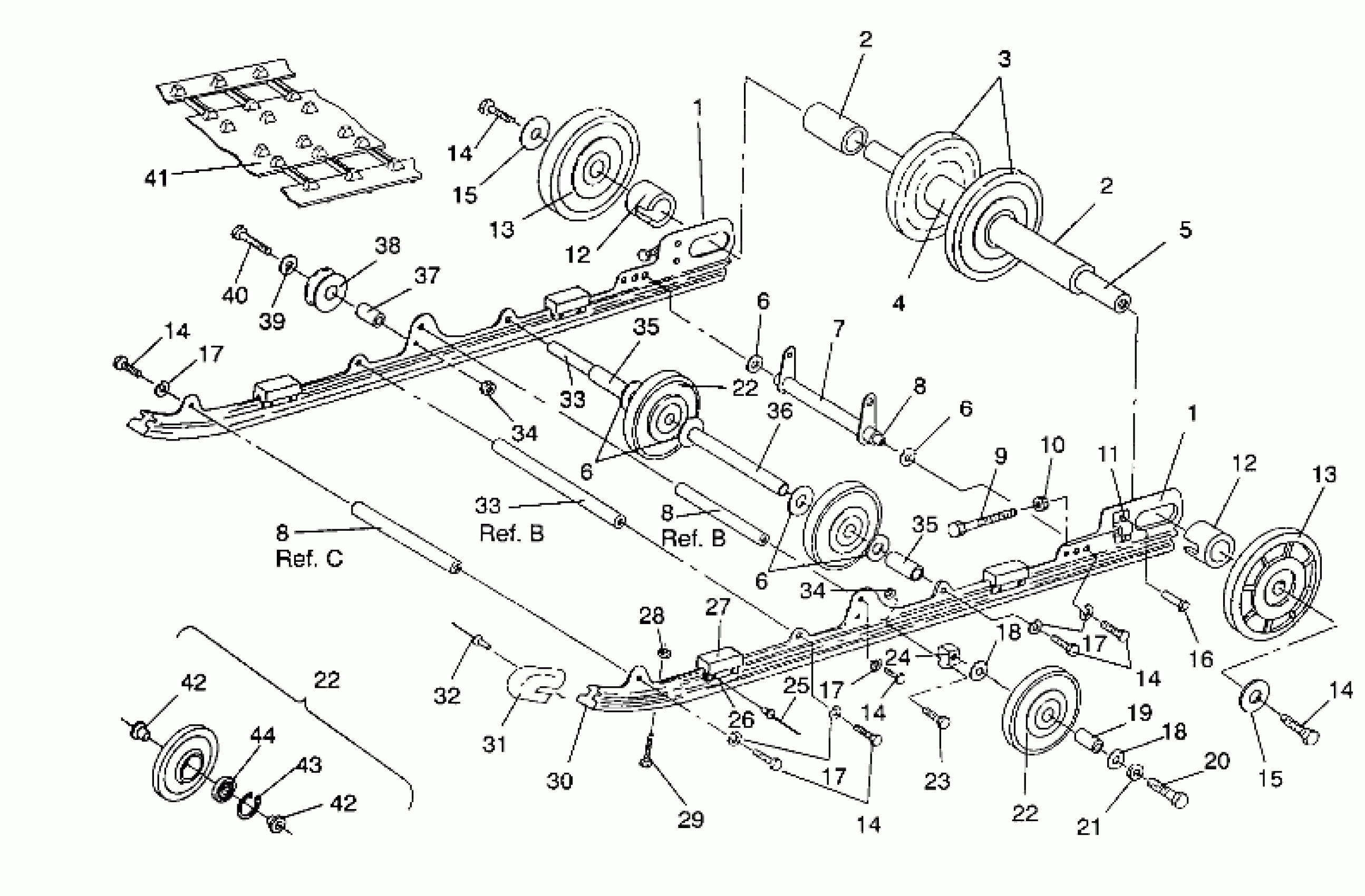

Polaris 440 XCR - 0931760 SUSPENSION ASSEMBLY 440 XCR / 0931760 (4923022302020A) Diagram
#
1
RAIL ASM,RH, SILVER (Incl. 26, 31, 27)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl. 26, 31, 27)
1540553
Unavailable
1
RAIL ASM,RH, SILVER (Incl. 26, 31, 27)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl. 26, 31, 27)
1540553
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER CTR IDLER
5010168
Unavailable
5
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM, REAR PIVOT
1540677-067
Unavailable
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
BOLT(10) Substituted by 7512492
7515458
Unavailable
15
WASHER FLAT(10)
7555732
Unavailable
15
WASHER FLAT(10)
7555732
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
WASHER(10)
7555804
$3.99
18
WASHER(10)
7555804
$3.99
19
SPACER
5332786
$7.99
20
BOLT(10)
7512659
$7.99
21
LOCK WASHER(10)
7553201
$3.99
22
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
22
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
22
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
23
BOLT(10)
7512404
$3.99
24
BRACKET,BOGIE WHEEL
5130570
$48.56
25
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
26
REINF., BUMPER
5222629
$13.75
27
BUMPER, RAIL
5810554
$7.27
28
NUT-LOCK(10)
7542122
$1.49
29
SCREW(10)
7512227
$3.19
30
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
31
COVER-RAIL TIP
5430627
$32.37
32
RIVET(50)
7621435
$1.49
33
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
33
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
34
NUT-LOCK(10)
7542439
$1.49
34
NUT-LOCK(10)
7542439
$1.49
35
SPACER, OUTER
5332784
Unavailable
35
SPACER, OUTER
5332784
Unavailable
36
TUBE, SUSPENSION
5332783
Unavailable
37
Spacer
5332787
Unavailable
38
ROLLER-SPRING
5430540
Unavailable
39
WASHER(10)
7555743
Unavailable
40
BOLT Substituted by 7515491
7515433
$1.59
41
TRACK, (400XC)
5410616
Unavailable
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
44
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
