SEAT and GAS TANK ASSEMBLY 440 XCR / 0931760 (4923022302002A)

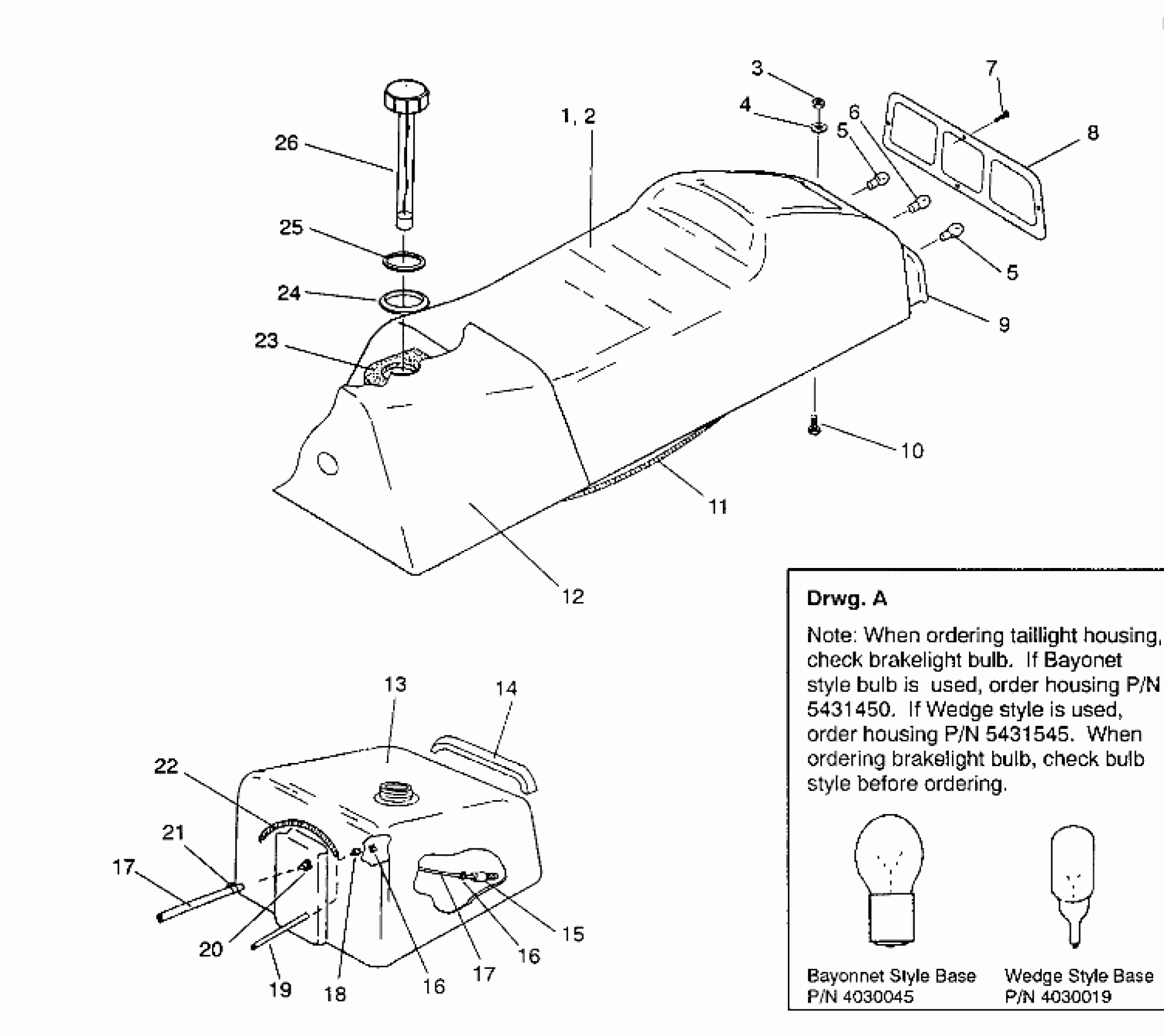

Polaris 440 XCR - 0931760 SEAT and GAS TANK ASSEMBLY 440 XCR / 0931760 (4923022302002A) Diagram
#
Description
Price
1
SEAT ASM,(93 XCR) (Incl.2, 5-9)
2681593
Unavailable
2
COVER,SEAT(93 XCR)
2681594
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
WASHER(10)
7558221
$2.39
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
BULB, BRAKELIGHT
4030019
Unavailable
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
9
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
10
BOLT(10)
7512103
$3.19
11
HARNESS,TAILLIGHT
2460370
$31.35
12
COVER,TANK(93 XCR)
2681595
Unavailable
13
TANK,GAS
2511150
Unavailable
14
CUSHION,TANK H.D.
5420126
Unavailable
15
FUELPICKUP,W/STRAINER
7052037
$12.94
16
RING, COMPRESSION(10)
7080402
$1.60
16
RING, COMPRESSION(10)
7080402
$1.60
17
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
17
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
18
FITTING,(10)
7052077
$6.39
19
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
20
FITTING - OUTLET(10)
7052023
$24.99
21
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
22
SPRING,TANK,(10)
7042020
$13.75
23
FOAM, FILLER
5810201
Unavailable
24
GROMMET-GAS TANK
5430575
Unavailable
25
GASKET, GAS CAP
5810513
$8.89
26
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
