REAR TORQUE ARM ASSEMBLY 440 XCR / 0931760 (4923022302022A)

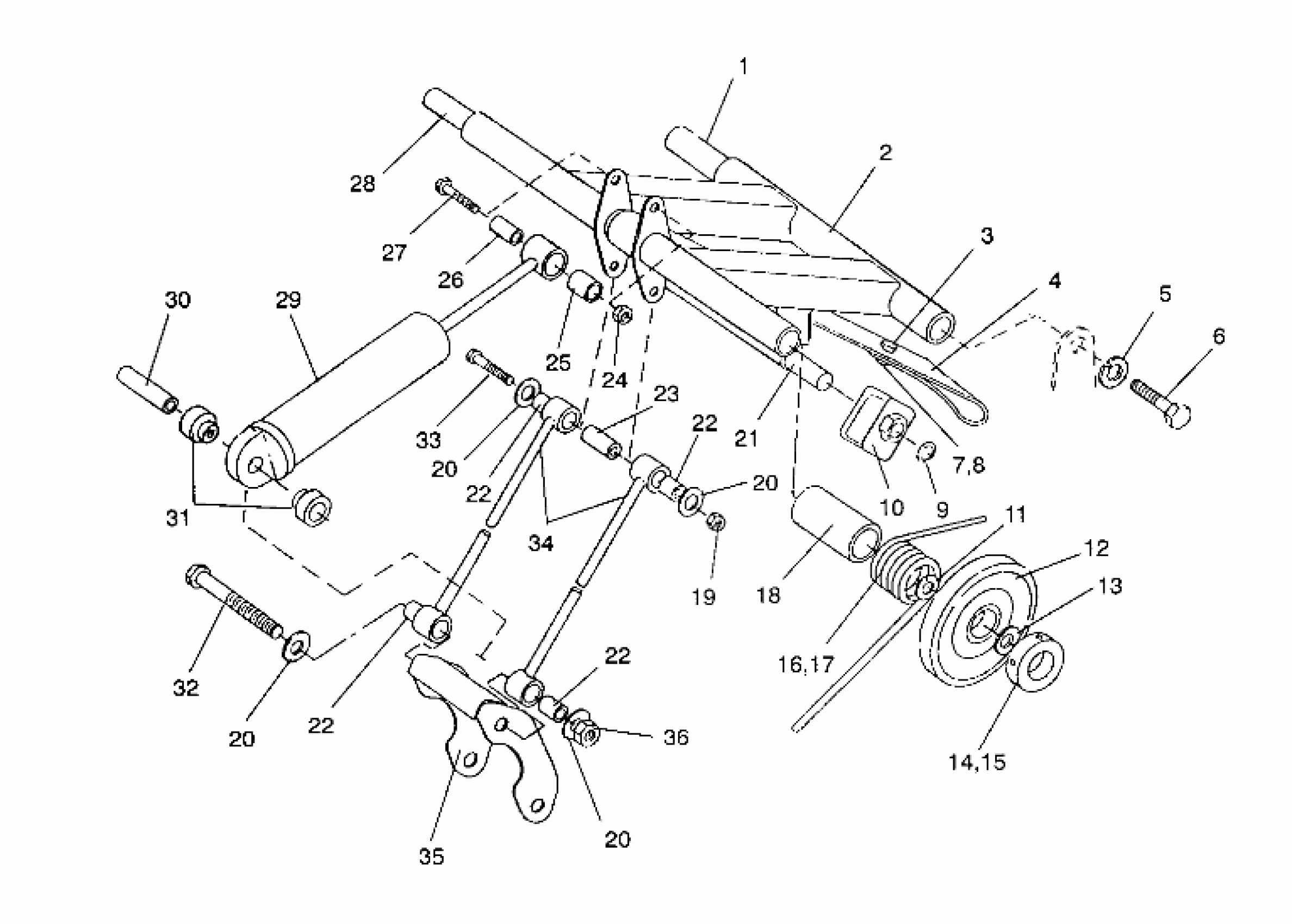

Polaris 440 XCR - 0931760 REAR TORQUE ARM ASSEMBLY 440 XCR / 0931760 (4923022302022A) Diagram
#
Description
Price
1
SHAFT,R.TORQUE ARM Substituted by 5020727
5020559
Unavailable
2
ARM,REAR TORQUE
1540678-067
Unavailable
3
BOLT(10)
7512247
$2.39
4
STRAP, LIMITER
5410587
Unavailable
5
WASHER(10)
7552603
$1.49
6
BOLT(10) Substituted by 7512492
7515458
Unavailable
7
WASHER(10)
7558221
$2.39
8
NUT, LOCK(10)
7542103
$5.59
9
CLIP-PUSH ON
7080394
$2.39
10
ROLLER, SPRING ADJ.
5431168
Unavailable
11
WASHER SPECIAL(10)
7556509
$1.59
12
Wheel, Carrier
1543023
Unavailable
13
WASHER-WAVE(10)
7571605
$6.39
14
COLLAR-BRG. LOCK
5010155
Unavailable
15
SCREW-SET(10)
7512257
$3.99
16
SPRING,LH R.SUSP. Substituted by 7041248-067
7041248
Unavailable
17
SPRING,RH R.SUSP. Substituted by 7041249-067
7041249
Unavailable
18
Tube, Spring
5521234
Unavailable
19
NUT FLEX LOC,(10)
7542402
$6.39
20
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER(10) Substituted by 7555806
7555720
$0.79
21
ROD
5130762
Unavailable
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
SPACER,R.PIVOT ARM
5333026
$3.03
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
BUSHING
5430537
$3.99
26
BUSHING,R.SHOCK
5333030
Unavailable
27
BOLT(10)
7512329
$3.99
28
SHAFT, MTG, REAR
5020570
Unavailable
29
SHOCK,GAS,REAR
7041295
Unavailable
30
BUSHING,SHOCK,(2.07 IN.)
5020623
Unavailable
31
BUSHING,SHOCK,.675
5431544
Unavailable
32
BOLT(10)
7515514
$7.19
33
SCREW(10)
7512463
$5.43
34
ROD, SUSPENSION
1540713-067
$12.70
35
ARM,PIVOT,SHOCK,BLK.
1540714-067
$33.33
36
NUT-LOCK(10) NOTE: For Fox Shock replacement parts, see page 26.
7542439
$1.49
