OIL TANK / AIR BOX ASSEMBLY 440 XCR / 0931760 (4923022302027A)

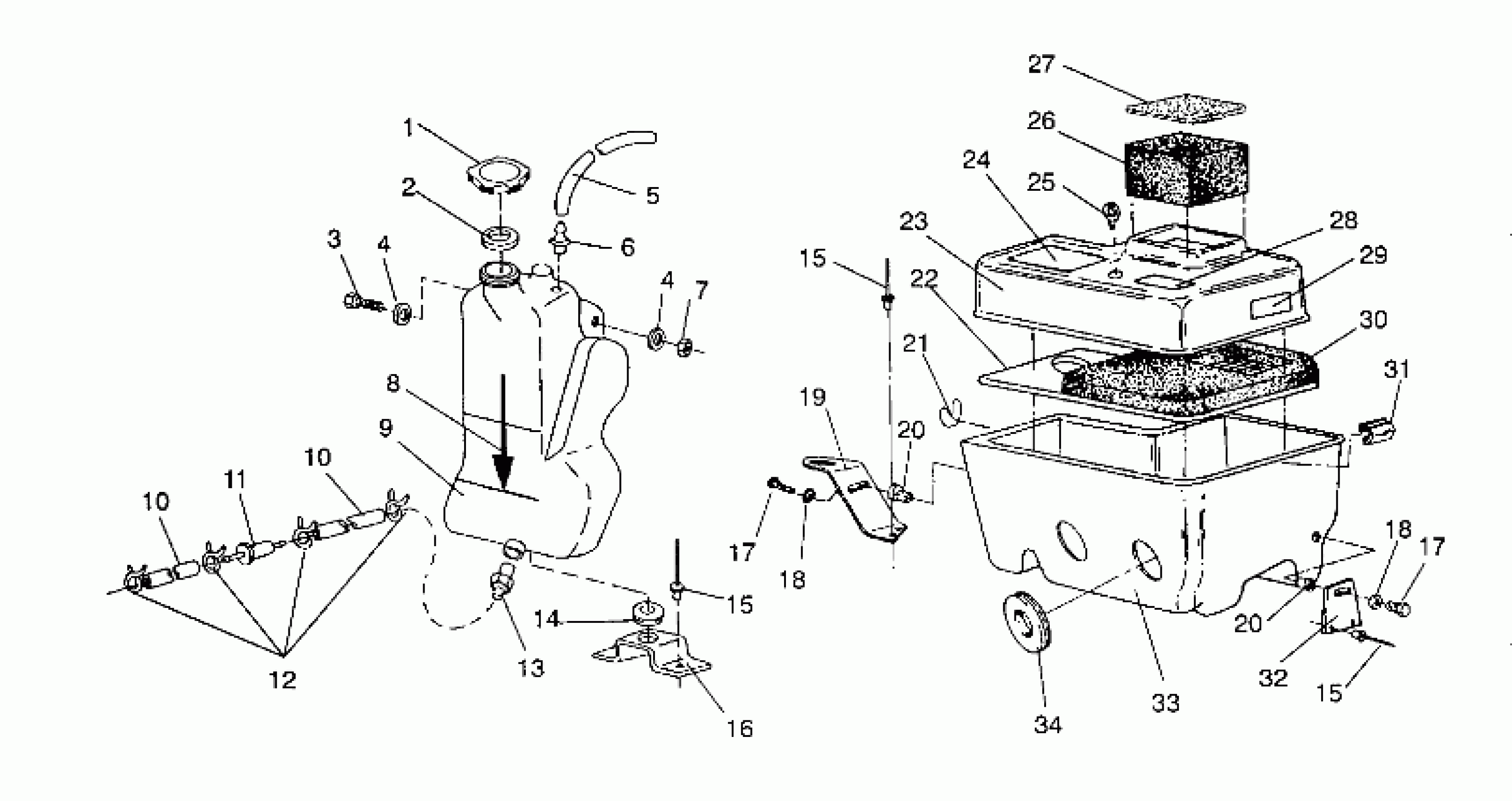

Polaris 440 XCR - 0931760 OIL TANK / AIR BOX ASSEMBLY 440 XCR / 0931760 (4923022302027A) Diagram
#
Description
Price
1
CAP,OIL TANK
5430779
$14.56
2
GASKET-OIL CAP
5810141
$2.39
3
BOLT(10)
7512103
$3.19
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
KIT-TANK VENT
2200190
Unavailable
6
FITTING,(10)
7052077
$6.39
7
NUT-LOCK(10)
7542122
$1.49
8
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
9
TANK, OIL
5430921
Unavailable
10
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
10
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
11
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
12
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
BRACKET
5223985
Unavailable
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
COVER, SILENCER
5430920
$61.99
24
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
FOAM, INTAKE
5810468
Unavailable
27
FOAM,INTAKE,TOP
5810457
Unavailable
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM.
1253102
$64.75
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRACKET, SILENCER
5211274
$9.70
33
SILENCER, DRILLED
5430955
Unavailable
34
Boot
5410271
Unavailable
