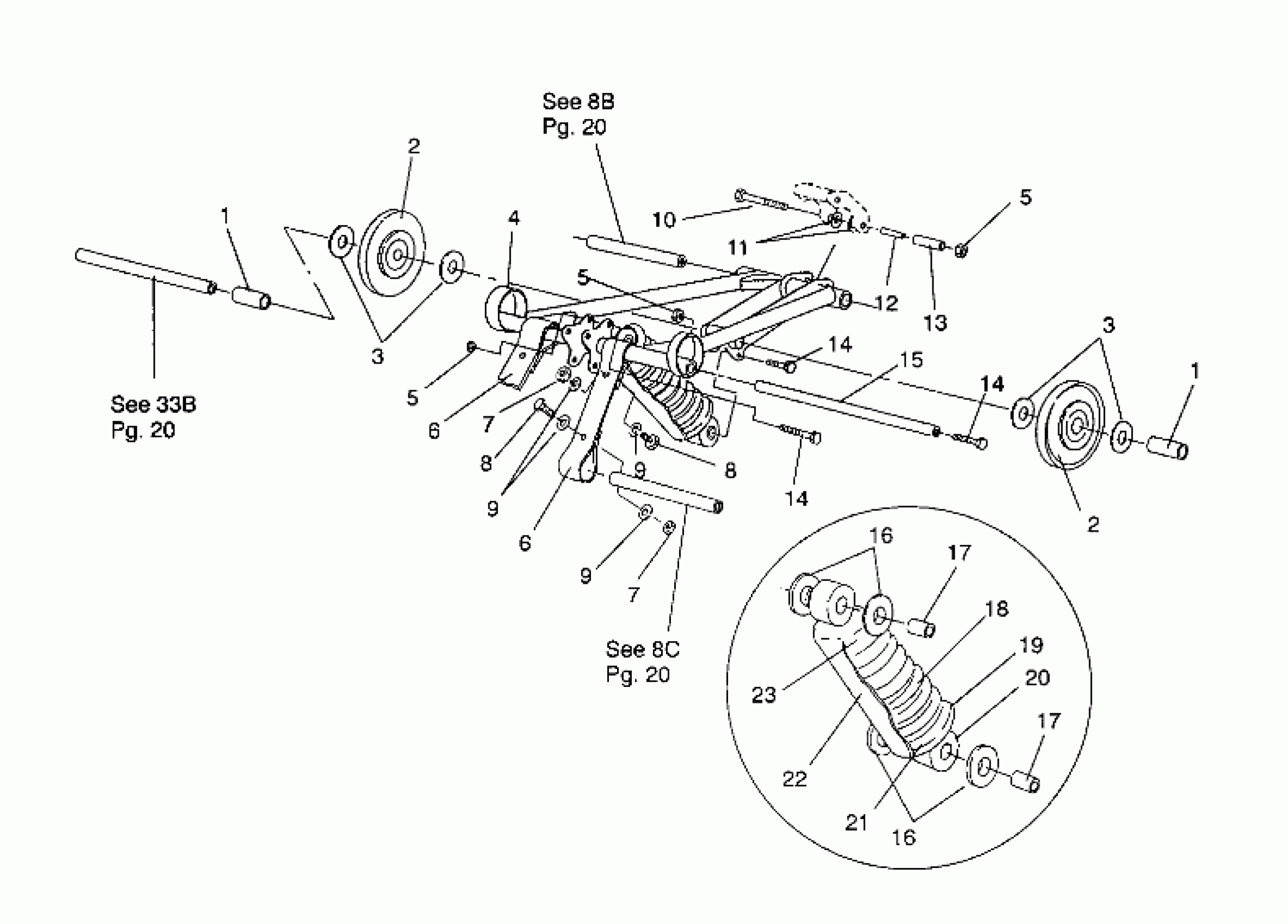

FRONT TORQUE ARM ASSEMBLY 440 XCR / 0931760 (4923022302021A)
Polaris 440 XCR - 0931760 FRONT TORQUE ARM ASSEMBLY 440 XCR / 0931760 (4923022302021A) Diagram
#
Description
Price
1
SPACER, OUTER
5332784
Unavailable
1
SPACER, OUTER
5332784
Unavailable
2
WHEEL, IDLER
1543018
$56.65
2
WHEEL, IDLER
1543018
$56.65
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
ARM,FRONT TORQUE
1540689-067
Unavailable
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
6
STRAP, LIMITER
5410397
Unavailable
6
STRAP, LIMITER
5410397
Unavailable
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
BOLT(10)
7515307
$3.99
8
BOLT(10)
7515307
$3.99
9
WASHER(10)
7555716
$1.59
9
WASHER(10)
7555716
$1.59
9
WASHER(10)
7555716
$1.59
10
SCREW(10)
7515509
$1.49
11
WSHR-.813X.406X.105-Y
7555832
$2.39
12
BUSHING,PIVOT TUBE
5020561
$1.59
13
Spacer
5333028
$1.59
14
BOLT(10)
7515415
$1.49
14
BOLT(10)
7515415
$1.49
14
BOLT(10)
7515415
$1.49
15
SHAFT,MOUNTING
5010149
Unavailable
16
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
16
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
17
BUSHING, (1.24)
5020640
Unavailable
17
BUSHING, (1.24)
5020640
Unavailable
18
SPRING,BLACK,COMP.
7041253-067
$95.22
19
RETAINER, SPRING BODY
5020617
Unavailable
20
SHOCK,GAS,MIDDLE
7041294
Unavailable
21
RING, RETAINING(10)
7710424
$0.63
22
SHIELD-SPRING
5430671
$24.27
23
RETAINER,SPRING,SLOTTED NOTE: For Fox Shock replacement parts, see page 26.
5020618
$24.99
