Description

Price

1

CONSOLE

5222756-067

Unavailable

2

KIT,CHOKE CONTROL

2200189

$20.22

3

CABLE, CHOKE

7080283

$109.99

4

SW,HEATER,HI-LOW

4110077

Unavailable

4

SW,HEATER,HI-LOW

4110077

Unavailable

5

Housing w/Receptacle

4020057

$3.51

6

HARNESS, MAIN WIRE

2460371

Unavailable

7

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

8

NUT(10)

7541925

$1.49

9

REGULATOR, VOLTAGE

4060092

Unavailable

10

HEAT SINK

5210650

Unavailable

11

SCREW(10)

7512007

$3.99

12

RIVET Substituted by 7661638

7661625

$1.19

12

RIVET Substituted by 7661638

7661625

$1.19

13

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

14

KIT,IGN. SWITCH (Incl.13 )

2200357

Unavailable

15

Nut

7080229

$19.99

16

WASHER-LOCK(10)

7571610

$3.99

17

RIVET,(50)

7621477

$1.19

18

GUIDE, RECOIL

5431385

$10.51

19

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on underside of switch body behind console.

5222682-067

Unavailable

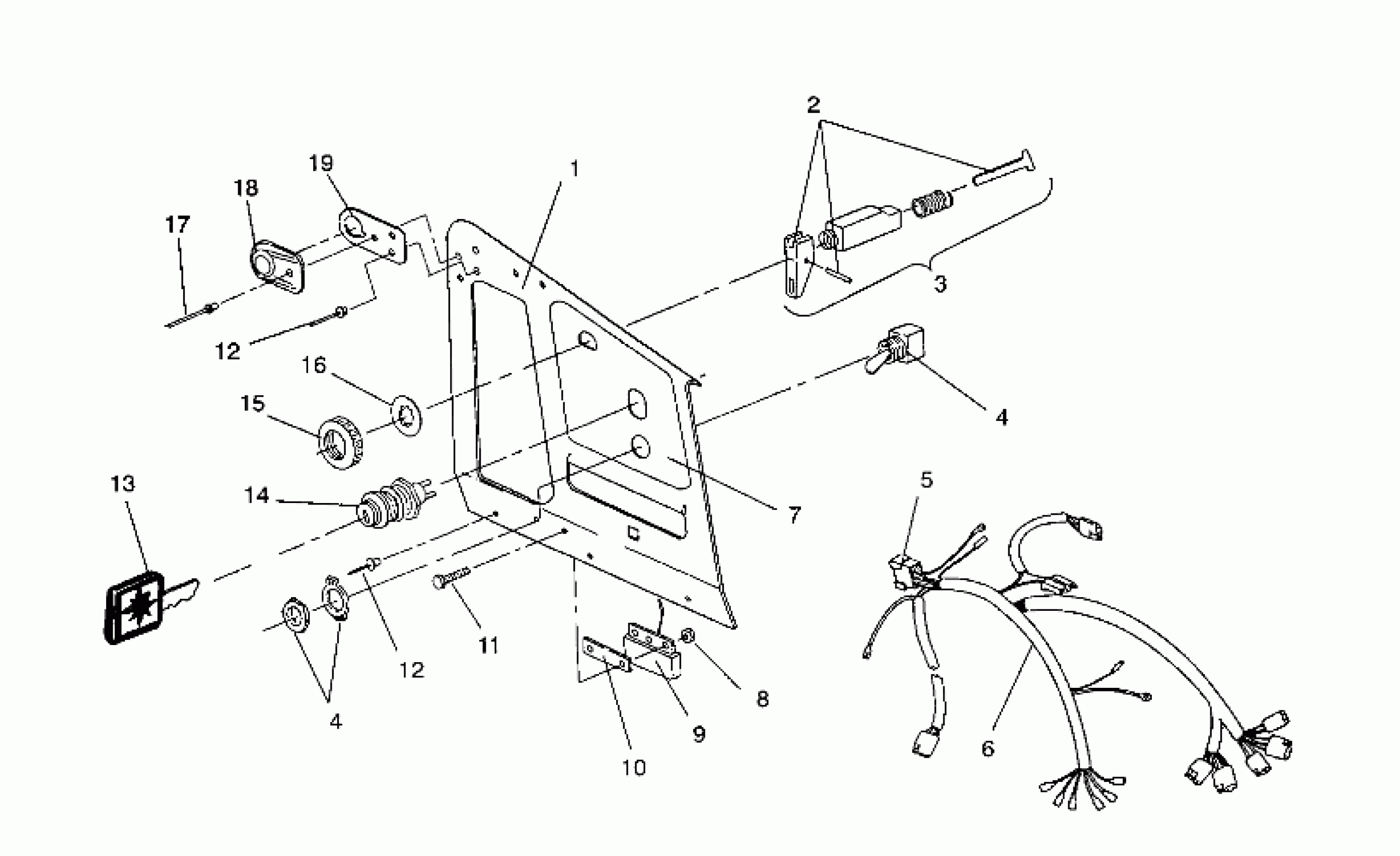

Polaris 440 XCR - 0931760 CONSOLE 440 XCR / 0931760 (4923022302009A) Diagram

CONSOLE

KIT,CHOKE CONTROL

CABLE, CHOKE

SW,HEATER,HI-LOW

SW,HEATER,HI-LOW

Housing w/Receptacle

HARNESS, MAIN WIRE

DECAL, CONSOLE [No Longer Available]

NUT(10)

REGULATOR, VOLTAGE

HEAT SINK

SCREW(10)

RIVET Substituted by 7661638

RIVET Substituted by 7661638

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

KIT,IGN. SWITCH (Incl.13 )

Nut

WASHER-LOCK(10)

RIVET,(50)

GUIDE, RECOIL

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on underside of switch body behind console.
