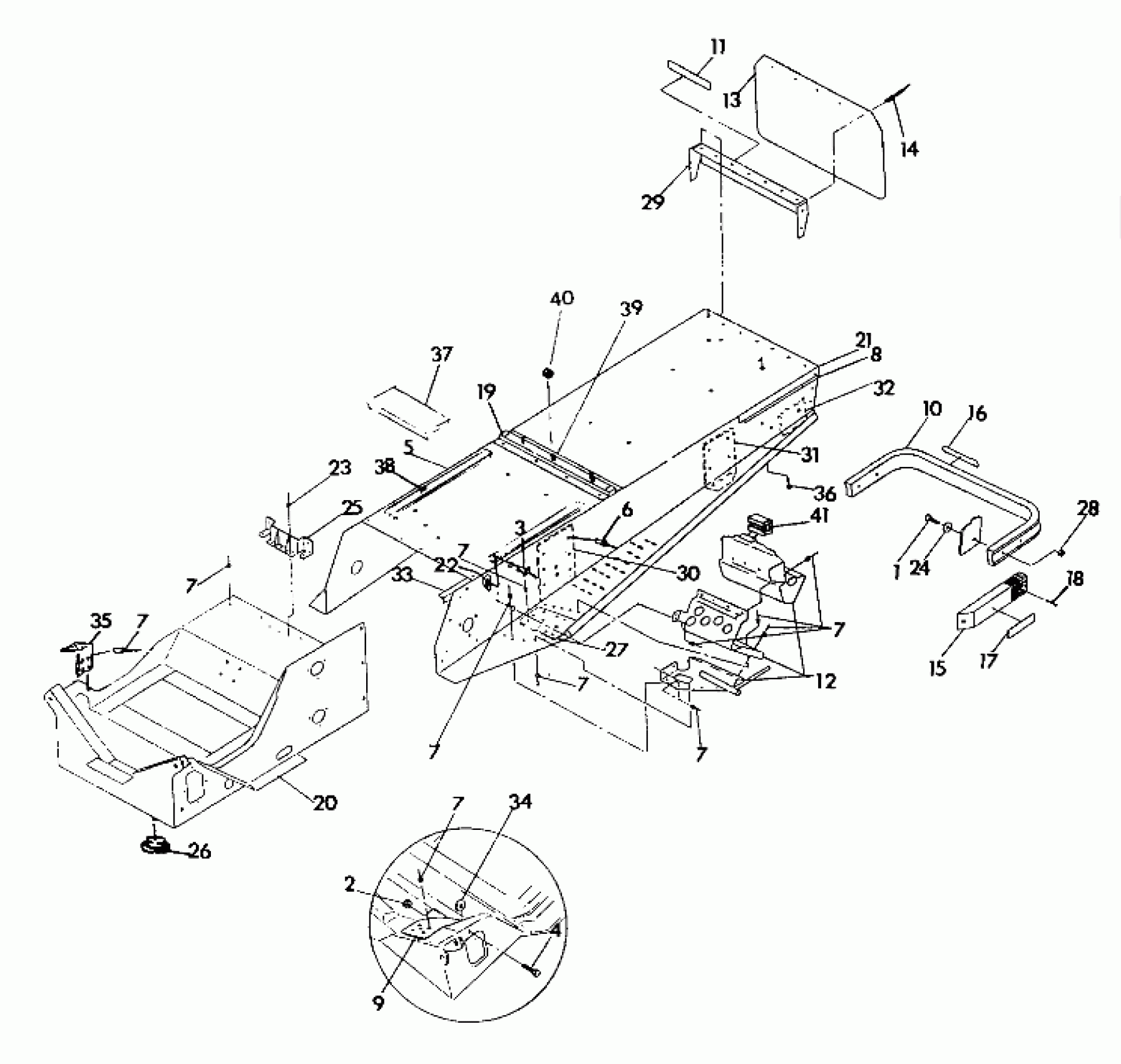

Polaris 440 XCR - 0921760 TUNNEL ASSEMBLY 440 XCR (4921352135001A) Diagram
#
1
BOLT(10)
7512240
$3.99
2
NUT LOCK(10)
7542321
$1.49
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
4
BOLT(10)
7515307
$3.99
5
TUNNEL ASM, (XCR) Substituted by 1011808
1011823
Unavailable
6
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
DECAL,LH TUNNEL'440' [No Longer Available]
7073202
Unavailable
8
DECAL,RH TUNNEL'440' [No Longer Available]
7073203
Unavailable
9
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
9
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
10
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
11
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
12
FOOTREST ASM,LH
2200250
Unavailable
12
FOOTREST ASM,RH
2200254
Unavailable
13
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
14
POP RIVET(50)
7621418
$1.49
15
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
16
DECAL,(24'')R.BUMPER [No Longer Available]
7073235
Unavailable
17
REFLECTOR RED
2670070
$9.91
18
SCREW(10)
7511863
$1.99
19
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
20
BULKHEAD,(500),BLK.
1011743-067
Unavailable
21
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
22
SNAP-MALE(10)
7080227
Unavailable
23
RIVET(50)
7621301
$3.99
24
WASHER(10)
7558301
$1.49
25
BRACKET, GASTANK
5221932-067
Unavailable
26
PLUG, HOLE(10)
7080416
$5.65
27
PLATE,TUNNEL,LH
5220634
Unavailable
27
PLATE,TUNNEL,RH
5220635
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
30
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
31
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
31
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
33
BRACE,TUNNEL REINF.
5222412
Unavailable
34
WASHER FLAT(10) (L.H. Only)
7555701
$3.99
35
SUPPORT, MUFFLER, BLACK
1011831-067
Unavailable
36
BOLT(10)
7512103
$3.19
37
BRKT, TOOL BOX
5220973
Unavailable
38
PAD-GAS TANK
5810063
$4.95
39
BOLT(10)
7512193
$2.39
40
EXTRUSION,CLUTCHGUARD
5521238
$6.46
