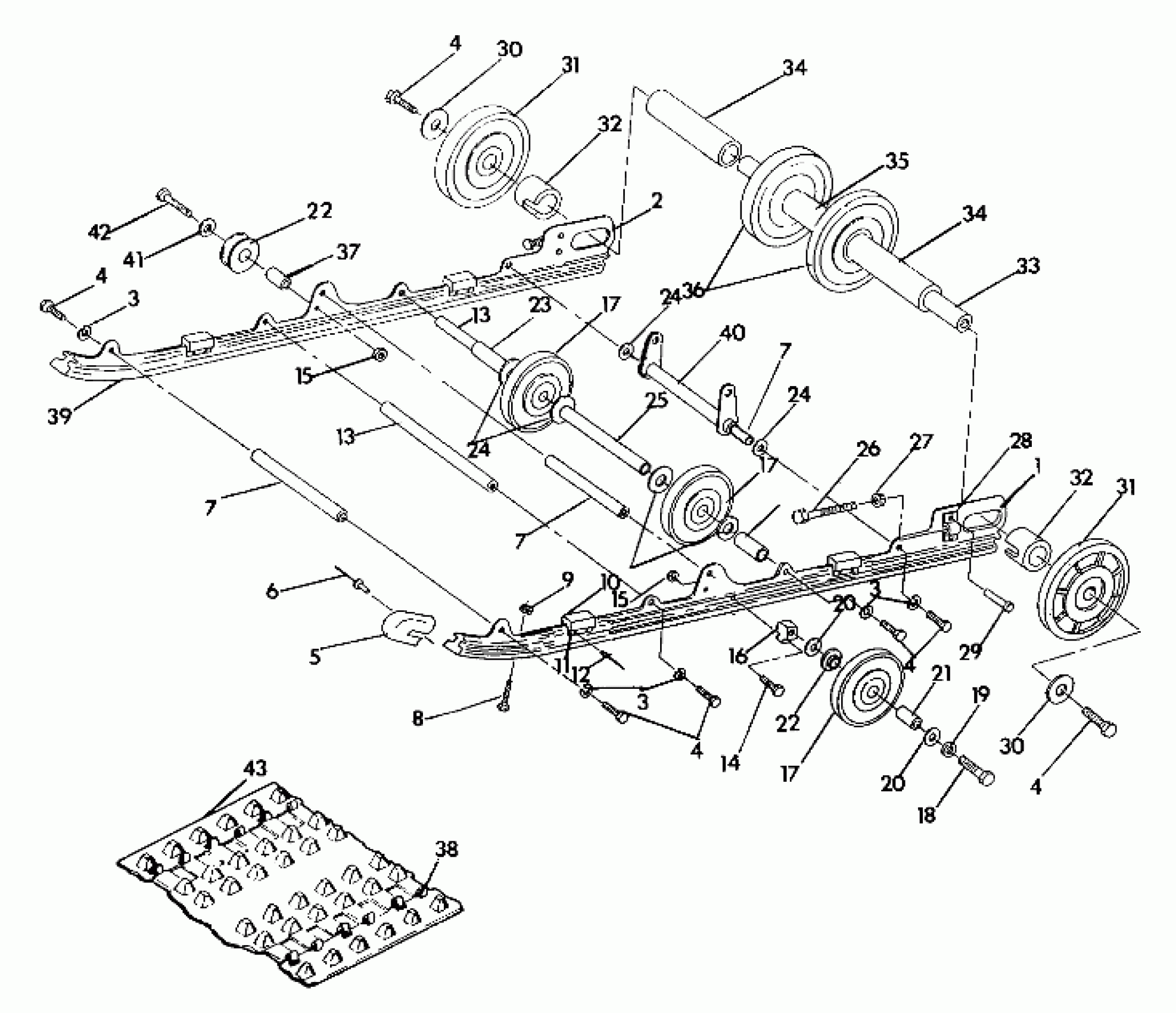

Polaris 440 XCR - 0921760 SUSPENSION 440 XCR (4921352135025A) Diagram
#
1
RAIL ASM, LH,SILVER
1540553
Unavailable
2
RAIL ASM,RH, SILVER
1540554
Unavailable
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
5
COVER-RAIL TIP
5430627
$32.37
6
RIVET(50)
7621435
$1.49
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
7
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SCREW(10)
7512227
$3.19
9
NUT-LOCK(10)
7542122
$1.49
10
BUMPER, RAIL
5810554
$7.27
11
REINF., BUMPER
5222629
$13.75
12
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
13
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
13
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
14
BOLT(10)
7512404
$3.99
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
16
BRACKET,BOGIE WHEEL
5130570
$48.56
17
WHEEL, IDLER
1543018
$56.65
17
WHEEL, IDLER
1543018
$56.65
17
WHEEL, IDLER
1543018
$56.65
18
BOLT(10)
7512659
$7.99
19
LOCK WASHER(10)
7553201
$3.99
20
WASHER(10)
7555804
$3.99
20
WASHER(10)
7555804
$3.99
21
SPACER
5332786
$7.99
22
ROLLER-SPRING
5430540
Unavailable
22
ROLLER-SPRING
5430540
Unavailable
23
SPACER, OUTER
5332784
Unavailable
24
MACHINERY BUSHING(10)
7556301
$3.19
24
MACHINERY BUSHING(10)
7556301
$3.19
24
MACHINERY BUSHING(10)
7556301
$3.19
25
TUBE, SUSPENSION
5332783
Unavailable
26
BOLT, ADJUSTER(10)
7515455
$29.99
27
NUT(10)
7542440
Unavailable
28
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
29
RIVET,(50)
7621501
$2.39
30
WASHER FLAT(10)
7555732
Unavailable
30
WASHER FLAT(10)
7555732
Unavailable
31
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
31
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
32
SPACER-IDLER-OUTER
5332641
Unavailable
32
SPACER-IDLER-OUTER
5332641
Unavailable
33
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
34
SPACER INNER IDLER
5010169
Unavailable
34
SPACER INNER IDLER
5010169
Unavailable
35
SPACER CTR IDLER
5010168
Unavailable
36
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
37
Spacer
5332787
Unavailable
38
CLIP, GUIDE
5222649
Unavailable
39
SLIDE,RED,(HIFAX) Substituted by 5521321 (Red)
5521104
$40.46
39
SLIDE,BLACK,(HIFAX) Substituted by 5521320 (Black)
5521086
Unavailable
40
ARM, REAR PIVOT
1540677-067
Unavailable
41
WASHER(10)
7555743
Unavailable
42
BOLT Substituted by 7515491
7515433
$1.59
43
TRACK, (400XC)
5410616
Unavailable
43
SLIDER,BLUE(2) Substituted by 5521461-107
5521322
$23.81
43
CLIP, GUIDE
5222649
Unavailable
