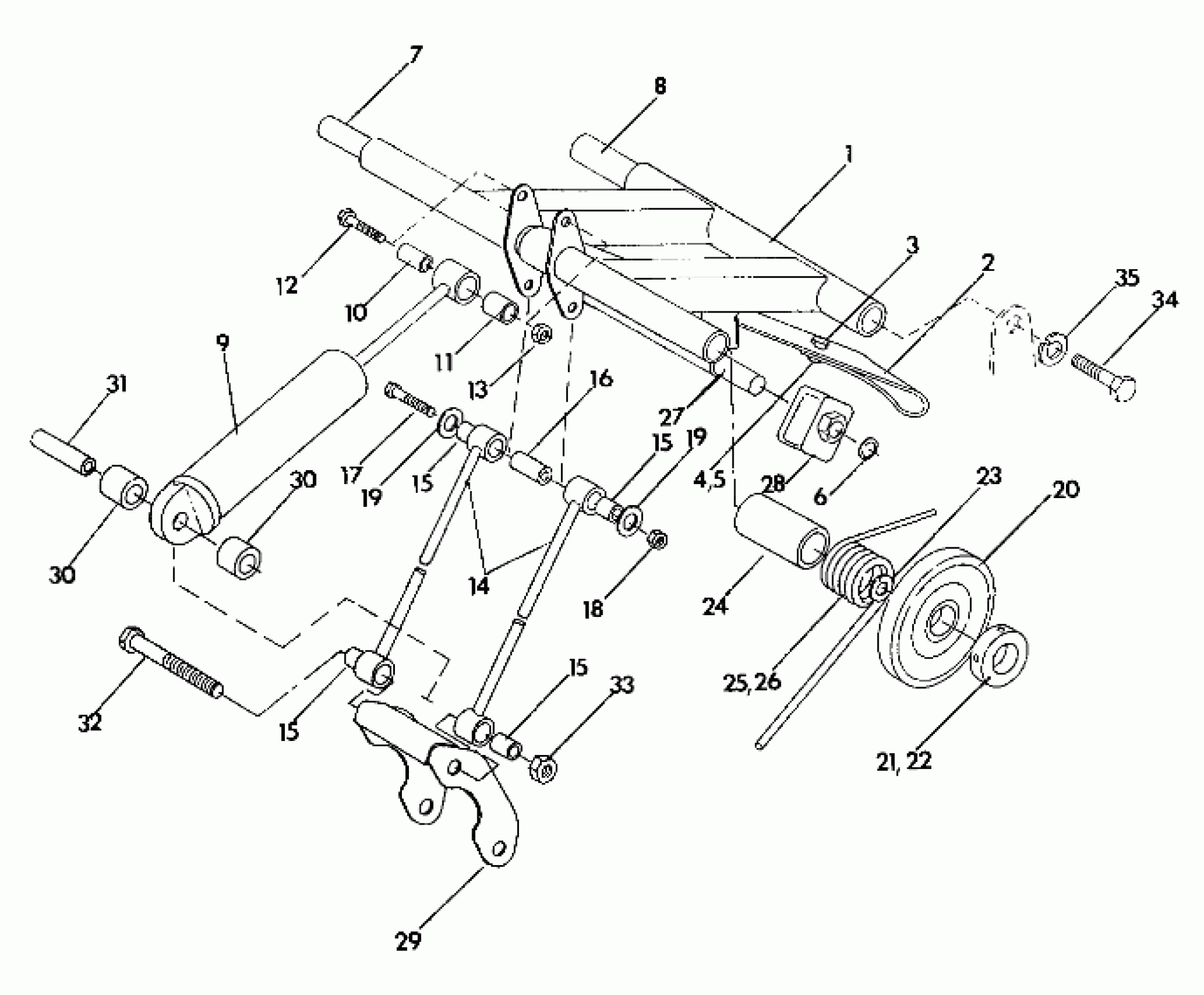

Polaris 440 XCR - 0921760 REAR TORQUE ARM 440 XCR (4921352135028A) Diagram
#
Description
Price
1
ARM,REAR TORQUE
1540678-067
Unavailable
2
STRAP, LIMITER
5410587
Unavailable
3
BOLT(10)
7512247
$2.39
4
WASHER(10)
7558221
$2.39
5
NUT, LOCK(10)
7542103
$5.59
6
CLIP-PUSH ON
7080394
$2.39
7
SHAFT, MTG, REAR
5020570
Unavailable
8
SHAFT,R.TORQUE ARM Substituted by 5020727
5020559
Unavailable
9
SHOCK, GAS Substituted by 2870979
7041267
Unavailable
10
BUSHING,R.SHOCK
5333030
Unavailable
11
BUSHING
5430537
$3.99
12
BOLT(10)
7512329
$3.99
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
ROD, SUSPENSION
1540713-067
$12.70
15
BUSHING,PIVOT TUBE
5020561
$1.59
15
BUSHING,PIVOT TUBE
5020561
$1.59
15
BUSHING,PIVOT TUBE
5020561
$1.59
15
BUSHING,PIVOT TUBE
5020561
$1.59
16
SPACER,R.PIVOT ARM
5333026
$3.03
17
SCREW(10)
7512463
$5.43
18
NUT FLEX LOC,(10)
7542402
$6.39
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
Wheel, Carrier
1543023
Unavailable
21
COLLAR-BRG. LOCK
5010155
Unavailable
22
SCREW-SET(10)
7512257
$3.99
23
WASHER-WAVE(10)
7571605
$6.39
24
Tube, Spring
5521234
Unavailable
25
SPRING,LH R.SUSP. Substituted by 7041248-067
7041248
Unavailable
26
SPRING,RH R.SUSP. Substituted by 7041249-067
7041249
Unavailable
27
ROD
5130762
Unavailable
28
ROLLER, SPRING ADJ.
5431168
Unavailable
29
ARM,PIVOT,SHOCK,BLK.
1540714-067
$33.33
30
SPACER,SHOCK(.610)
5020622
Unavailable
30
SPACER,SHOCK(.610)
5020622
Unavailable
31
BUSHING,SHOCK,(2.07 IN.)
5020623
Unavailable
32
BOLT(10)
7515514
$7.19
33
NUT-LOCK(10)
7542439
$1.49
34
BOLT(10) Substituted by 7512492
7515458
Unavailable
35
WASHER(10)
7552603
$1.49
