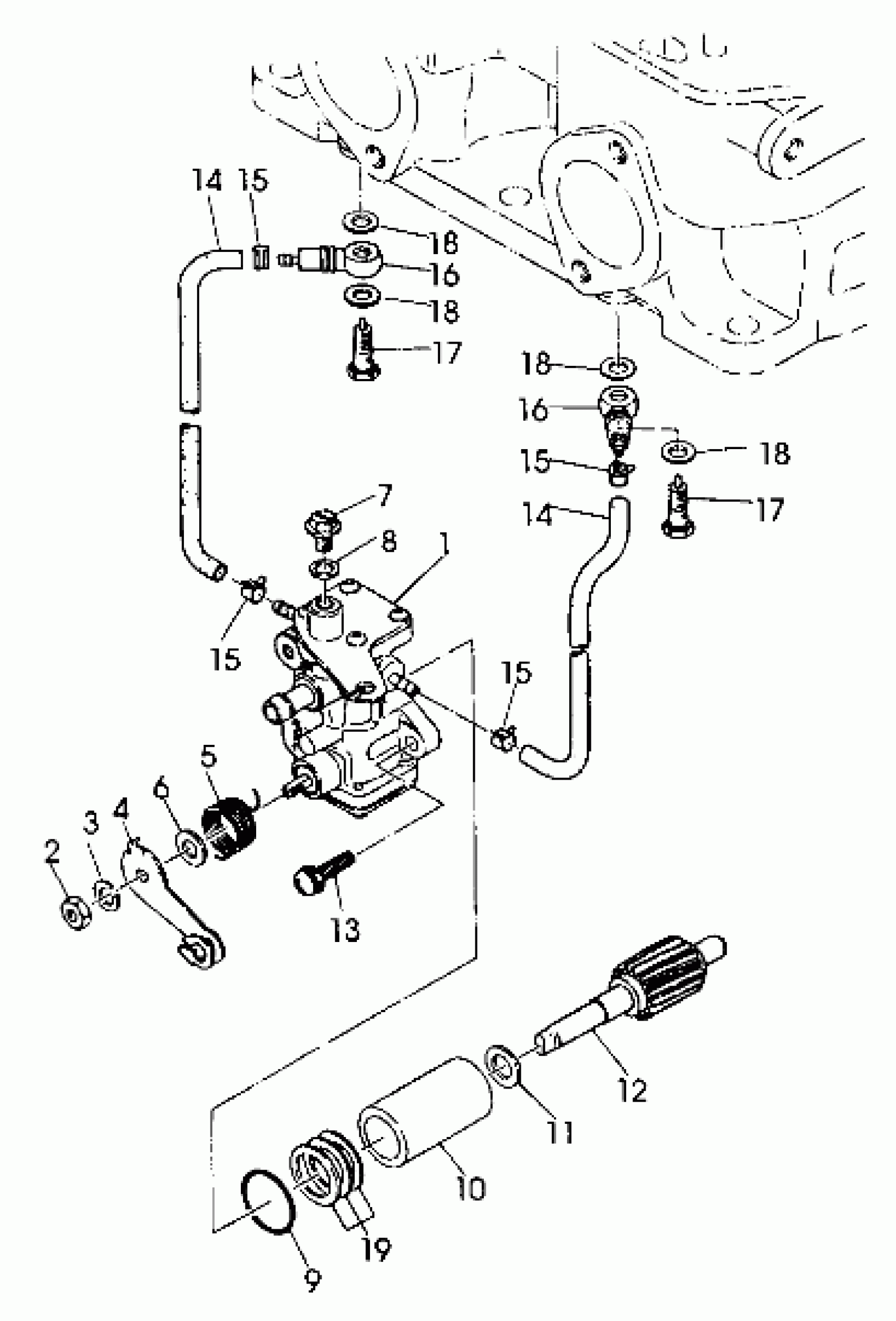

Polaris 440 XCR - 0921760 OIL PUMP 440 XCR (4921352135041A) Diagram
#
Description
Price
1
PUMP, OIL (Incl. 2-9)
3083964
Unavailable
2
NUT(10)
3083120
$3.19
3
WASHER-SPRING(10)
3083121
$299.99
4
LEVER, CONTROL
3083965
Unavailable
5
SPRING-RETURN
3083123
Unavailable
6
COLLAR, CAMSHAFT(10)
3083445
$2.39
7
SCREW-AIR VENT
3083125
Unavailable
8
PACKING(10)
3083126
$4.03
9
O RING
3083127
Unavailable
10
BUSHING(OIL PUMP)
3083353
$31.99
11
SPACER
3083130
$1.59
12
GEAR,SMALL,OIL PUMP
3083131
$89.99
13
SCREW&WASHER,(10)
3083783
$2.39
14
PIPE,RUBBER(L=145)
3083534
Unavailable
14
PIPE,RUBBER(L=145)
3083534
Unavailable
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
15
CLAMP-HOSE,(10)
3083141
$1.49
16
VALVE, CHECK
3083894
Unavailable
16
VALVE, CHECK
3083894
Unavailable
17
BOLT-BANJO
3083137
Unavailable
17
BOLT-BANJO
3083137
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
18
WASHER(10) Substituted by 7555998
3083138
Unavailable
19
SPACER #3
3083673
Unavailable
19
SPACER #2
3083672
Unavailable
19
SPACER #1
3083671
Unavailable
