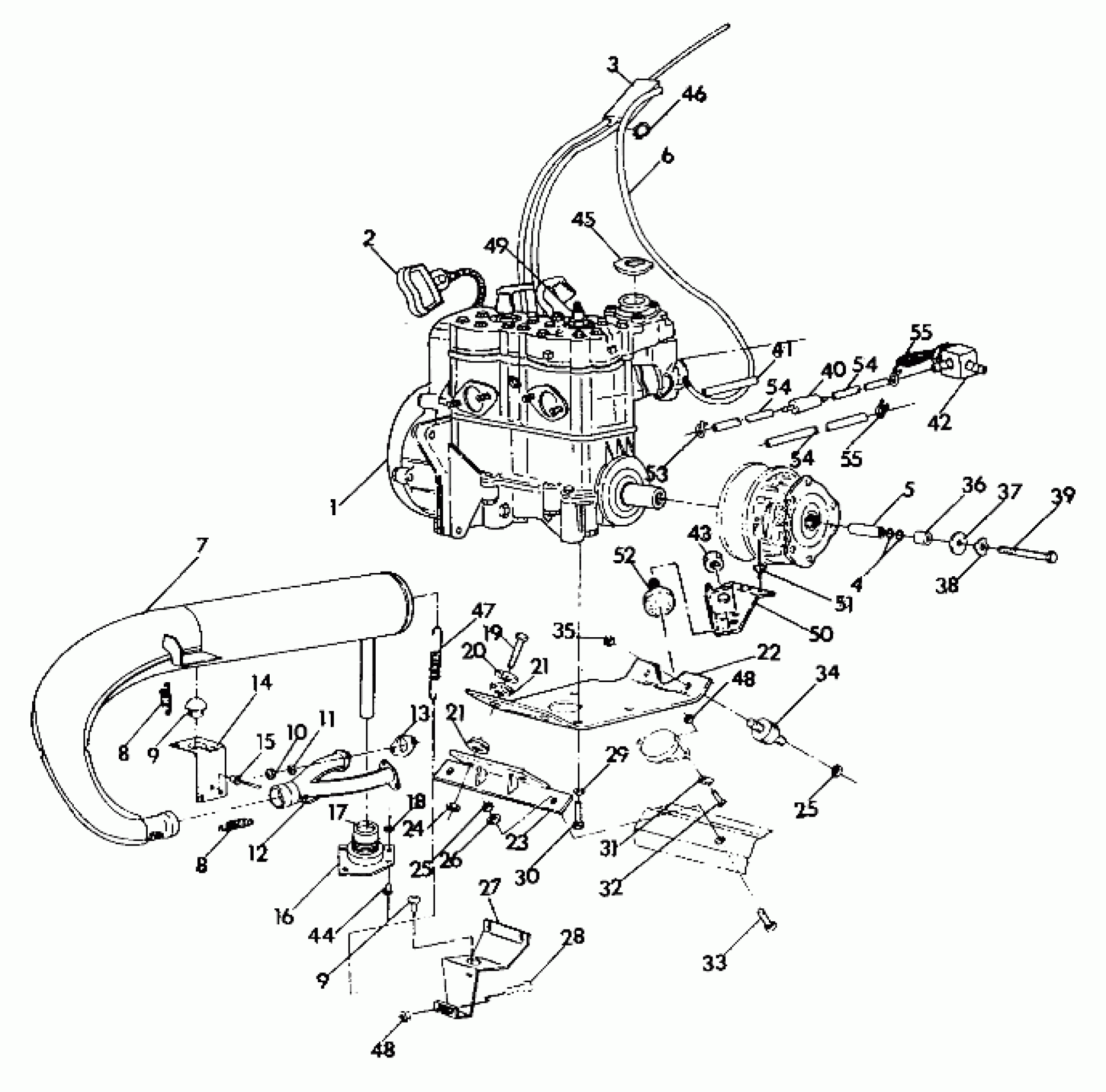

Polaris 440 XCR - 0921760 ENGINE MOUNTING 440 XCR (4921352135031A) Diagram
#
1
ENG.EC45PL-01 Substituted by 1211491
1201461
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE
7080373
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
7
MUFFLER Substituted by 1260562-029
1260562
Unavailable
8
SPRING, EXHAUST(10)
7042031
$5.65
8
SPRING, EXHAUST(10)
7042031
$5.65
9
DAMPNER, VIB.
5410467
$8.79
9
DAMPNER, VIB.
5410467
$8.79
10
NUT(10)
3080285
Unavailable
11
WASHER LOCK ,(10)
3080530
$3.19
12
Manifold
1260501-029
$87.99
13
GASKET, EXHAUST
3083770
Unavailable
14
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
HAT, EXHAUST Substituted by 5432465
5431058
Unavailable
17
Boot, Exhaust
5410502
$24.27
18
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
19
SCREW(10)
7512533
$1.75
20
WASHER(10)
7555740
$1.59
21
MOUNT, ENGINE
5410390
Unavailable
21
MOUNT, ENGINE
5410390
Unavailable
22
PLATE,ENG.MT.
5222169
Unavailable
23
MOUNT,MOTOR,BLK.
1011587-067
Unavailable
24
NUT, LOCK,(10)
7542503
$10.39
25
NUT-LOCK(10)
7542439
$1.49
25
NUT-LOCK(10)
7542439
$1.49
26
WASHER(10) Substituted by 7555806
7555720
$0.79
27
BRKT,REAR MUFFLER Substituted by 5224701-067
5222153-067
Unavailable
28
BOLT(10)
7512193
$2.39
29
WASHER LOCK(10)
7553101
$3.99
30
BOLT(10)
7512539
$3.99
31
SPEED NUT(10)
7670021
$6.99
32
BOLT-CARRIAGE(10)
7512263
$3.99
33
BOLT(10)
7512457
$3.99
34
MOUNT
3110022
Unavailable
35
NUT LOCK(10)
7542411
$3.19
36
BUSHING-.437 X.770 X.50
5430261
$7.19
37
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
38
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
39
BOLT(10)
7512565
$19.99
40
FILTER FUEL,(10)
2530008
$4.84
41
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
42
VALVE,FUEL SHUT-OFF
7052039
Unavailable
43
NUT, JAM(10)
7542432
$3.99
44
POP RIVET(50)
7621418
$1.49
45
CAP, PRESSURE
2511155
Unavailable
46
CLIP(10)
7080278
$2.63
47
SPRING-EXHAUST(10)
7042029
$4.84
48
NUT-LOCK(10)
7542122
$1.49
48
NUT-LOCK(10)
7542122
$1.49
49
SPARKPLUG(8) (RN2C Champ)
3070165
$3.99
50
BRACKET,TORQUE LIMITER Substituted by 1012048-067
1011741-067
$38.71
51
RIVET Substituted by 7661638
7661625
$1.19
52
STOP
3110023
Unavailable
53
CLAMP-HOSE(10)
7080134
Unavailable
54
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
54
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
54
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
55
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
55
SPARKPLUG, B8ES(10) (B8ES)
3070161
Unavailable
55
SPARKPLUG, B9ES(10) (B9ES)
3070162
Unavailable
55
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
55
SPARKPLUG, B8ES(10) (B8ES)
3070161
Unavailable
55
SPARKPLUG, B9ES(10) (B9ES)
3070162
Unavailable
