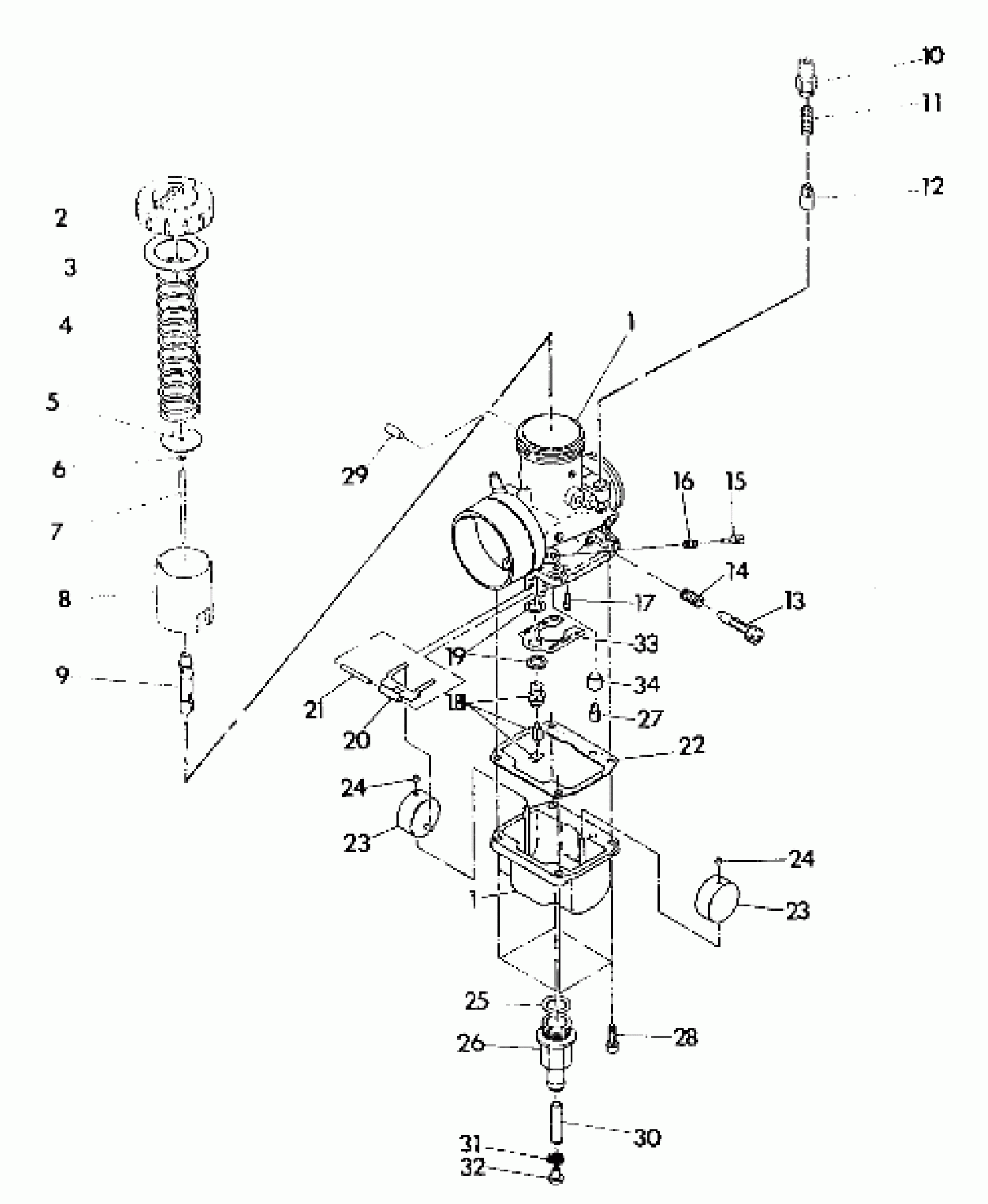

Polaris 440 XCR - 0921760 CARBURETOR 440 XCR (4921352135043A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-32)
3130458
Unavailable
1
CARBURETOR (Incl. 2-32)
3130458
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE Substituted by 3130444
3130334
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
NEEDLE,JET,(6F9-3)
3130378
Unavailable
8
VALVE, THROTTLE,2.5
3130454
Unavailable
9
JET,NEEDLE,P-8
3130382
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW, AIR Substituted by 3130011
3130451
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#40(10)
3130067
$10.99
18
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
19
PACKING(10)
3130017
$4.03
20
ARM,FLOAT
3130048
Unavailable
21
PIN, FLOAT Substituted by 3130361
3130235
$8.89
22
GASKET,FLOAT CHAMBER
3130236
$12.13
23
FLOAT ASM
3130021
$40.46
23
FLOAT ASM
3130021
$40.46
24
CAP,(10)
3130237
$4.03
24
CAP,(10)
3130237
$4.03
25
O RING
3130239
Unavailable
26
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
27
JET,MAIN,HX.HD#270(10)
3130130
$7.27
28
SCREW
3130056
$3.19
29
CAP,VACUUM FIT
3130379
$6.63
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
31
CLAMP-HOSE,(10)
7080236
$1.59
32
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
33
PLATE
3130243
Unavailable
34
RING,CARB
3130232
Unavailable
