BRAKE and CHAINCASE 440 XCR (4921352135021A)

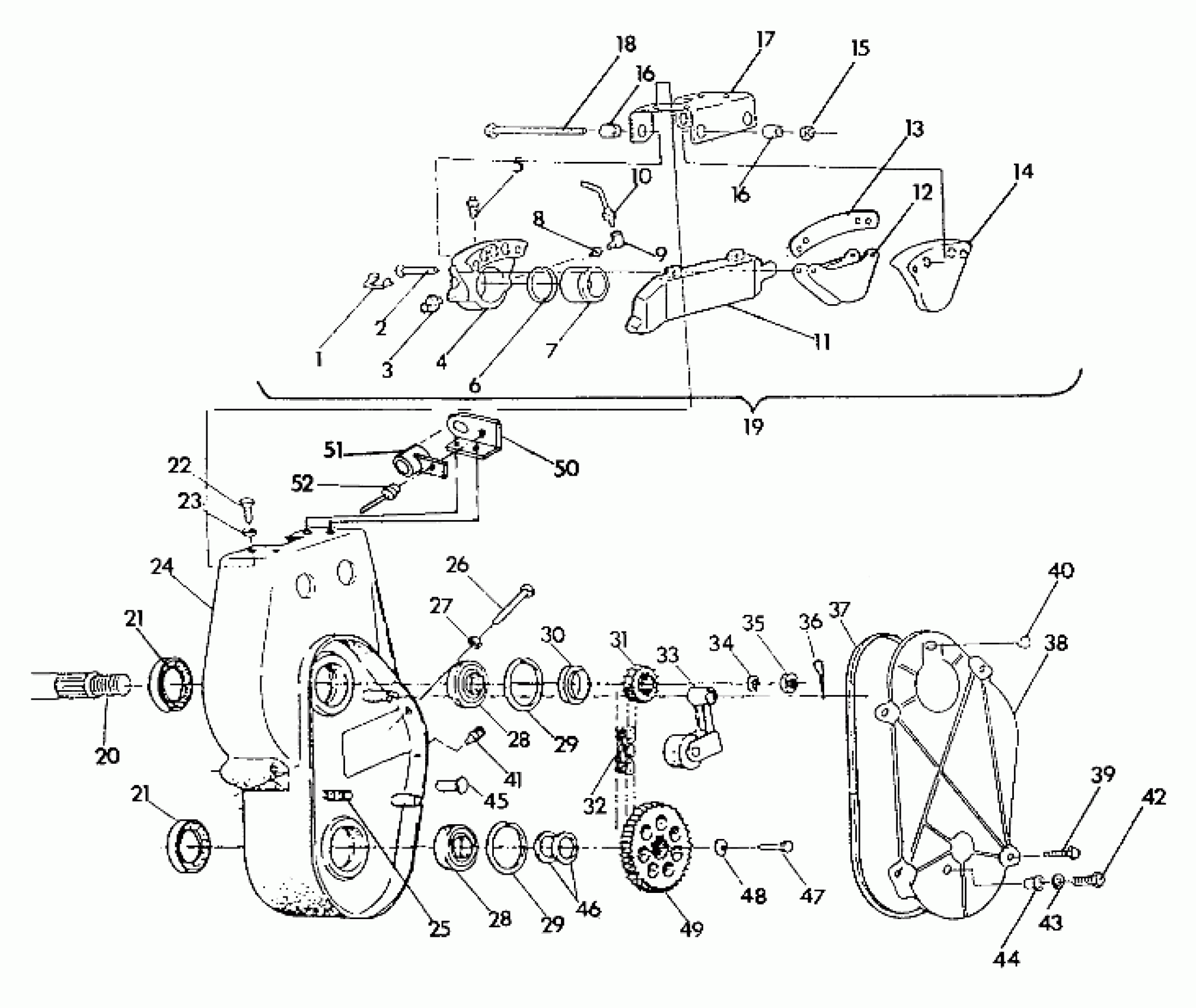

Polaris 440 XCR - 0921760 BRAKE and CHAINCASE 440 XCR (4921352135021A) Diagram
#
1
CLIP-SPRING
1930562
Unavailable
2
PIN,PAD RETAINING
1930563
Unavailable
3
SWITCH-STOPLIGHT
4110046
Unavailable
4
CALIPER ASM, BRAKE
1930556
Unavailable
5
SCREW-BLEEDER
1930564
Unavailable
6
SEAL-PISTON
1930567
Unavailable
7
PISTON
1930568
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
LINE,BRAKE
1930692
Unavailable
11
COOLER-BRAKE
2511154
$53.59
12
PAD, BRAKE
1930569
Unavailable
13
SPACER
5210999
Unavailable
14
CASTING-CARRIER
1930570
Unavailable
15
NUT
1930558
Unavailable
16
BUSHING
1930559
Unavailable
16
BUSHING
1930559
Unavailable
17
BRACKET
5223986
Unavailable
18
BOLT-BRIDGE
1930561
Unavailable
19
CALIPER BRAKE UNIT (Incl. 1-17)
1930587
Unavailable
20
JACKSHAFT ASM.
1332135-067
Unavailable
21
SEAL-OIL
3610030
$20.22
21
SEAL-OIL
3610030
$20.22
22
BOLT(10)
7512240
$3.99
23
WASHER, SPLIT LOCK(10)
7552804
$3.19
24
CHAINCASE
5130795
Unavailable
25
BOLT(10)
7515477
$34.99
26
SCREW(10)
7515511
$3.99
27
NUT(10)
7542404
$1.59
28
BEARING,CHAINCASE
3514306
Unavailable
28
BEARING,CHAINCASE
3514306
Unavailable
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
29
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
30
SPACER, SPROCKET
5010270
Unavailable
31
SPROCKET 21 T
3221035
Unavailable
32
CHAIN 66 PITCH
3224024
Unavailable
33
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
34
WASHER, SLOTTED(10)
7571620
$7.19
35
NUT, SLOTTED(10)
7542810
$3.19
36
COTTER PIN(10)
7661401
$1.49
37
GASKET-CHAINCASE
5410277
$24.99
38
COVER
5130817
$33.33
39
SCREW(10)
7512242
$2.39
40
PLUG(10)
7051520
$8.79
41
PLUG, MAGNETIC
7051518
$12.35
42
SCREW(10)
7511909
$3.99
43
WASHER, FLAT(10)
7558201
$5.79
44
NUT-WELL(10)
7541918
Unavailable
45
CAP, STUD COVER
5020569
Unavailable
46
WASHER SPECIAL(10)
7556509
$1.59
47
SCREW(10)
7515350
$3.97
48
WASHER(10)
7571618
$6.39
49
SPROCKET 39 T
3222034
Unavailable
50
BRKT.
5222802
Unavailable
51
GUIDE, RECOIL
5431385
$10.51
52
SPROCKET 19 T
3221034
Unavailable
52
CHAIN 64 PITCH
3224023
Unavailable
52
SPROCKET 35 T
3222036
Unavailable
52
RIVET,(50)
7621477
$1.19
52
SPROCKET 17 T
3221033
Unavailable
52
SPKT, 20T
3221053
Unavailable
