SEAT and GAS TANK ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 (4929032903A008)

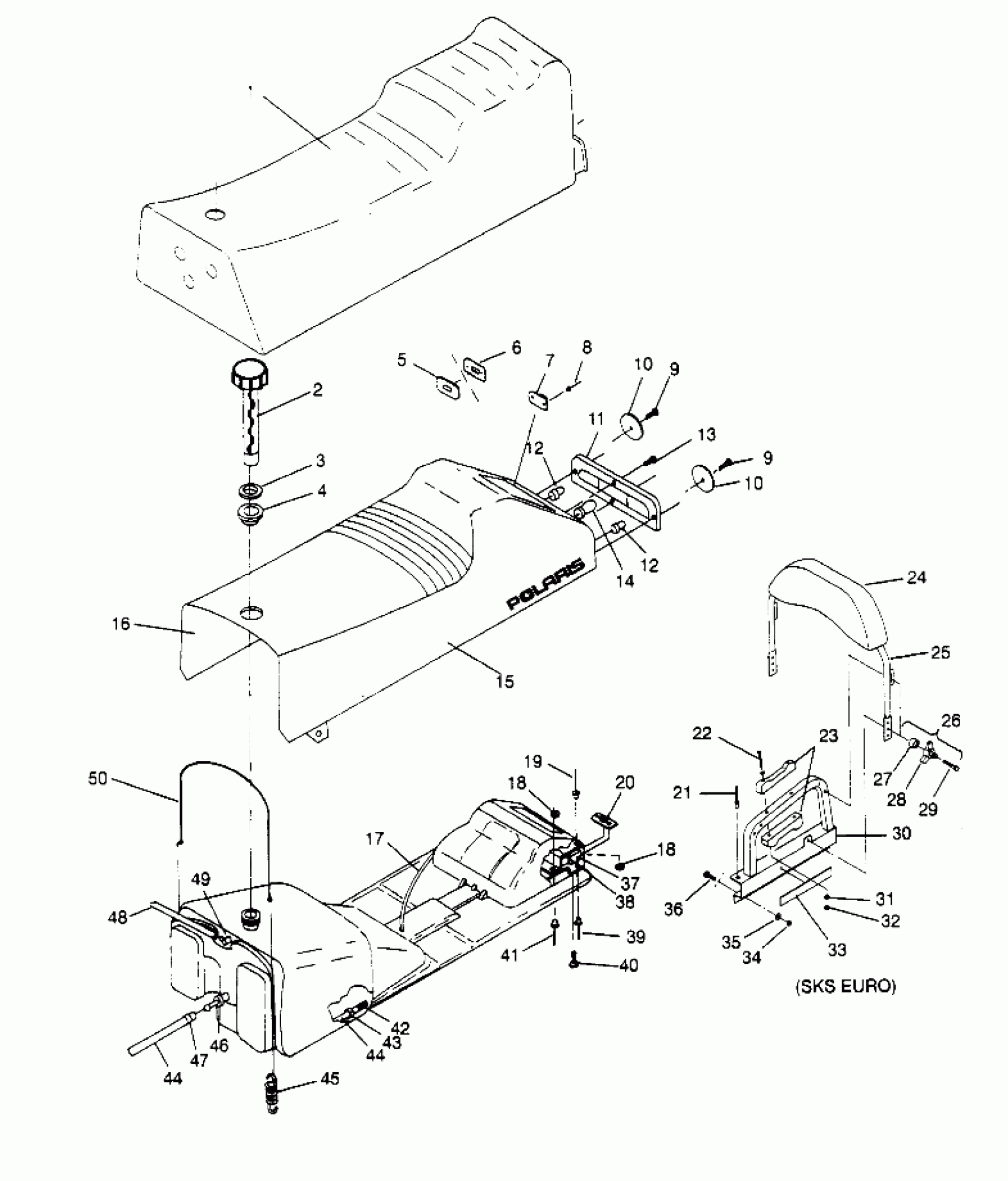

Polaris 440 L/C - 0952760 SEAT and GAS TANK ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 (4929032903A008) Diagram
#
1
SEAT ASM, 2-UP (EURO)
2681751
Unavailable
1
COVER,SEAT,2-UP (EURO)
2681752
Unavailable
2
CAP,GAS,W/GAUGE
2511248
$44.51
3
GASKET, GAS CAP
5810513
$8.89
4
GROMMET,FUELTANK
5410815
Unavailable
5
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
6
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
7
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
8
RIVET(50)
7621339
$1.49
9
SCREW(10) (European)
7511856
Unavailable
9
SCREW(10) (European)
7511856
Unavailable
10
REFLECTOR (European)
5430781
Unavailable
10
REFLECTOR (European)
5430781
Unavailable
11
LENS,TAILLIGHT
5430423
Unavailable
12
BULB,TAILLIGHT(10)
4030024
$4.84
12
BULB,TAILLIGHT(10)
4030024
$4.84
13
SCREW(10)
7511840
Unavailable
14
Bulb, Brakelight
4030045
Unavailable
15
COVER,SEAT,(440 L/C) (440)
2681758
Unavailable
15
COVER,SEAT,LONG (SKS)
2681761
Unavailable
16
SEAT ASM,(440 L/C) (440) (Incl. 12-17, 40, 37, 42-44, 46, 49, 50)
2681759
$399.99
16
SEAT ASM, LONG (SKS) (Incl. 12-17, 40, 37, 42-44, 46, 49, 50)
2681760
$416.99
17
HARNESS,TAILLIGHT
2460398
Unavailable
18
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
18
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
19
RIVET, BLIND(50)
7621467
$1.49
20
NUT,RETAINER-WELD.(10)
7542147
$17.59
21
RIVET,INTERLOCK,B(50) (Euro)
7661638
$1.49
22
SCREW(10) (Euro)
7510504
$6.76
23
GRIP, HAND Substituted by 5433383 (Euro)
5431015
$19.68
24
COVER,BACKREST ASM. Substituted by 2681265 (EURO)
2681790
Unavailable
25
ASM., BACKREST (EURO)
2681356
$284.75
26
KNOB ASM,BACKREST (EURO)
2670130
Unavailable
27
SPACER (Euro)
5431285
Unavailable
28
KNOB, BACKREST (EURO)
5630386-067
$20.22
29
SCREW(10) (EURO)
7515352
Unavailable
30
BAR,GRAB,LH,BLK. (EURO)
1011729-067
Unavailable
30
BAR,GRAB,RH,BLK. (EURO)
1011730-067
Unavailable
31
WASHER(10) (Euro)
7555783
$3.99
32
NUT, LOCK(10) Substituted by 7541925 (Euro)
7541929
Unavailable
33
REFLECTOR RED (Euro)
2670070
$9.91
34
NUT, NYLOK(10) (EURO)
7542327
$4.79
35
WASHER(10) Substituted by 7558402 (EURO)
7555770
Unavailable
36
BOLT(10) Substituted by 7512325 (Euro)
7515363
Unavailable
37
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
38
COVER,T/L PROTECTOR
5431436
$21.43
39
RIVET(50)
7621301
$3.99
40
SCREW(10)
7512242
$2.39
41
RIVET(50)
7621460
$1.49
42
DESC NOT_AVAILABLE
7052081-37
Unavailable
43
RING, COMPRESSION(10)
7080402
$1.60
44
DESC NOT_AVAILABLE
8450003-600
Unavailable
44
DESC NOT_AVAILABLE
8450003-600
Unavailable
45
SPRING-EXHAUST(10)
7042029
$4.84
46
FITTING - OUTLET(10)
7052023
$24.99
47
CLAMP, HOSE
7080490
Unavailable
48
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
49
FITTING,90 DEG,1/8,(10)
7052095
$4.79
50
CABLE,TANK RETENTION
7080473
Unavailable
