HOOD - HEADLIGHT ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 S (4929032903A013)

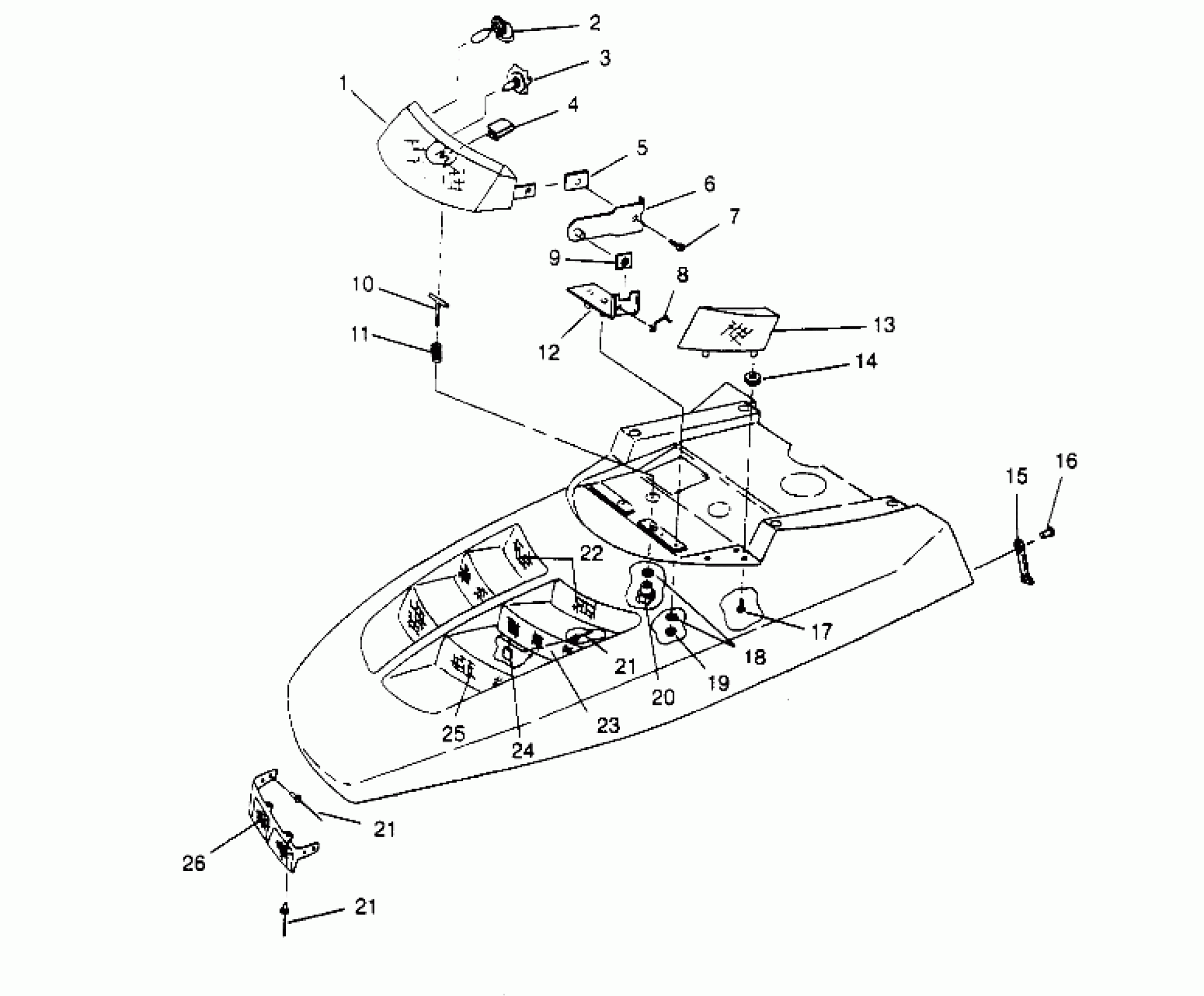

Polaris 440 L/C - 0952760 HOOD - HEADLIGHT ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 S (4929032903A013) Diagram
#
Description
Price
1
H/L ASM,3-BULB (Incl. 2, 3)
2431008
$111.99
2
BULB,HI-BEAM
4030048
$29.03
3
BULB,QUARTZ.H/L,INDY
2870448
$24.99
4
FASTENER-U TYPE CLIP
7670040
$3.99
5
NUT, SPEED(10)
7670057
$1.49
6
MOUNT,WELD,H/L,BLK. Substituted by 1011944-067
1011944
Unavailable
7
BOLT(10)
7515107
Unavailable
8
RETAINER,LH,WIRE
5224493
$2.22
8
RETAINER,RH,WIRE
5224501
Unavailable
9
PIVOT,HEADLIGHT
5431549
Unavailable
10
BOLT,TEE ADJUSTER Substituted by 7517746
7515135
$24.99
11
SPRING,H/L.ADJ.
7041308
$3.19
12
BRKT,LH,H/L MT.,BLK.
1011984-067
Unavailable
12
BRKT,RH,H/L MT.,BLK.
1011985-067
Unavailable
13
LENS,LH,CLR.REFLECTOR
5431855
Unavailable
13
LENS,RH,CLR.REFLECTOR
5431856
Unavailable
14
GROMMET
5410770
Unavailable
15
STRAP,HOODLATCH
5431501
Unavailable
16
RIVET,(50)
7621601
Unavailable
17
SCREW(10) Substituted by 7512048
7511953
Unavailable
18
WASHER(10)
7558301
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
KNOB,H/L.ADJUST
7080501
Unavailable
21
RIVET(50)
7621339
$1.49
21
RIVET(50)
7621339
$1.49
21
RIVET(50)
7621339
$1.49
22
SCREEN,UP.HD,BLK.
5222908-067
Unavailable
23
SCREEN,CTR.HD,BLK.
5222907-067
Unavailable
24
SPEEDCLIP,'U'TYPE(10) (U-Type)
7670082
Unavailable
25
SCREEN,LOW,BLK. Substituted by 5241350-067
5240950-067
$17.30
26
SCREEN,FR.,BLK.
1012031-067
Unavailable
