FRONT TORQUE ARM ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 S (4929032903B013)

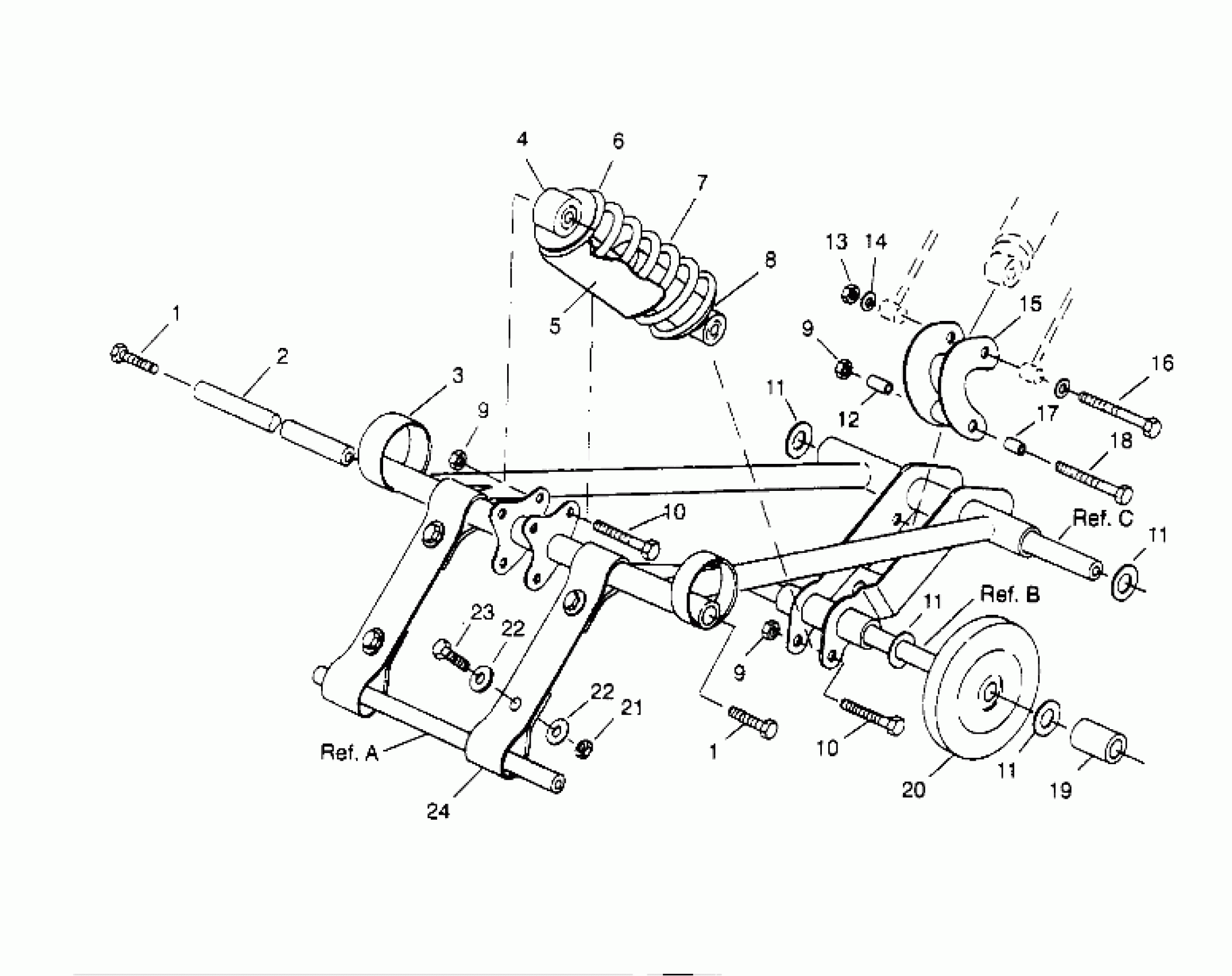

Polaris 440 L/C - 0952760 FRONT TORQUE ARM ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 S (4929032903B013) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,MOUNTING
5010149
Unavailable
3
ARM,FR.TORQUE,BLK.
1540794-067
Unavailable
4
SHOCK,CTR.SUSP.
7041281
Unavailable
5
SHIELD-SPRING
5430671
$24.27
6
RETAINER-TOP
5220225
$10.39
7
SPRING-SHOCK SUSP
7041140
Unavailable
8
SPACER,SHOCK RETAINER(10)
5210953
$6.39
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
10
BOLT(10)
7515415
$1.49
10
BOLT(10)
7515415
$1.49
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
12
BUSHING,PIVOT TUBE
5020561
$1.59
13
NUT FLEX LOC,(10)
7542402
$6.39
14
WASHER(10) Substituted by 7555806
7555720
$0.79
15
SHOCK ARM WELD,BLK.
1540791-067
$55.56
16
BOLT(10)
7515414
Unavailable
17
Spacer
5333028
$1.59
18
BOLT(10)
7515438
$4.79
19
SPACER, OUTER
5332784
Unavailable
20
Asm., Bogie Wheel (See Pg. A24, Ref. 24)
-------
Unavailable
21
NUT-5/16-18 NYLOK-Y
7542324
$1.49
22
WASHER(10)
7555716
$1.59
22
WASHER(10)
7555716
$1.59
23
BOLT(10)
7515307
$3.99
24
STRAP, LIMITER
5410397
Unavailable
