ENGINE MOUNTING 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903C003)

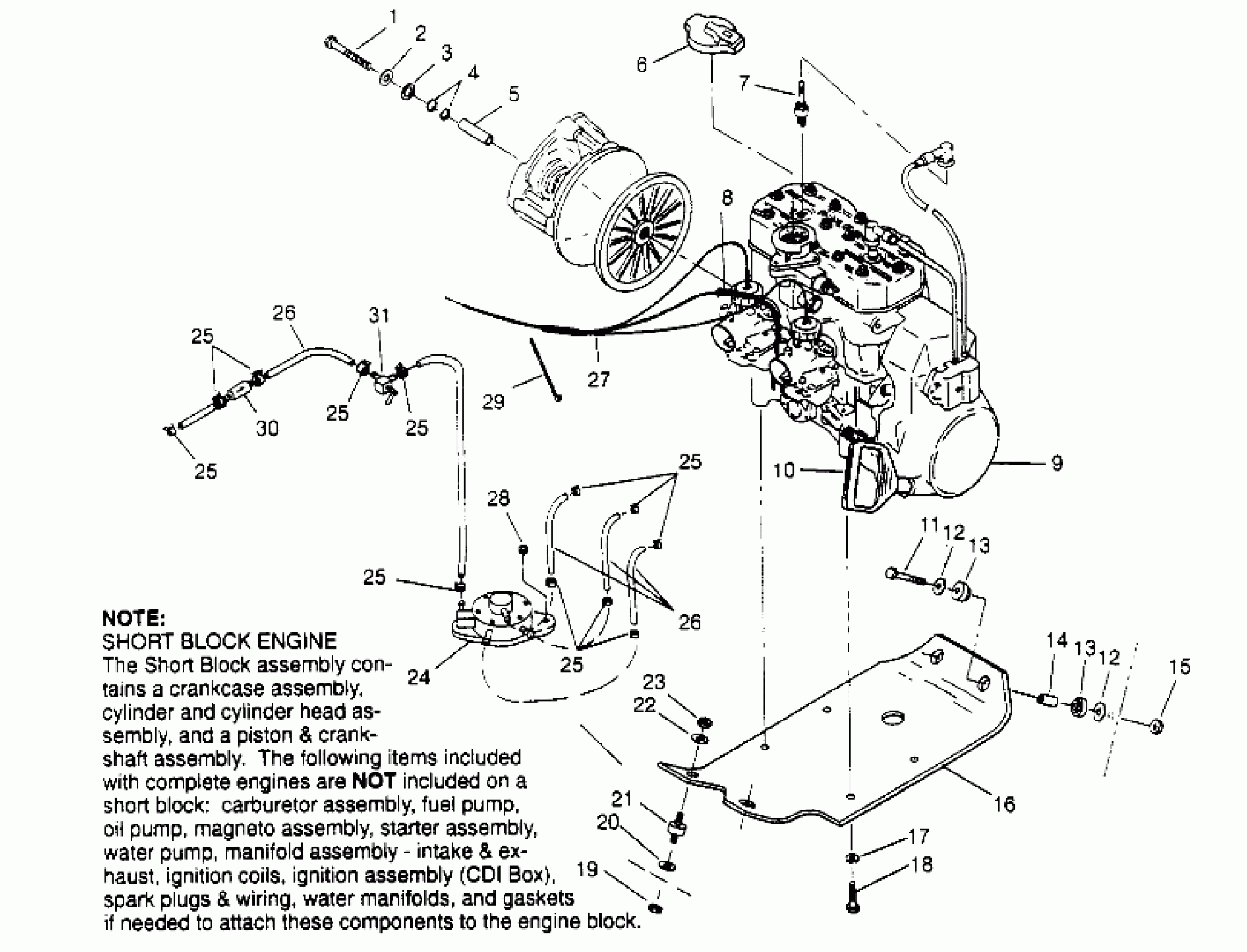

Polaris 440 L/C - 0952760 ENGINE MOUNTING 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903C003) Diagram
#
Description
Price
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE
2511155
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
CONDUIT,CONVOL(26 CM) Substituted by 4010051-30
4010051-26
Unavailable
9
ENG.(S.B.)EC45PL-01/02 [No Longer Available]
3084624
Unavailable
10
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
11
SCREW(10)
7512530
$5.59
12
WASHER(10)
7555740
$1.59
12
WASHER(10)
7555740
$1.59
13
MOUNT, ENGINE
5410390
Unavailable
13
MOUNT, ENGINE
5410390
Unavailable
14
SPACER, (MTR.MT.)
5332778
Unavailable
15
NUT,FLANGE(10)
7542522
$5.59
16
PLATE,ENG.MT.
5222867
Unavailable
17
WASHER LOCK(10)
7553101
$3.99
18
BOLT(10)
7512539
$3.99
19
NUT LOCK(10)
7542411
$3.19
20
WASHER(10)
7555721
$1.49
21
MOUNT
3110022
Unavailable
22
WASHER(10) Substituted by 7555806
7555720
$0.79
23
NUT-LOCK(10)
7542439
$1.49
24
Fuel Pump (See Pg. A38, Ref. 1)
-------
Unavailable
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
CABLE,THROTTLE,W/OIL
7080552
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
FILTER FUEL,(10)
2530008
$4.84
31
VALVE,FUEL SHUT-OFF
7052039
Unavailable
